General Settings
General settings include the basic parameters of the device.
| Parameter | Description |
|---|---|

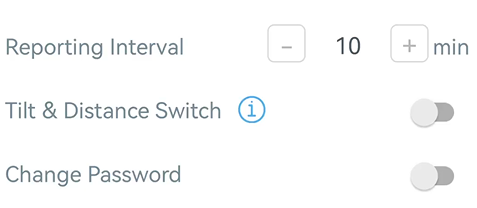

| Reporting Interval |
Reporting interval of transmitting data to server. 30 minutes as default, range: 1~1440 minutes. |
|
Tilt & Distance Switch |
When detecting that the offset angle is greater than 20 degrees, turn off the distance sensor. |
|
Change Password |
Change the password for ToolBox App to write this device. |
| Parameter | Description |
|---|---|

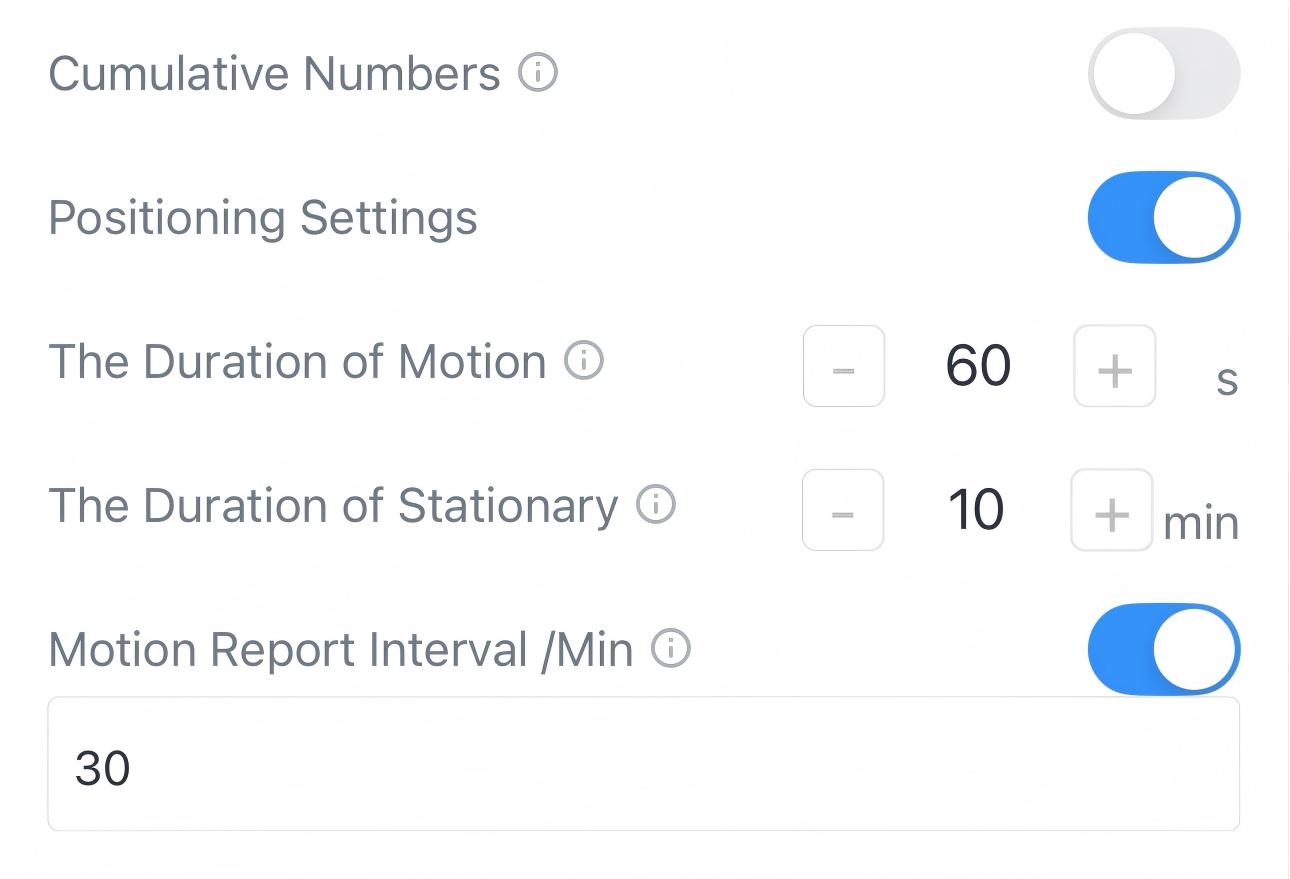

| Cumulative Numbers | Store this number of periodic packets to report together. |
| Positioning Settings | Enable GNSS positioning. When the device is on motion status, it will only upload positioning data instead of distance data. |
| The Duration of Motion | When device is detected to move beyond this duration, it will upload a GNSS data packet. |
| The Duration of Stationary | When device is detected to stop moving beyond this duration, it will upload a GNSS data packet. |
| Motion Report Interval/Min | The interval to report GNSS data during the motion. |
