Installation

Installation Location

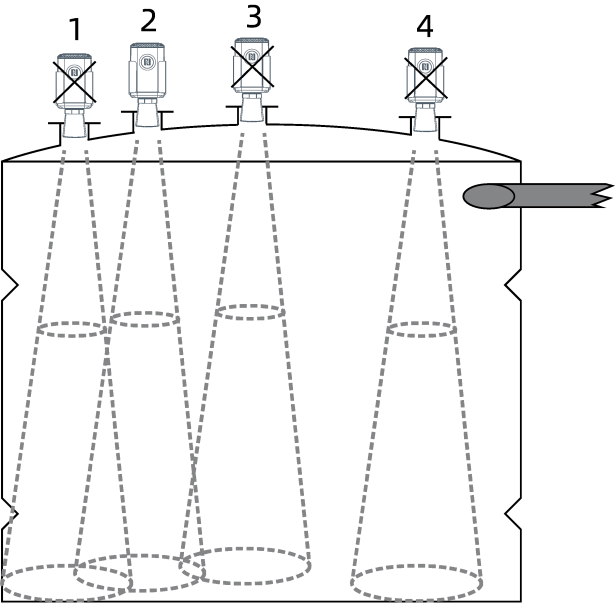

  • The device must sit in a vertical position on top of the object and be fitted such that it has a clear path to the object.
  • Place device where it is far away the side-wall more than 30cm and without internal obstructions that block the ultrasonic signal. (Position 1)
  • Position 2 is the ideal location to install EM500-UDL.
  • Do not place device in the center of arched or circular container tops since it will cause multiple echoes. (Position 3)
  • Do not place the device above the container inlet orifice. (Position 4)


EM500 Transceiver Installation

The transceiver supports wall, pole or DIN rail mounting.
Note: Keep the transceiver away from metal objects and obstacles for better signal.
Wall Mounting
  1. Drill two holes in the wall according to the mounting bracket, then secure the wall plugs into the wall.
  2. Fix the mounting bracket to the wall via screws.
  3. Place the device onto the mounting bracket, then secure it to the bracket with two fixing screws.

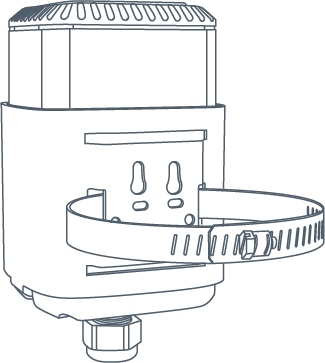

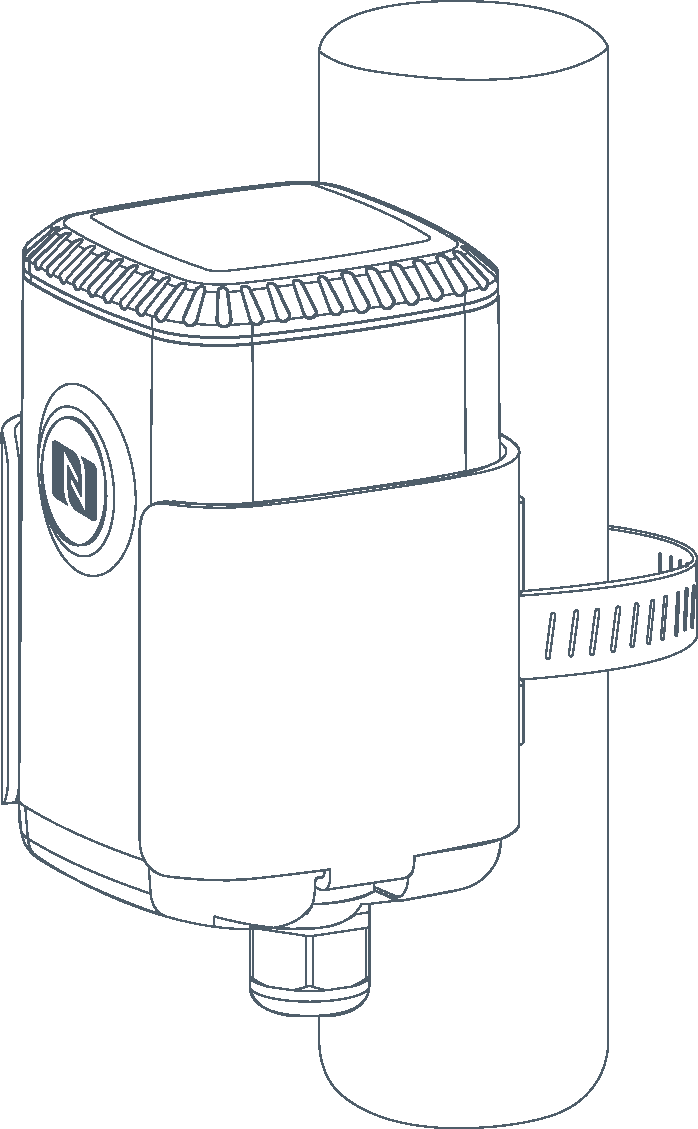

Pole Mounting

Straighten out the hose clamp and slide it through the rectangular holes in the mounting bracket, and wrap the hose clamp around the pole. After that, use a screwdriver to tighten the locking mechanism by turning it clockwise.

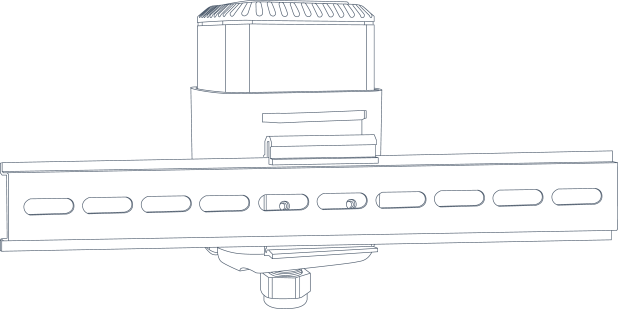

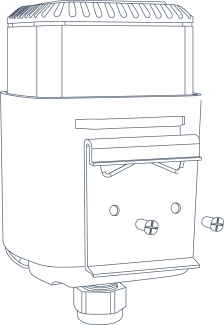

DIN Rail Mounting

Use 2 pcs of M3 × 6 flat head Phillips screws to fix the mount clip to the bracket, and then hang the device on the DIN rail. The width of the DIN rail is 3.5 cm.
