Hardware Introduction
Packing List
 |
 |
 |
 |
|
1 × GS601 Sensor |
4 × Ceiling Mounting Kits |
1 × Type-C Cable (1.2m) & Power Adapter |
1 × PoE Splitter (Optional) |
 |
 |
||
| 1 × Quick Guide |
1 × Warranty Card |
Note: If any of the above items is missing or damaged, please
contact your sales representative.

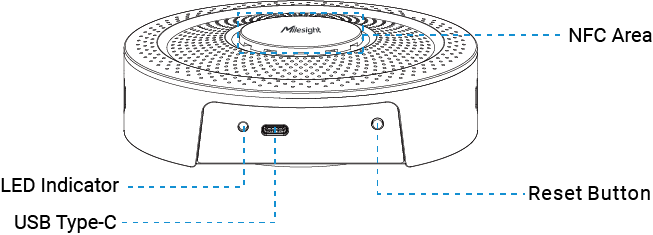

Hardware Overview
Dimensions(mm)
Button and LED Indicator
| Function | Action |
LED Indicator |
|---|---|---|
|
Power ON/OFF |
Connect to the power supply |
Green Light Static On |
|
Disconnect power |
Light Off |
|
| Reboot | Press and hold reset button for more than 3s | Blinks Slowly |
| Reset to Factory Default | Press and hold the power button for more than 10 seconds. | Blinks Quickly |
| Alarm |
When one of the measured values exceeds the threshold |
Red Light Static On |
|
When someone tampers the device |
