Hardware Introduction
Packing List
 |
 |
 |
| 1 × VS34x Device |
4 × PIR Covers |
2 × Mounting Kits |
 |
 |
 |
| 1 × 3M Tape | 1 × Warranty Card | 1 × Quick Start Guide |
Note: If any of the above items are missing or
damaged, please contact your sales representative.

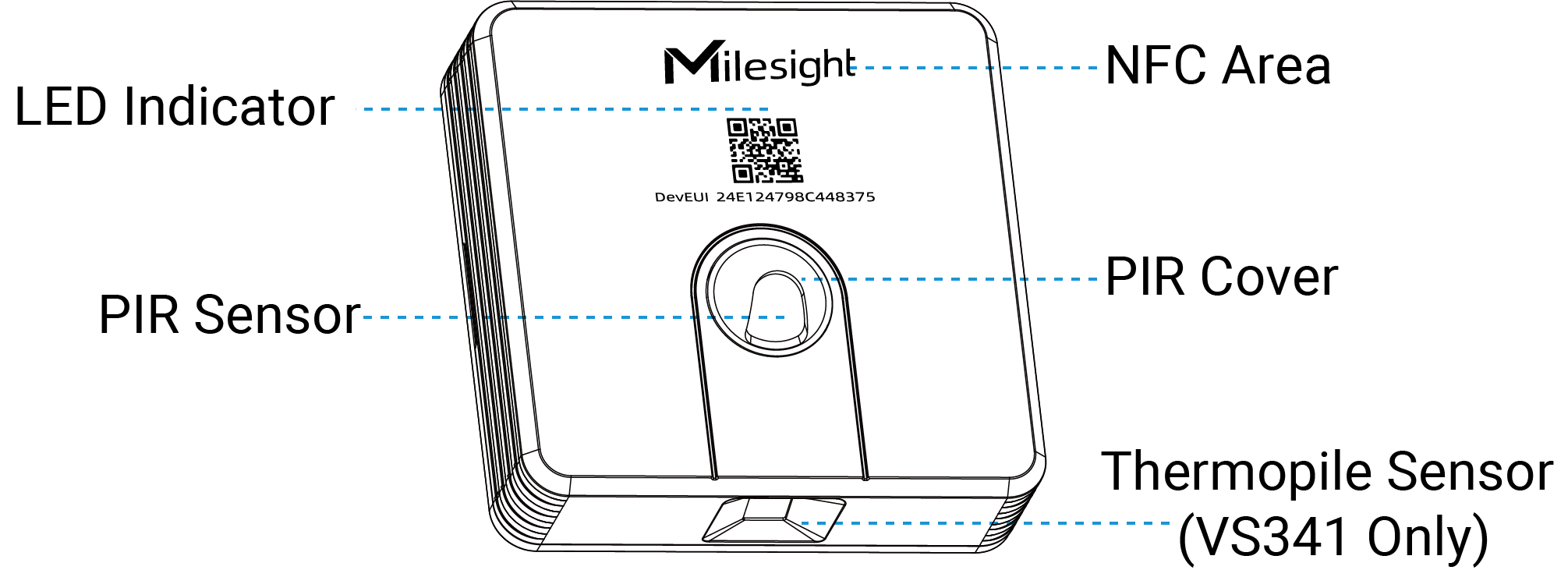

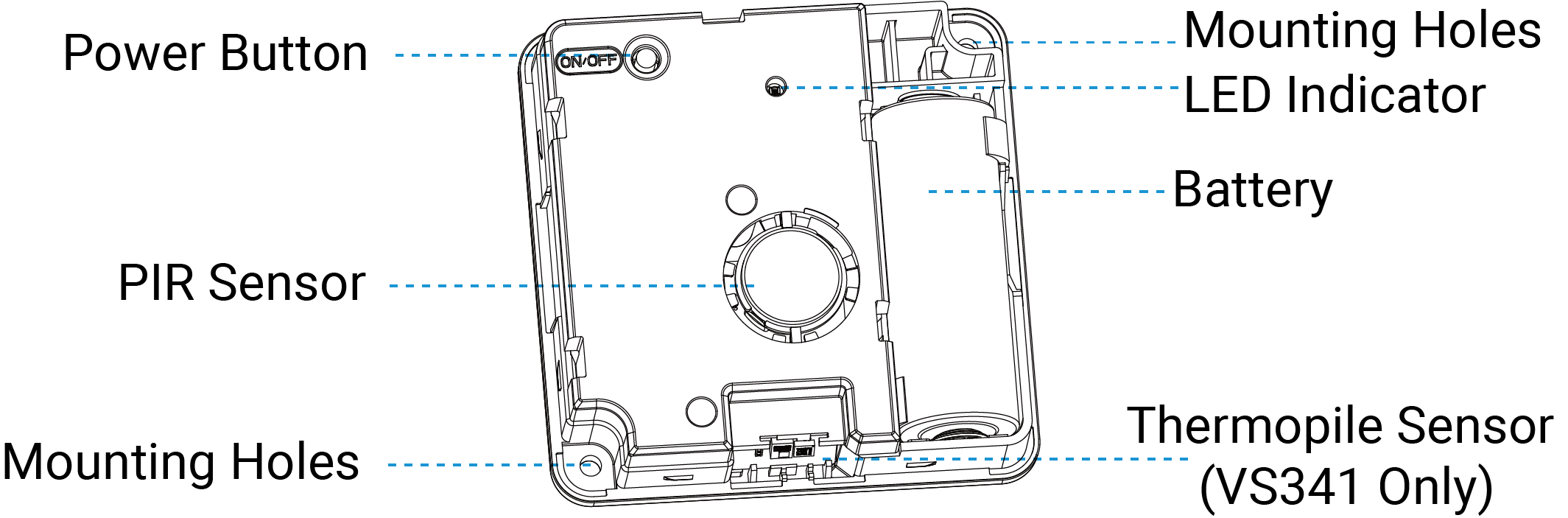

Hardware Overview
Power Button and LED Indicator
| Function | Action | LED Indicator |
|---|---|---|
| Power On | Press and hold the power button for more than 3 seconds. | Off → On |
| Power Off | On → Off | |
| Check On/Off Status | Quick press the power button once. | Green Light On: Device is on. |
| Green Light Off: Device is off. | ||
| Reset to Factory Default | Press and hold the power button for more than 10 seconds. | Green Light Blink quickly |
| Occupancy Status | Vacant → Occupied | Red Light Blinks twice |
| Occupied → Vacant | Green Light Blinks twice |
Dimensions (mm)
