Installation

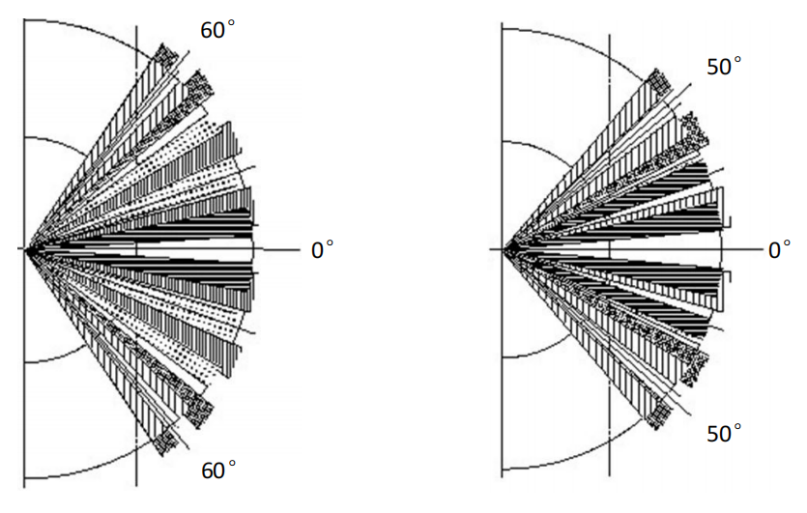

PIR Detection Area

Only when someone passes through different shadow areas, the device will detect the status as Occupied.

Installation Note

  1. Adjust the installation direction according to detection area requirement.
  2. The device can be mounted on a wall or ceiling. It’s recommended to install at 1.5~2.5m from the floor.
  3. Ensure the detection area does not have moving objects like waving trees and fans.
  4. Ensure the detection area is not blocked by curtains or barriers.

Blocking Sticker Paste

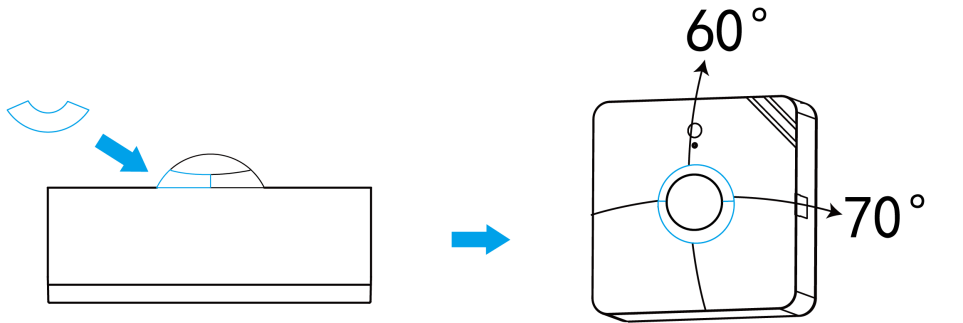

For applications requiring detection angle control, such as work station, in order to prevent accidental detection of people around the station, please paste the blocking stickers on the sensor along the bottom of the PIR lens for range shielding. Each sticker can cover about a 180° range. After paste the stickers along the bottom of the lens and wrapping the sensor 360°, the detection area has changed to 70° Horizontal, 60° Vertical.

Note: The detection area may be affected by manual pasting, potentially introducing errors.


3M Tapes Fix

Note: To ensure the devices are securely installed and prevent them from falling due to adhesive peeling, please strictly adhere to the following requirements:
  1. Install the device on a dry, smooth, sturdy, grease-free wall.
  2. Do not install the device on rough, damp, crumbling, greasy, or wallpapered walls.
  3. Before installation, wipe the wall with a clean cloth to ensure it is free of dust and grease.
  4. After adhering the device to the wall, press firmly to ensure it is fully adhered. Allow 24 hours for the best adhesion results.
  5. If the wall conditions do not meet the above requirements, choose an alternative installation method, such as screw fixation.

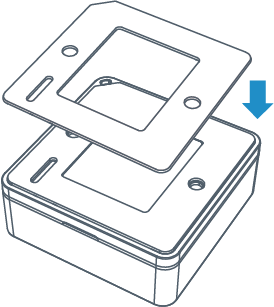

Paste 3M tape to the back of the device, then tear the other side and place it on a flat surface.






Screw Fix

Note:
  1. Wall materials must have sufficient strength and stability to ensure that screws are securely fastened and the overall structure is sturdy.
  2. Screws should be fastened in locations that avoid electrical wiring, water pipes, and other elements within the wall to prevent damage to the wall structure or safety hazards.

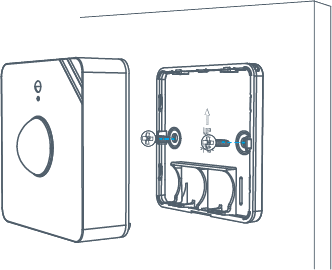

Remove the back cover of the device, screw the wall plugs into the wall and fix the cover with screws on it, then install back the device.
