6.6.1 Access Control

Here you can add third-party access control device, then it supports triggering the corresponding alarm actions based on external device events.

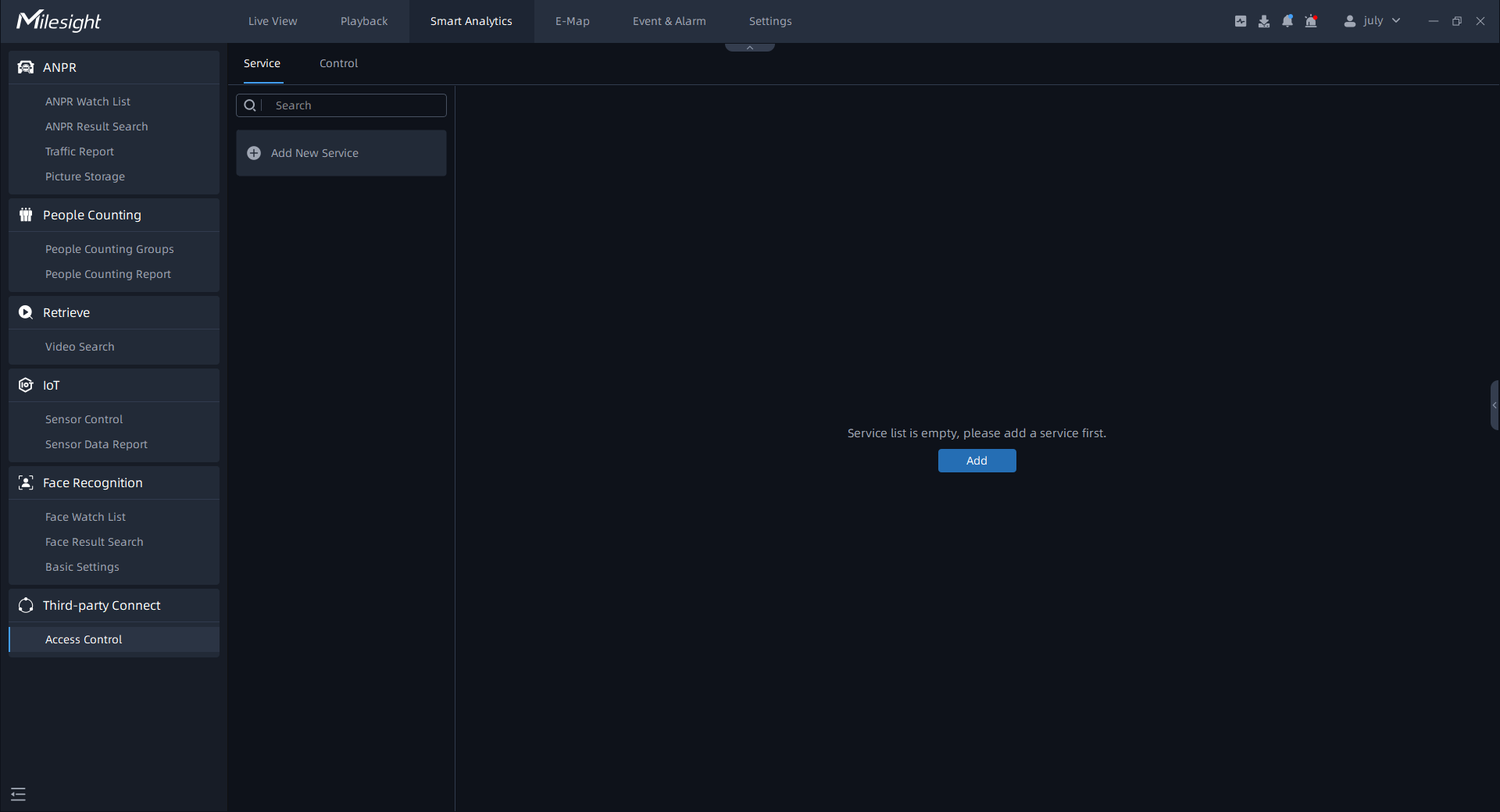

Step1: Click the "Add New Device" button, input the Service Name, Host URL, Port, User Name and Password, and click the "Connect" button to connect to the device successfully.

Note: Currently it only supports the DS-K260X model of Hikvision. If you have compatibility requirements, please contact technical support.

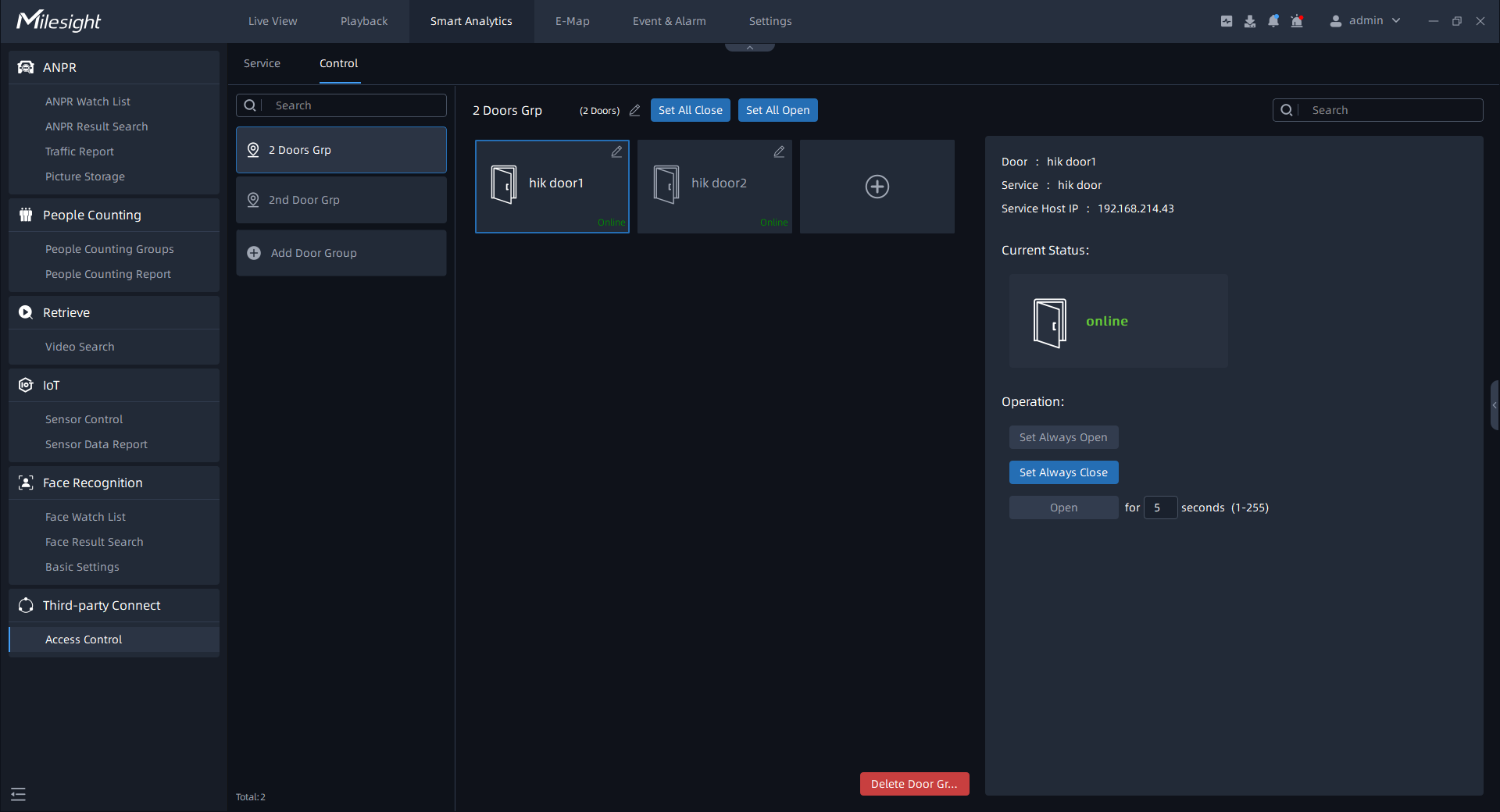

Step2: Go to Settings - Event Rule Settings interface, Click button to add an event rule. Select the event trigger type as Third Party Connect - Access Control, select the door group and the corresponding door, select the trigger condition, set the schedule, and then set the alarm action. Multiple types of action can be set for an event trigger. The meaning of each alarm action can refer to Alarm Action.

Step3: After setting the event rules, click the “Save” button, then the event rule will be added to the event rule list and take effect.
