Powering Options

This chapter describes the powering supply option supported by EG71 gateways. Please select one of the following options to power the gateway.

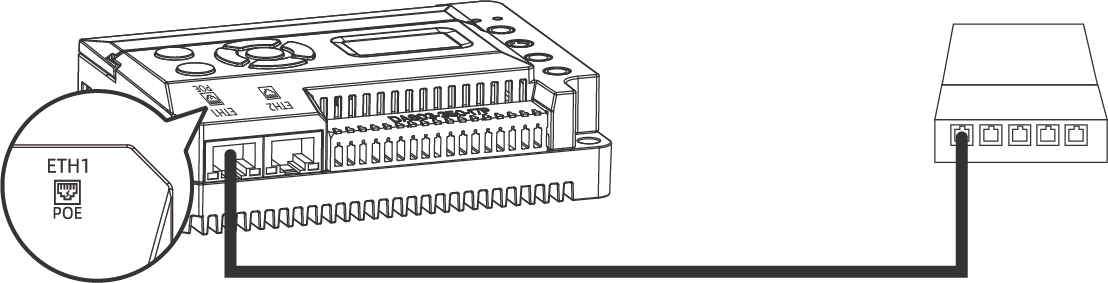

Powered by Active PoE: The ETH1 port can receive power by connecting to an 802.3af standard PoE switch or PoE injector.

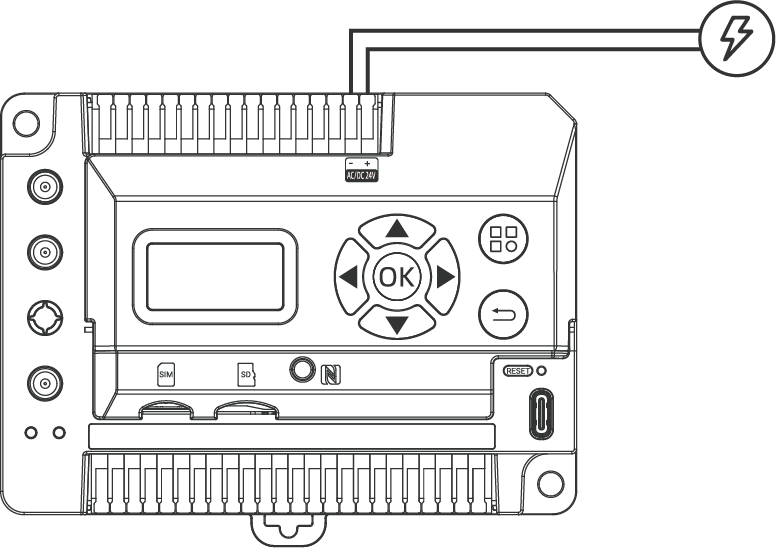

Powered by Power Interface: The gateway can be powered via a 2-pin power interface (24V DC/AC). Click here to view the wiring diagram.

Powered by USB Type-C: The gateway can be powered by a USB Type-C port (5V DC/3A).
Note: When powered via USB, the M-BUS and Universal Inputs will not work properly.

Tip: If multiple power sources are connected at the same time, the device will primarily use power from the power interface, followed by PoE.
