Hardware Introduction

Packing List



1 × AM100(L) Series Sensor	2 × Wall Mounting Kits	1 × 3M Double-Sided Tape	1 × Theft-Deterring Screw

1 × Quick Guide	1 × Warranty Card

Note: If any of the above items is missing or damaged, please contact your sales Representative.

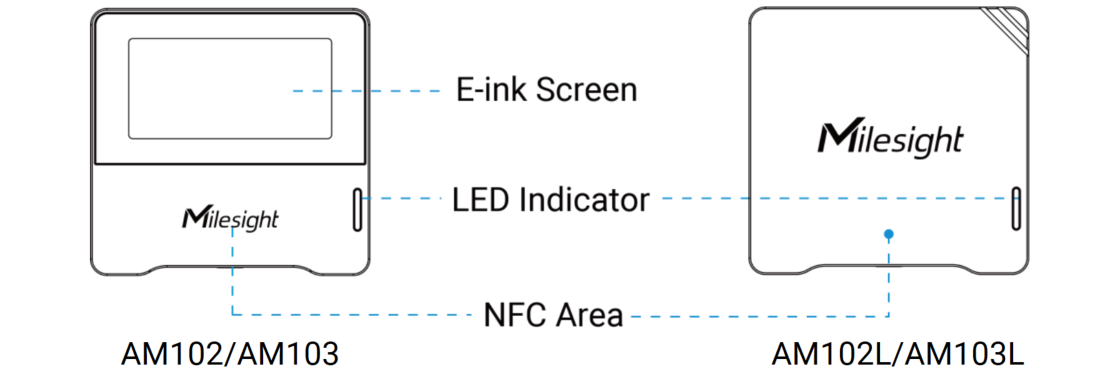

Hardware Overview

E-ink Screen (AM102 Only)


Icon	Description
	Battery level
	The time of the last collected and updated sensor data
	The device has joined the network
	The device has not joined the network
	Temperature
	Humidity

Note:

The device will update data on the screen every 2 minutes if Screen Smart Mode is disabled;
The device will do a full-screen refresh every 30 minutes in order to remove ghosting.
When the device detects the temperature beyond the range from 0°C to 40°C, the screen will close automatically.

Button and LED Indicator


Function	Action	LED Indicator
Power ON/OFF	Press and hold the power button for more than 3 seconds.	Power On: Off → On
Power ON/OFF	Press and hold the power button for more than 3 seconds.	Power Off: On → Off
Reset to Factory Default	Press and hold the power button for more than 10 seconds.	Quickly Blinks
Check On/Off Status	Quickly press the power button once.	Light On: Device is on.
Check On/Off Status	Quickly press the power button once.	Light Off: Device is off.

Dimensions (mm)
