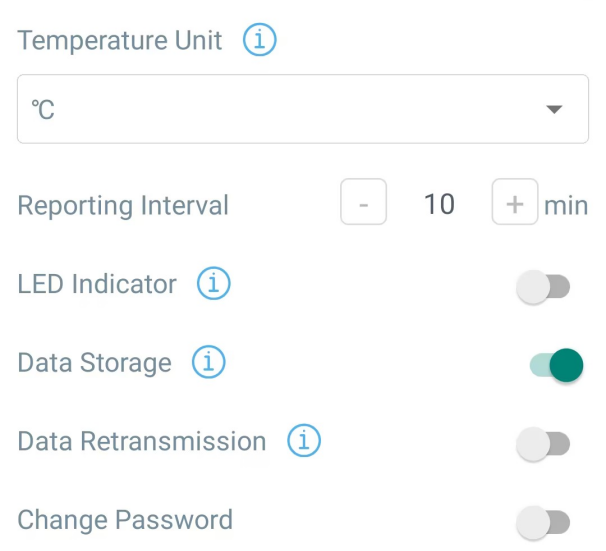

General Settings

General settings include the basic parameters of the device.



Parameter Description
Temperature Unit

Change the temperature unit displayed on the ToolBox and screen.

Note:

  1. The temperature unit in the reporting package is fixed as Celsius(°C).

  2. Please modify the threshold settings if the unit is changed.
Reporting Interval

Reporting interval of transmitting current sensor values to network server. Default: 10 mins, Range: 1-1080 mins.
LED Indicator

Enable or disable the indicator to blink every 13s to indicate the device running well.
Data Storage

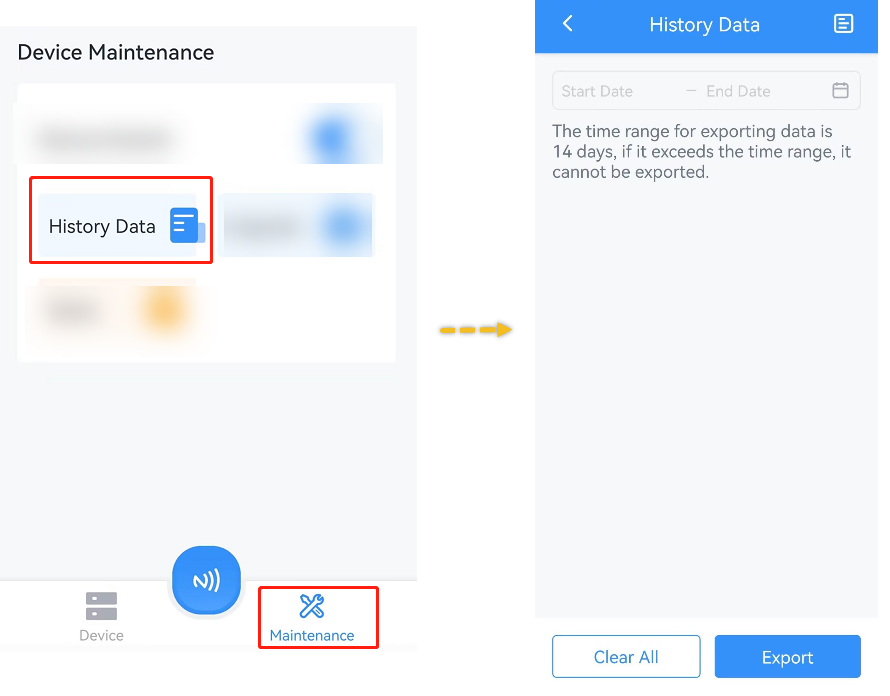

Disable or enable to store periodic report data locally. The stored data can be exported as CSV format file and saved to smartphone via ToolBox.

Note:
  1. It is necessary to sync the time to ensure the data is stored in correct time.
  2. The device will still store the data even the network status is de-activated.
  3. ToolBox App can only export the last 14 days' data at most.
Data Retransmission Disable or enable data retransmssion. When the device detects the network status is de-activated via Rejoin Mode, the device will record a data lost time point and re-transmit the lost data after device re-connects to the network.
Note:
  1. This setting only takes effect when Data Storage is enabled.

  2. If the device is rebooted or re-power when data retransmission is not completed, the device will re-send all retransmission data again after device is reconnected to the network.

  3. If the network is disconnected again during data retransmission, it will only send the latest disconnected data.

  4. The default report data retransmission interval is 600s, this can be changed via downlink command.
  5. The reported format of retransmission data will include timestamps and is different from periodic report data.
  6. This setting will increase the uplink frequencies and shorten the battery life.
Change Password

Change the password for ToolBox App to write this device.

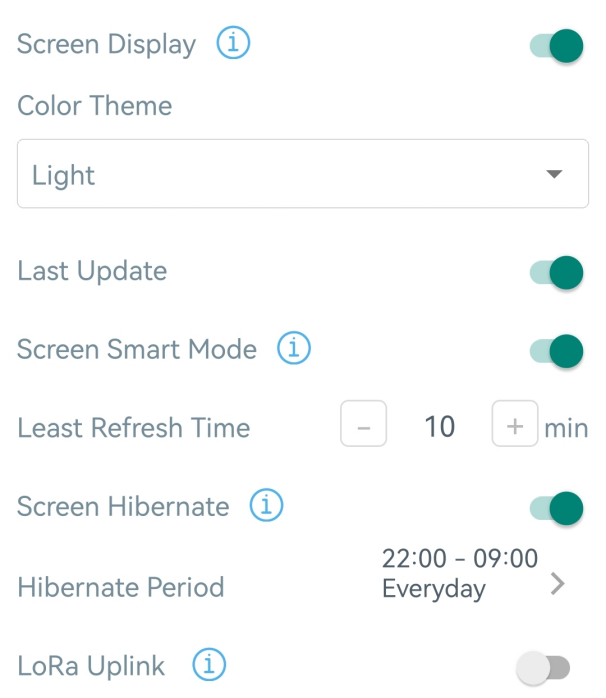

Screen Settings (AM102 Only)

Parameters Description
Screen Display Enable or disable screen display.
Color Theme Select screen display background color as Light or Dark.
Last Update Enable or disable the Last Update time displayed on the screen.
Screen Smart Mode When the new collected value is close to the last value (temperature ≤ ±0.5°C, humidity ≤ ±3%), the screen will stop updating corresponding value to save power.

Least Refresh Time: Set the least time to fresh the screen. Range: 2-1080 mins
Screen Hibernate Enable the screen to hibernate during a time period.

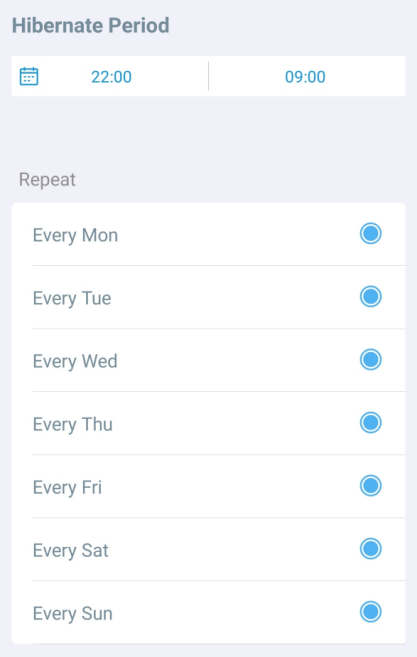

Hibernate Period: Set the period of screen hibernate.

LoRa Uplink: Enable or disable to send LoRaWAN® uplinks during hibernate. It’s disabled by default.
