Basic & Alarm Settings

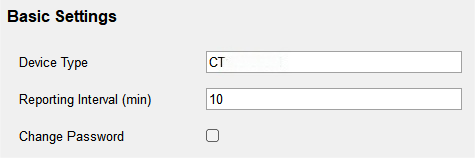

Basic Settings



Parameters Description
Reporting Interval The interval of reporting current data.

Default: 10 mins, Range: 1 - 1440 mins

Note:
  1. It is necessary to meet the minimum reporting current requirement to report properly.
    Reporting Interval CT303 CT305 CT310
    1 min 25A 30A 60A
    10 min 15A 19A 35A

    To measure lower currents, the device must be powered via USB.

  2. If the device does not meet the minimum reporting current requirement, it will enter either low-voltage mode or low-power mode. In low-power mode, the reporting interval is fixed at 30 minutes. In low-voltage mode, the device will stop reporting. The operating mode can be identified by the LED indicator.
  3. If the device meets the minimum reporting current requirement but still enters low-voltage or low-power mode, this indicates that the measured conductor is faulty or has no power. Please inspect and repair it promptly.
Change Password Change the password of the device for ToolBox configuration.

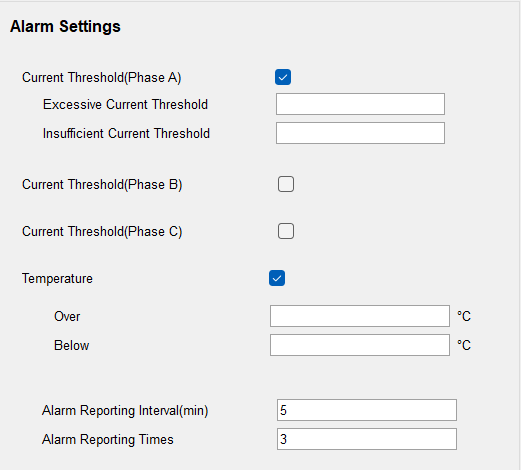

Alarm Settings



Parameters Description
Alarm Reporting Interval (min) The interval to report alarm packet after alarm triggers. This interval should be less than reporting interval.
Alarm Reporting Times Alarm packet report times after alarm triggers.
Current Threshold (Phase x)
Excessive Current Threshold The maximum current threshold value.
Insufficient Current Threshold The minimum current threshold value.
Temperature
Over The maximum temperature threshold value.
Below The maximum temperature threshold value.
Note: Current overrange alarm is fixed as enabled, the alarm reporting interval is fixed as 5 minutes and the alarm reporting time is fixed as 3.
