Installation

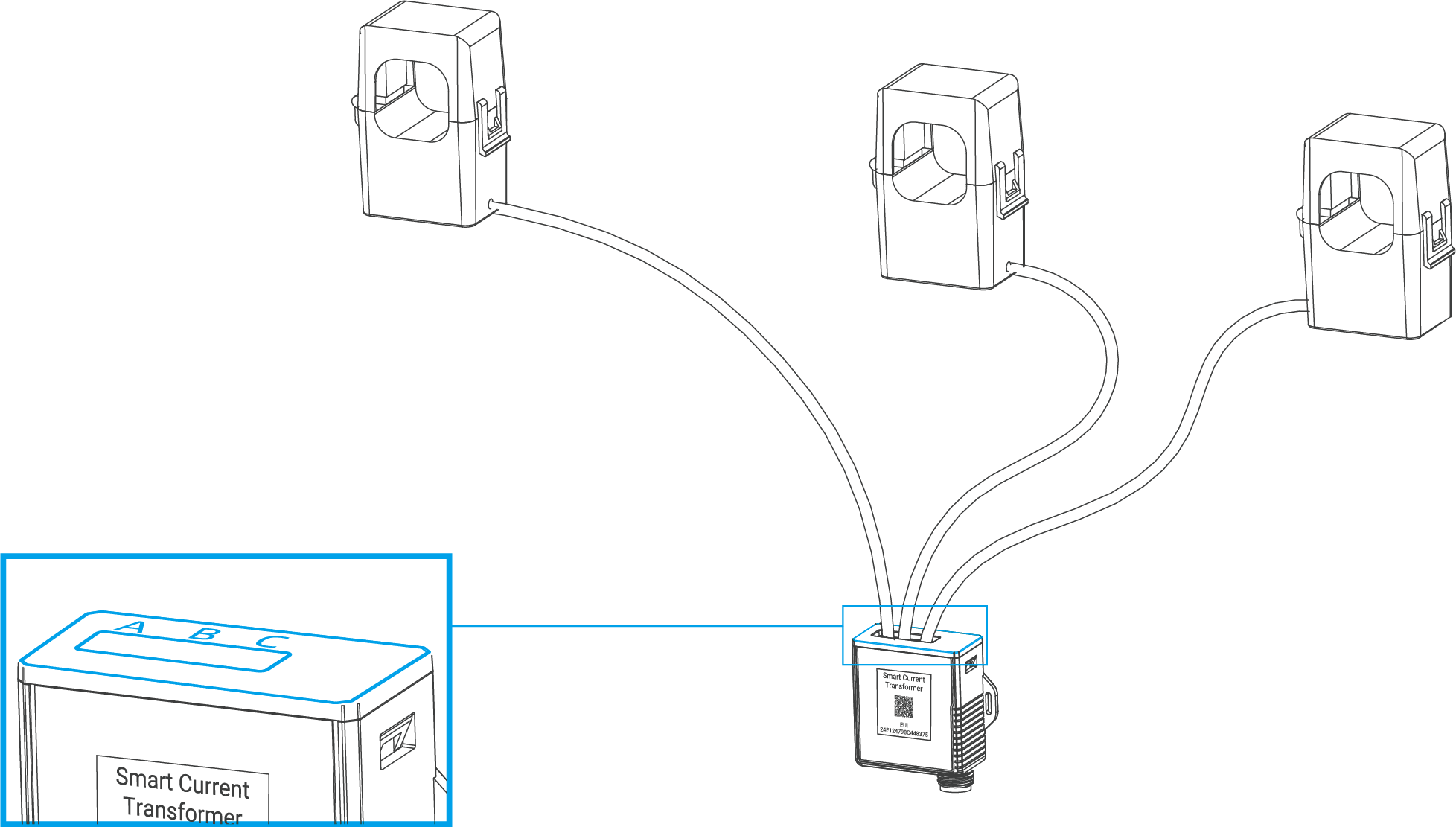

Device Assembly
The CTs can be connected to the connectors of transceiver without any specific order
matching requirement.
Antenna Installation

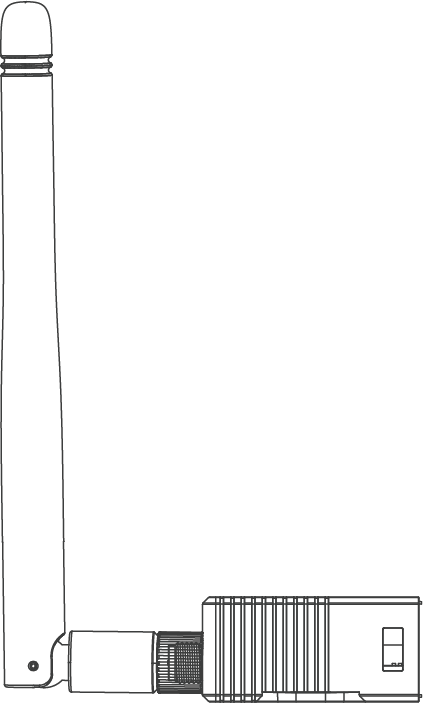

Rotate the antenna into the antenna connector. The antenna should be installed vertically
and kept away from metal objects and obstacles.
Note: Keep the device away from metal objects, obstacles, or the
environment surrounded by other electrical equipment that may cause interference. If

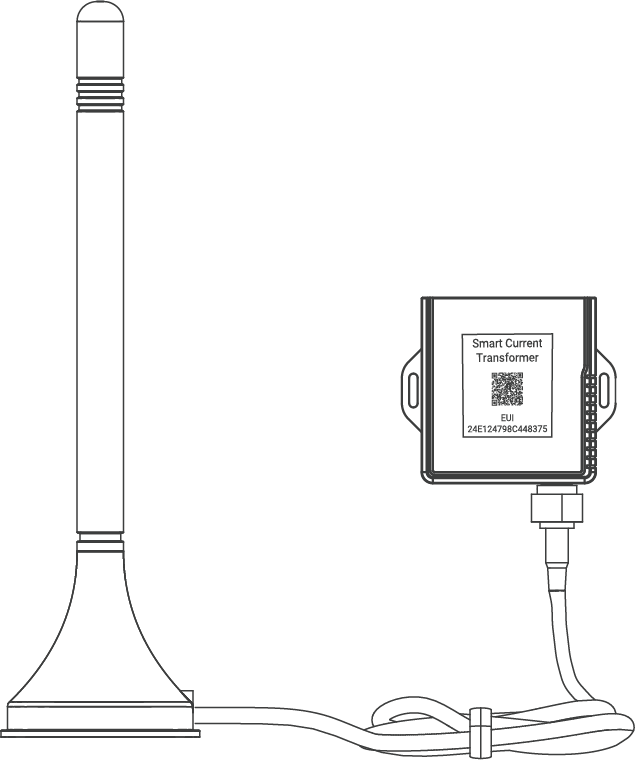

necessary, please select a magnetic antenna.
Transformer Installation

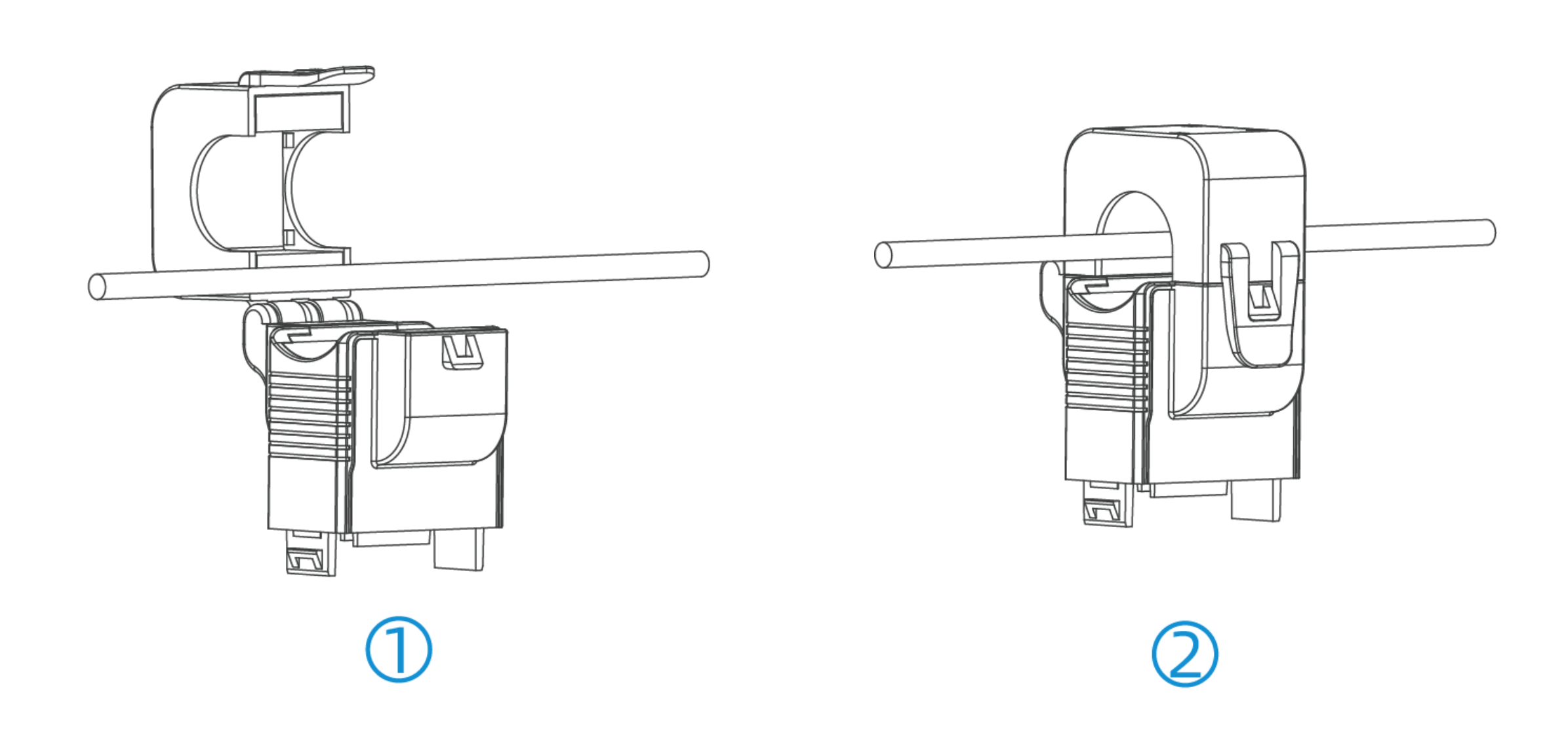

Open the current transformer to clip it around a single-phase wire. Then close the clip with a slight “click” sound to make sure the clip firmly grips the wire.
Note:

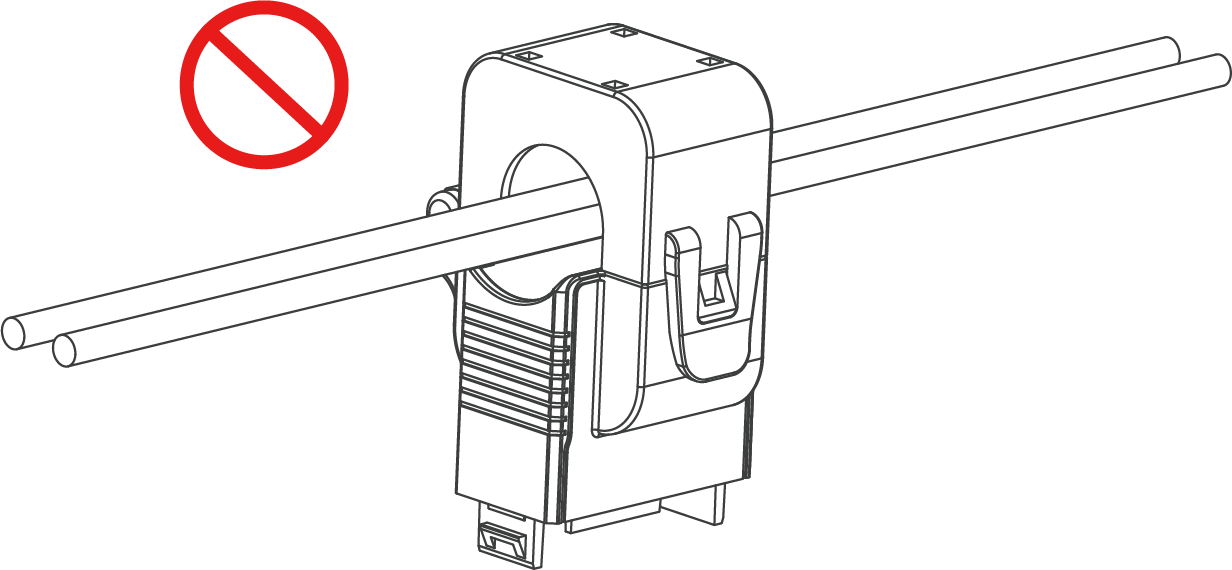

- Do not place Phase wire and Neutral wire within a single current transformer.

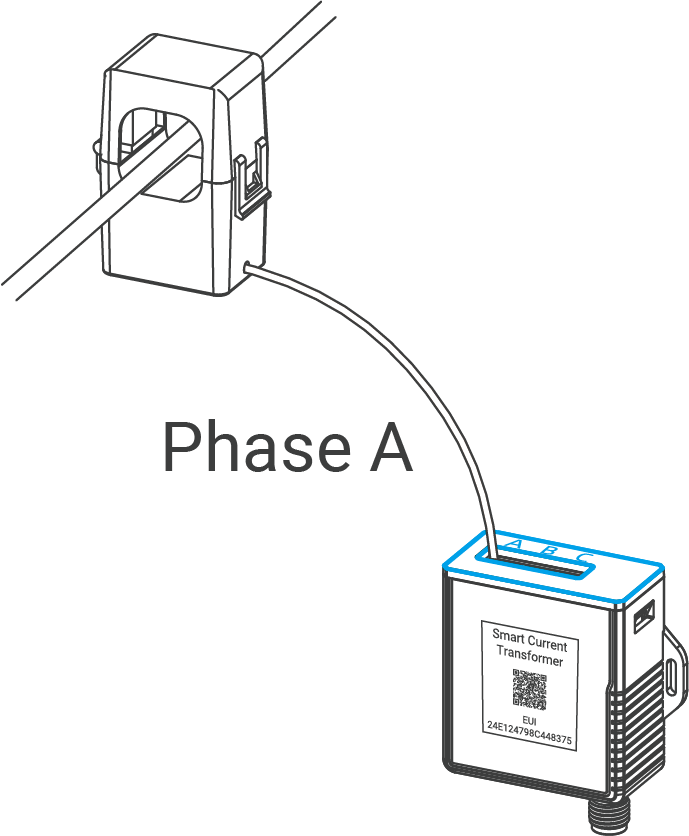

- Please make sure at least connect a phase A CT to phase A wire,
otherwise the device will be powered off.
Transceiver Installation

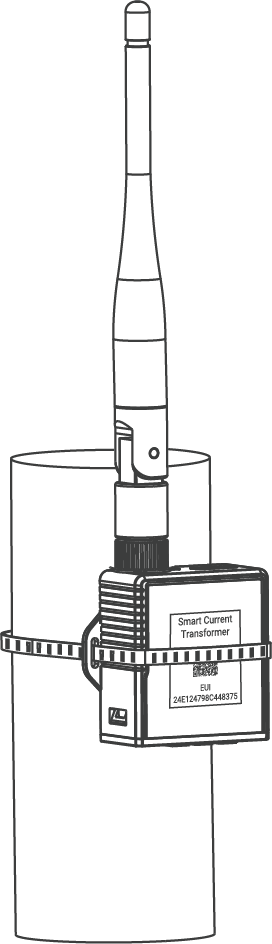

The transceiver can be put or hang in any suitable position or to be fixed via
cable-ties.
USB-C NTC Sensor Installation (Alternative)
The device can monitor the temperature of the wire through the USB-C NTC Sensor, it will alarm when the temperature exceeds the threshold.

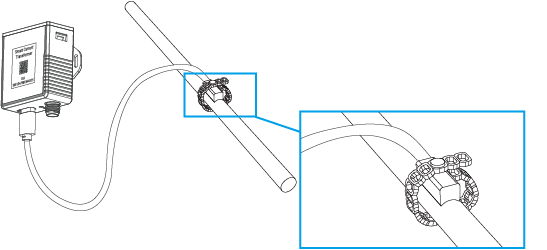

Pass the USB-C NTC Sensor around the tested wire, and then tighten the buckle. The other end is connected to the CT device via the USB Type-C.
Note: Keep the USB-C NTC Sensor as close to the wire connector as
possible to better detect the temperature.
