Quick Start

This chapter describe the steps to quickly configure this device. If you requires more advanced settings, please refer to operation guide chapter.

1. Download and install “Milesight ToolBox” App from Google Play or Apple Store on an NFC-supported smartphone.

2. Enable NFC function on the smartphone, launch Milesight ToolBox, and select the default mode as NFC.

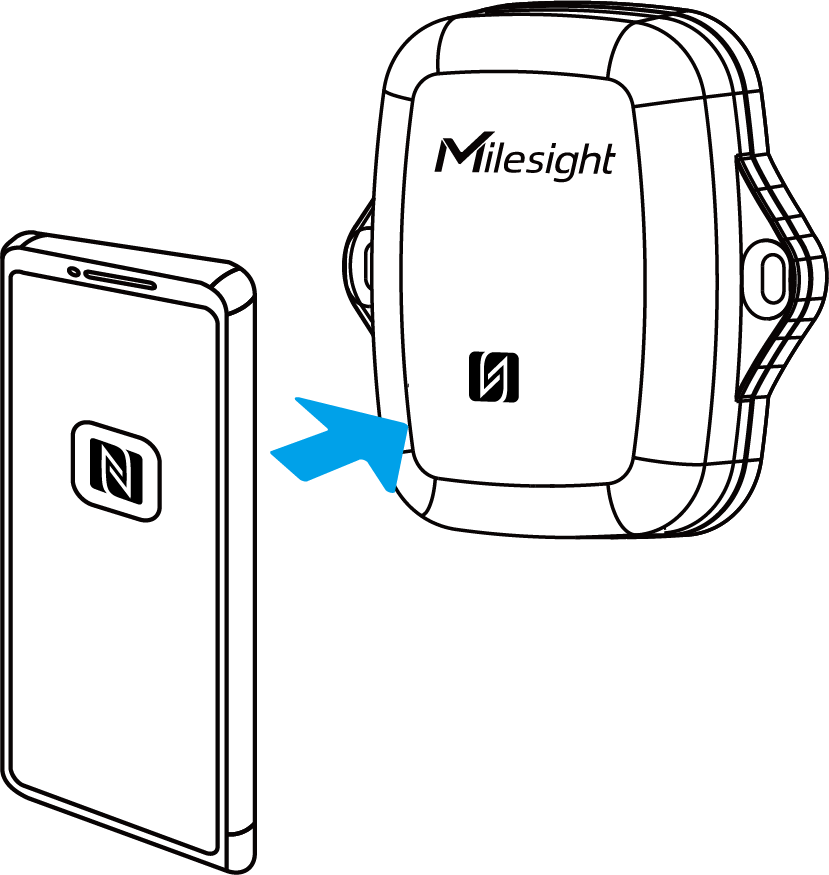

3. Attach the smart phone with NFC area to the device and click to read device information.

4. Click power button on the ToolBox App and attach the smartphone to device to power on the device.

5. Keep other settings by default or change as required, then attach the smartphone with NFC area to the device and click Write to write the settings. After writing, reread the device to check if the configuration is written well.
Note: Set the channel index as 8-15 for US915 or AU915 if using default settings of Milesight gateways.

Water Leakage Testing

  1. Go to Device > General page to set reporting interval as 1 minute.
  2. Put the water leakage probe into enough water.
  3. Wait for more than 1 minute, then read the device to check if the leakage status changes to Leaked.
  4. Dry the probe with soft cloth.
  5. Wait for more than 1 minute, then read the device to if the leakage status changes to No leak.
