Installation

Installation Location

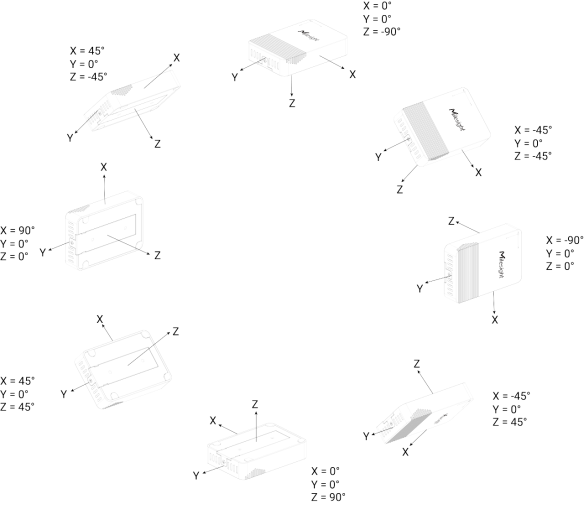

1. Here is the angle reference with difference gesture for installation:

2. Ensure the location of device is within the communication range of LoRaWAN^® gateway and keep it away from metal objects.

3. Ensure that the device is tightly attached without any gap to the surface to be measured of a certain object, and one of the 3 axes should be paralleled with the measuring axis of the object, otherwise, the result may not be correct.

Wall Mounting

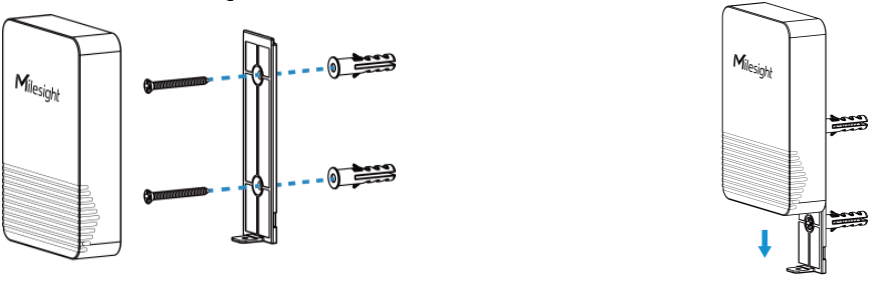

1. Remove the backplate on the back of the device, screw the wall plugs into the wall and fix the backplate with screws on it, then install back the device. Note that the vent of device should not face upwards when installing.

2. Fix the bottom of the device to the cover with a fixing screw.

Pole Mounting

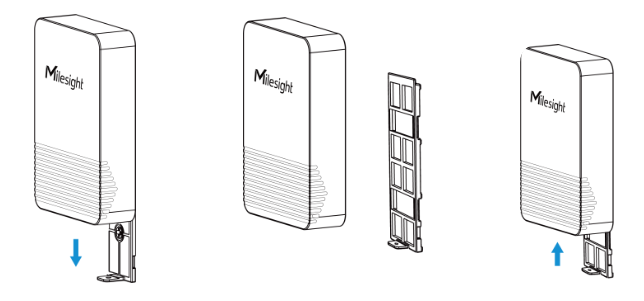

Switch the backplate on the back of the device to the pole mounting plate and fix the plate with a screw, then pass a cable tie through the plate and wrap it with device to the pole.
