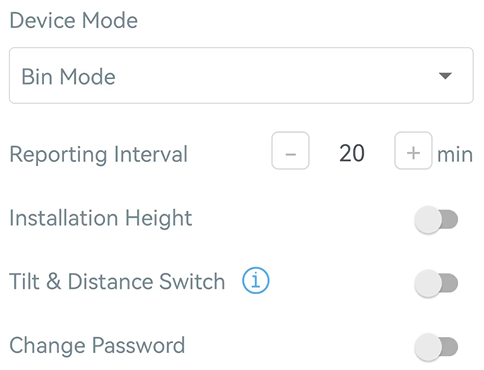

General Settings

General settings include the basic parameters of the device.



Parameter Description
Device Mode Select from Standard Mode, Bin Mode.

Reporting Interval

Reporting interval of transmitting data to server.

Standard Mode: 10 minutes as default, range: 1~1080 minutes;

Bin mode: 20 minutes as default, range: 1~1080 minutes.

Installation Height

Enable or disable the installation height of the device when in Bin Mode.

Note:

  1. It is suggested to enable this feature if the bin is located under strong light and there are bags inside the garbage bin.

  2. If the collected value is above the installation height twice, the sensor will report the installation height.

Value of the Installation Height

Set the installation height between device and the bottom of waste bin. Range: 0.02 - 3.5m.

Tilt & Distance Switch

 When detecting that the offset angle is greater than 20 degrees, turn off the distance measurement.

Change Password

 Change the password for ToolBox App to write this device.
