Installation

Installation location

In order to provide the best data transmission, please ensure the device is within the signal range of the base station and keep it away from metal objects and obstacles.
Avoid strong light, like direct sunlight or IR LED, in the detection area.
Do not install the device close to glass or mirror.
After installation and adjustment, please remove the protective film.
Do no touch the lens of sensor directly to avoid leaving the fingerprint on it.
The detecting performance will be affected if there’s dust on the lens. Please use the mirror cleaning cloth to clean the lens if needed.
The device must be placed in a horizontal position on the top of the object so that it has a clear path to the object.
When using waste bin mode, place the device in the center of waste bin and here are some recommended sizes of waste bins: when the height is 40cm, the minimum radius should be 10cm; when the height is 80cm, the minimum radius should be 19cm.

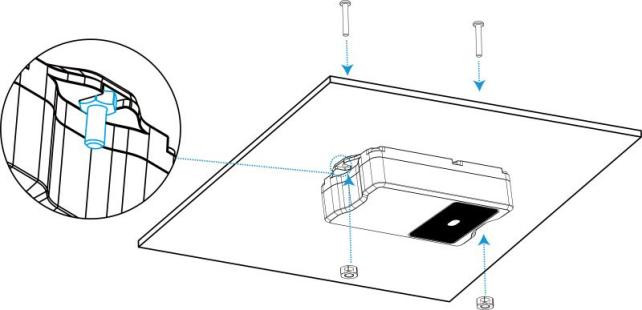

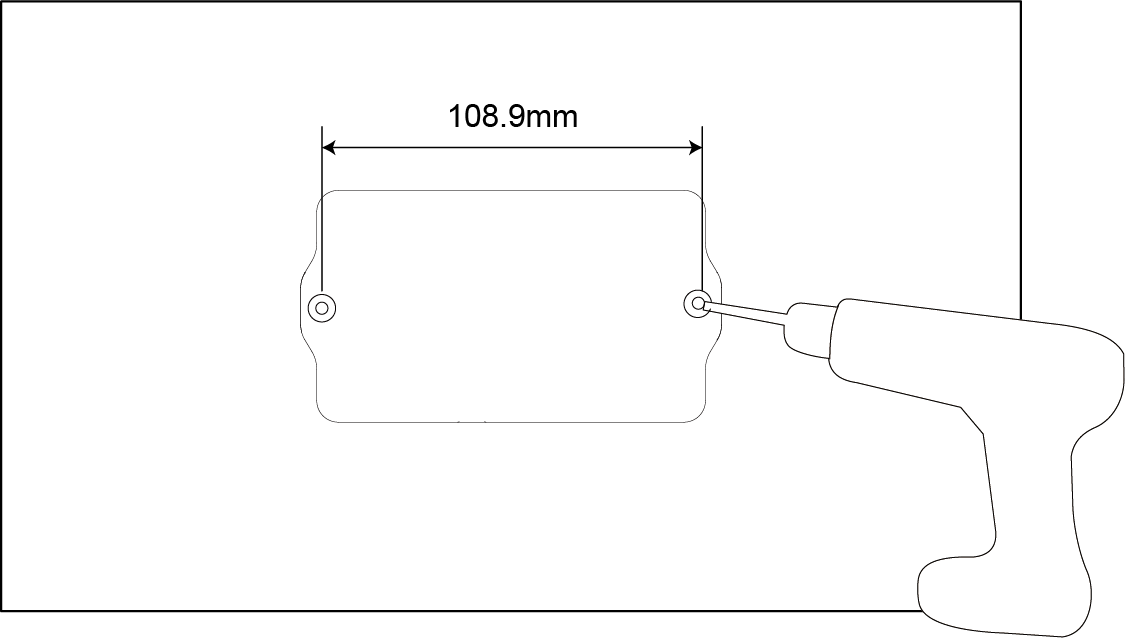

Installation Steps: Step1: Drill two holes on the container cover according to the location of device mounting holes.; Step2: Put the device under container cover and align the holes in order to perfectly screw the bolts into the holes from the other side of the cover.; Besides, the device can also be fixed by two M4 mounting screws and wall plugs.
