Installation
EM500 Transceiver Installation
The transceiver supports wall, pole or DIN rail mounting.
Note: Keep the transceiver away from metal objects and obstacles for
better signal.
- Wall Mounting
-
- Drill two holes in the wall according to the mounting bracket, then secure the wall plugs into the wall.
- Fix the mounting bracket to the wall via screws.
- Place the device onto the mounting bracket, then secure it to the bracket with two fixing screws.
- Pole Mounting
-

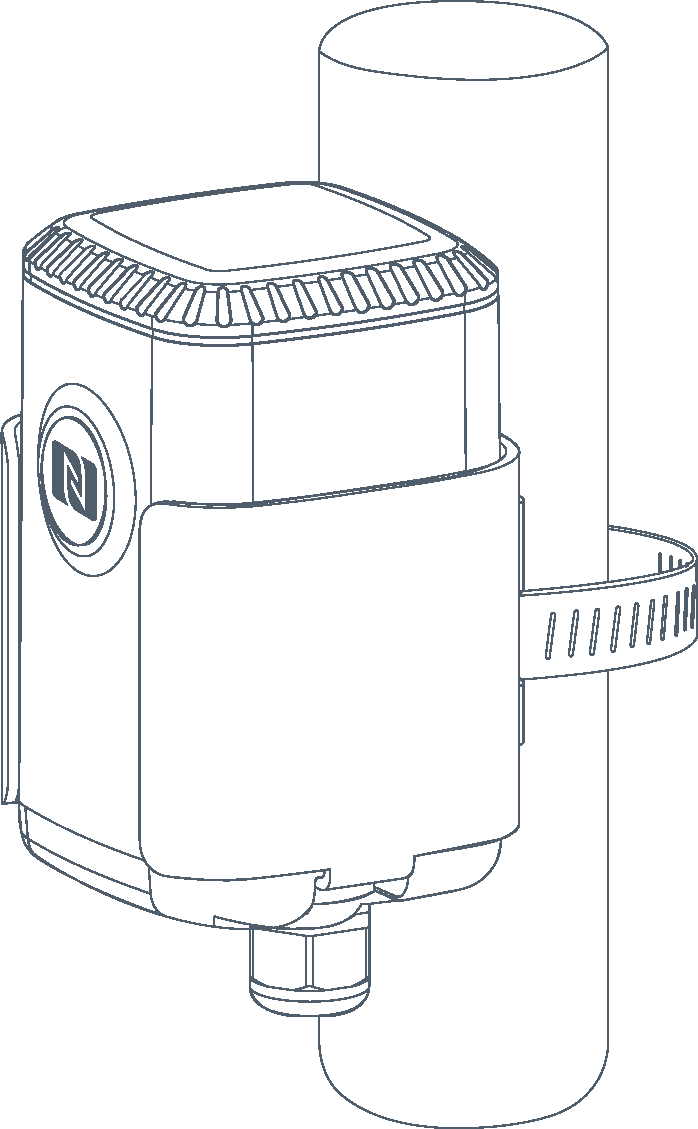

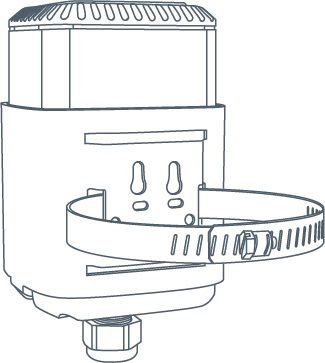

Straighten out the hose clamp and slide it through the rectangular holes in the mounting bracket, and wrap the hose clamp around the pole. After that, use a screwdriver to tighten the locking mechanism by turning it clockwise.
- DIN Rail Mounting
-

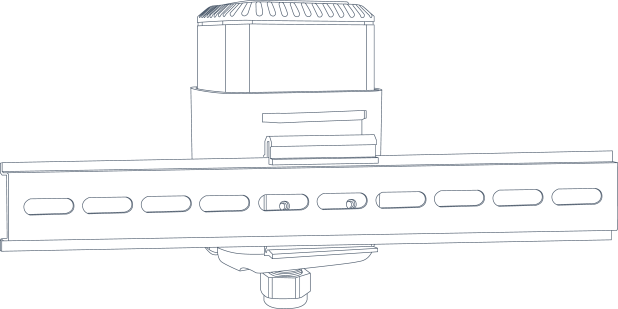

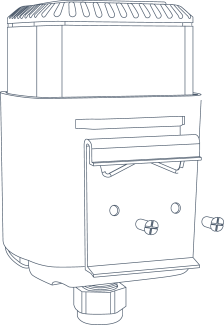

Use 2 pcs of M3 × 6 flat head Phillips screws to fix the mount clip to the bracket, and then hang the device on the DIN rail. The width of the DIN rail is 3.5 cm.
Light Sensor Installation
The light sensor supports mounting on the wall or a plane surface. Ensure the round
area of the sensor is always on top and always towards the sun while using it.
