Sensor Assembly

It is necessary to connect the sensor to the EM500 transceiver to make the whole device work.

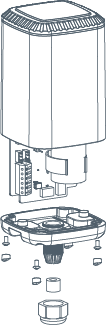

1. Take off the mounting bracket on the transceiver, remove the screws and the bottom cover with the waterproof connector.

2. Pass all sensor wires through the waterproof connector and leave sufficient length for connecting to the EM500 transceiver, then tighten the waterproof connector to the bottom cover.

3. Screw the sensor wires to the terminal block of the EM500 transceiver tightly referring to the label or Hardware Overview section. After wiring, gently pull the wires to ensure they are securely fastened to the transceiver.

4. Restore everything to its due position. When restoring the bottom cover, ensure the red arrow faces the front of the transceiver.

Note: The rubber seal and rubber screw caps should be installed accordingly to prevent water from entering.
