Product Introduction
Overview
VS125 Outdoor Series is a professional-grade people counting solution designed for outdoor environments. Designed to withstand harsh environments, it features an lP67 rating for water and dust resistance, along with protection against infrared/ultraviolet radiation and rain.
Powered by deep learning Al and binocular stereo vision, the sensor achieves up to 99.8% people counting accuracy even in low light or complete darkness. It also supports attribute recognition such as gender, children, and staff detection, while fully complying with GDPR privacy standards.
The device offers flexible connectivity options including Cellular and PoE, as well as expansion interfaces such as RS485, DO, and DI, enabling seamless integration and efficient space management in a wide range of outdoor applications.
The device can be used in places like scenic spots, streets, parks, outdoor activities,etc.
Key Features
- Up to 99.8% people counting accuracy with AI and stereo vision technology
- IP67-rated waterproof and dustproof housing ensures reliable outdoor performance across a wide temperature range
- Excellent light adaptability for reliable performance in low light and total darkness
- Supports ceiling mounting up to 6 m, with automatic tilt correction and infrared light adjustment
- Customer-defined preview privacy settings, no data with personal information is transmitted, complies with GDPR
- Supports line crossing people counting, regional people counting and dwell time detection
- Advanced attribute recognition including gender, group, children, and staff identification enabling deeper insights
- Supports heat map functionality for analyzing foot traffic intensity and distribution
- Supports Multi-Device stitching for linking up to 16 devices to expand coverage
- Supports local data storage and data retransmission to ensure secure data collection
- Provide multiple connectivity options (PoE, Cellular)
- Supports RS485/DI/DO multiple interfaces and has strong scalability
- Allows quick and easy management via Milesight Development Platform
- High compatibility of data transmission with HTTP(s)/MQTT(s) protocol and API, supports customized push content methods
Packing List
 |
 |
 |

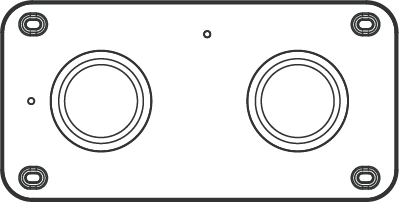

| 1 × VS125-O Device | 4 × Ceiling Mounting Kits | 4 × Rubber Screw Hole Plugs |
 |
 |
|
| 1 × Warranty Card | 1 × Quick Guide |
 |
 |
||
| 1 x Power Adapter | 1 x SIM-eject Tool |
|
|||
| 1 x Power Adapter (Optional) |
- The device supports mounting kits and people counter accessories. For more
information, please scan the QR code.
- If any of the above items is missing or damaged, please contact your sales representative.

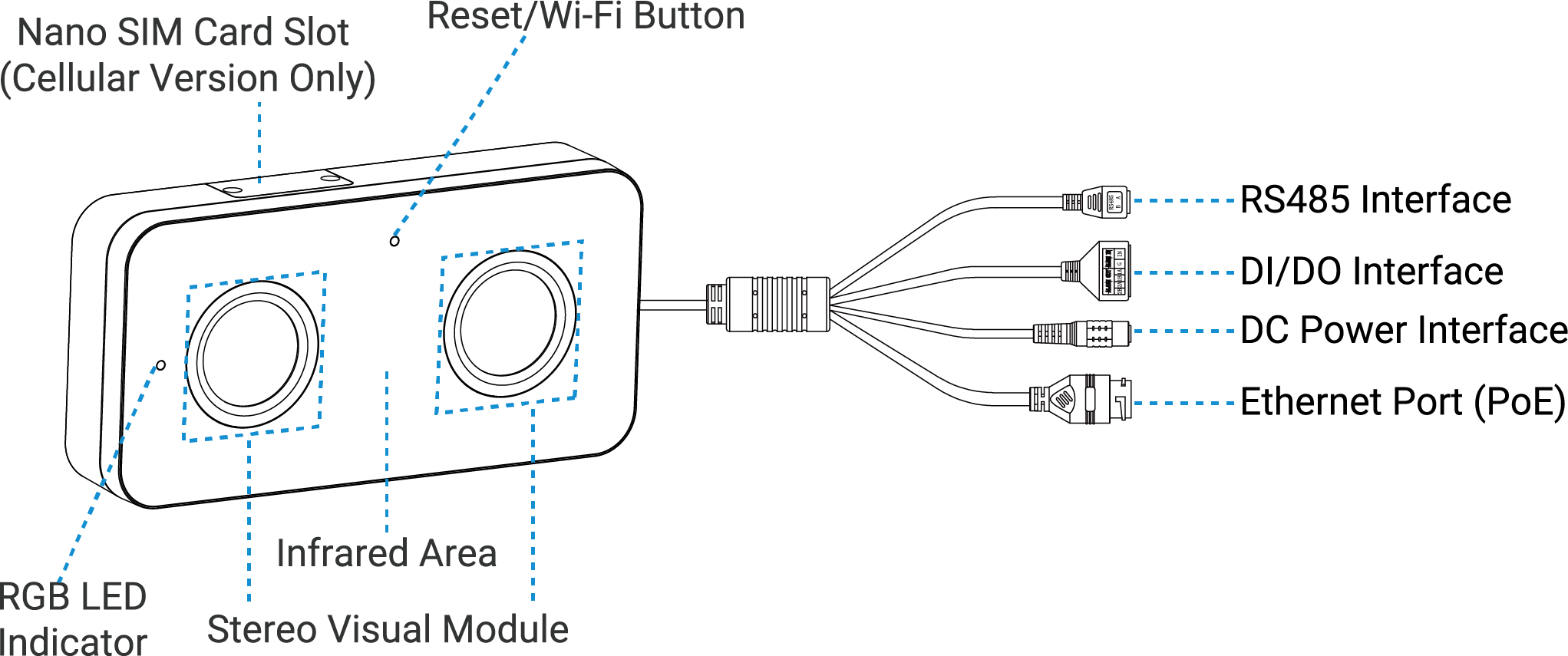

Hardware Overview

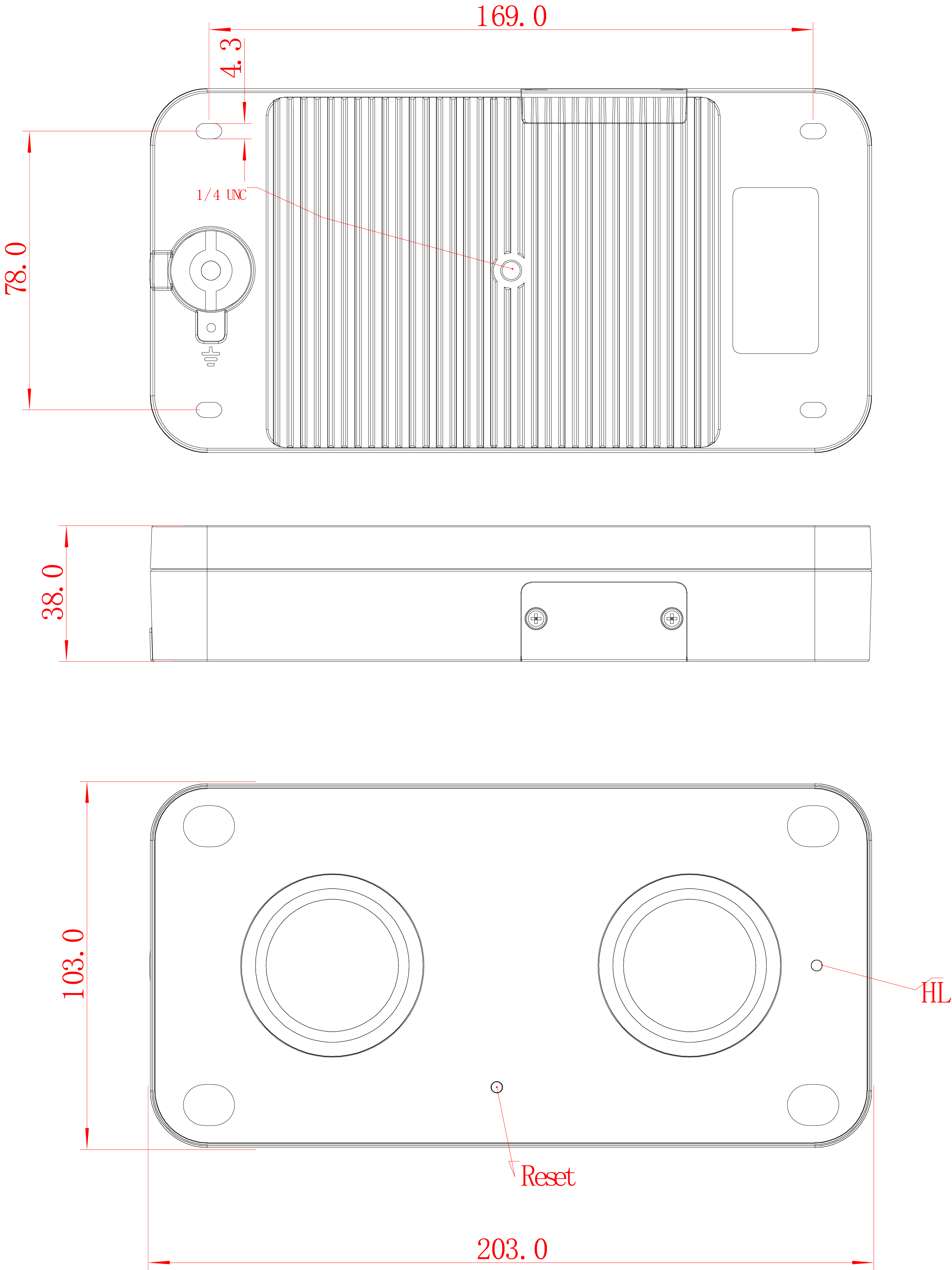

Dimensions (mm)
Button and LED Indicators
| Function | Action | LED Indication |
|---|---|---|
| Turn On/Off Wi-Fi | Press and hold the power button for more than 3 seconds. | Turn On/Off: Blue light blinks for
3 seconds. Wi-Fi On: Blue light on. Wi-Fi Off: Green light on. |
| Reset to Factory Default | Press and hold the power button for more than 10 seconds. | Green light blinks until the reset process is completed. |
| Module or algorithm detection error | / | Red light on |
Wirings

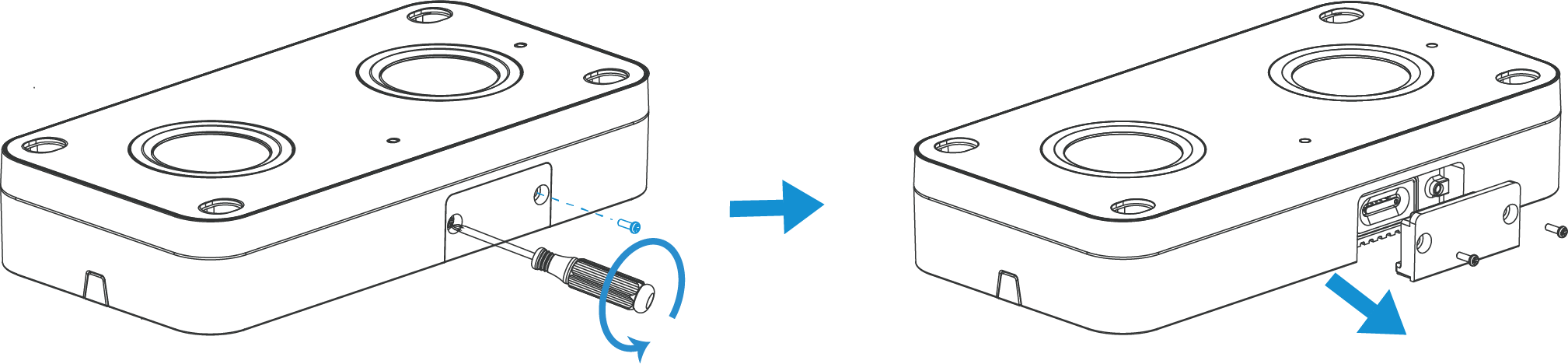

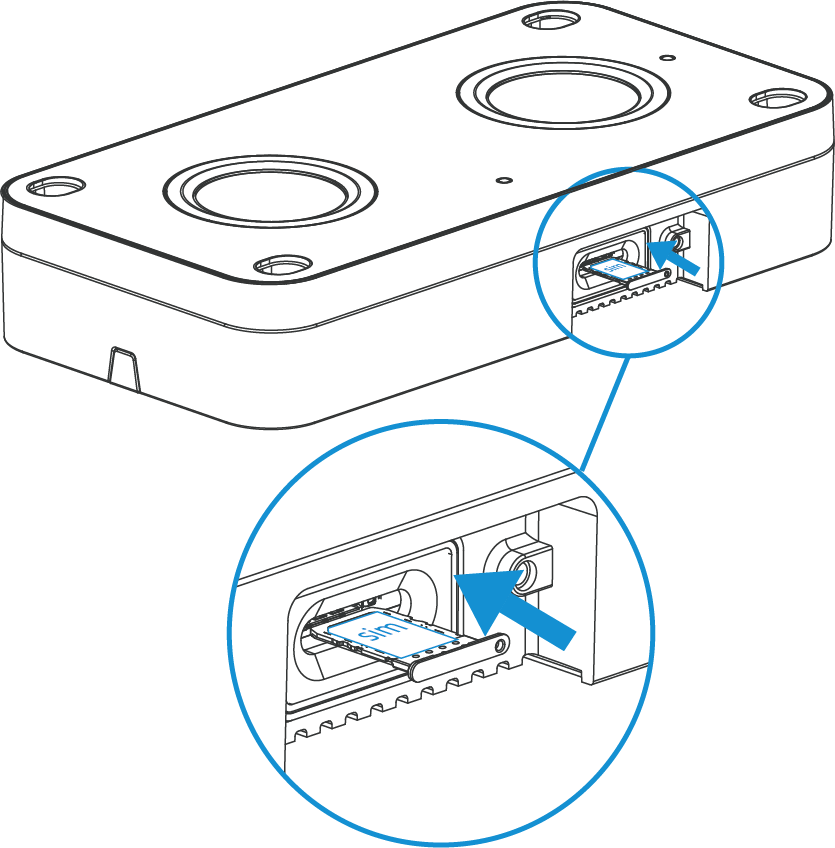

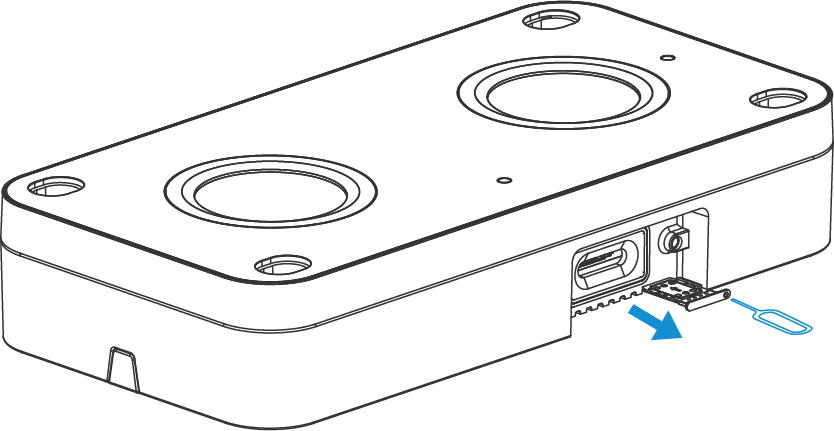

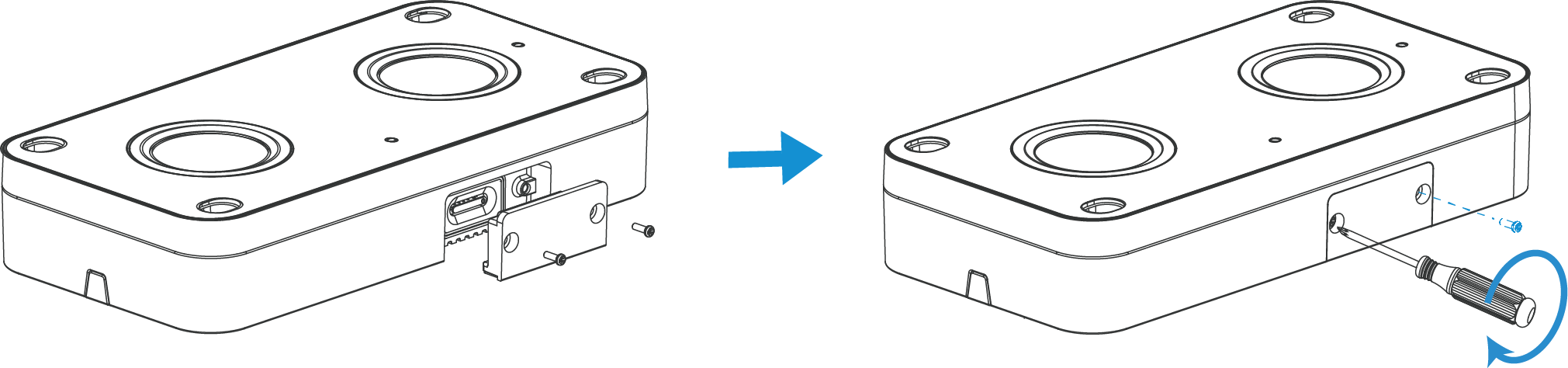

SIM Card Installation (Cellular Version Only)
