Access the Sensor

The device provides user-friendly web GUI for configuration access via Wi-Fi or Ethernet port. Users need to customize the password when using the device for the first time. The default settings are as below:

Wi-Fi SSID: People Counter_xxxxxx (can be found on the device label)

Wi-Fi IP: 192.168.1.1

Ethernet IP: 192.168.5.220

Step 1:

  • Wireless Method: Enable the Wireless Network Connection on your computer, search for corresponding for Wi-Fi SSID to connect it, then type 192.168.1.1 to access the web GUI.
  • Wired Method (PoE Version Only): Connect the device to computer via Ethernet port, change the IP address of computer to 192.168.5.0 segment as below:

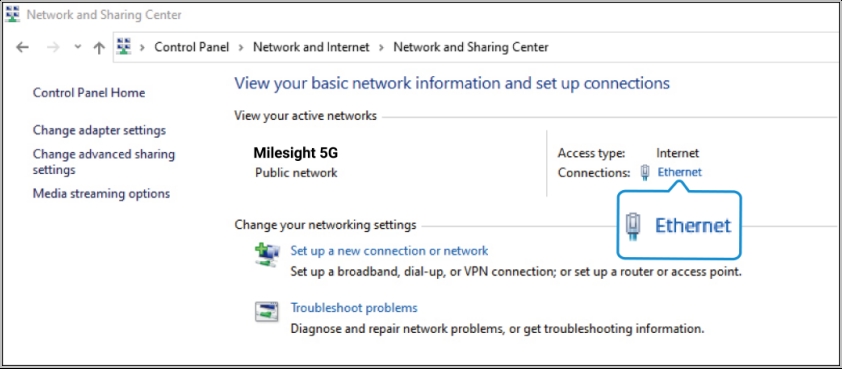

    1. Go to Start → Control Panel → Network and Internet → Network and Sharing Center → Ethernet → Properties → Internet Protocol Version 4 (TCP/IPv4).

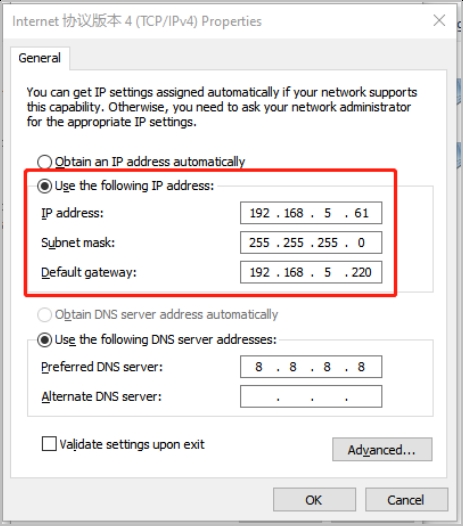

    2. Enter an IP address that in the same segment with sensor ( e.g. 192.168.5.61, but please note that this IP address shall not conflict with the IP address on the existed network).

    3. Then open the Browser and type 192.168.5.220 to access the web GUI.

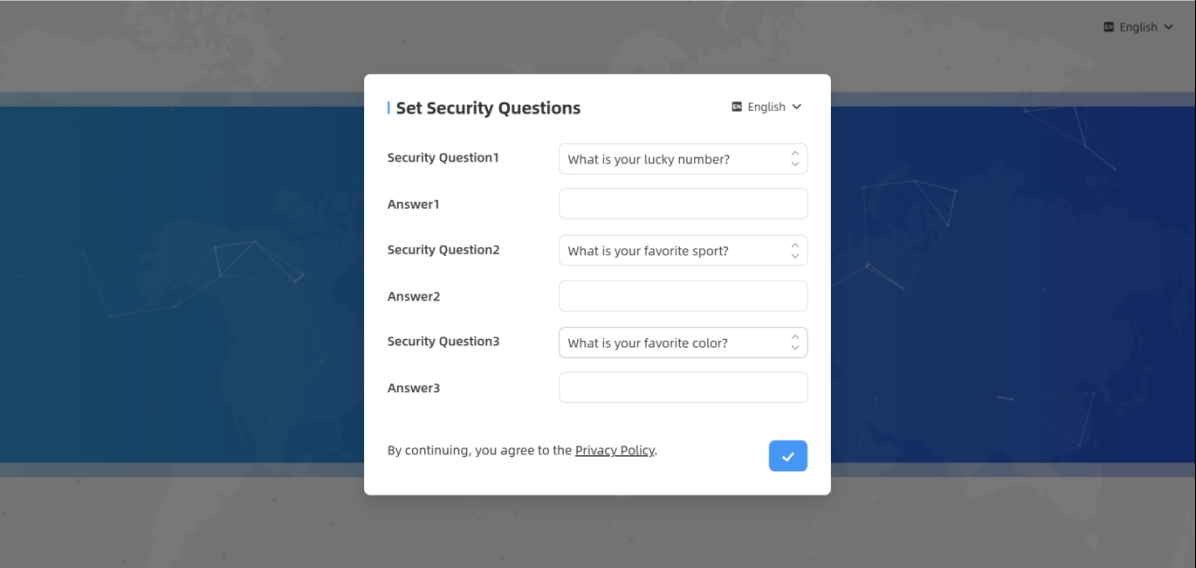

Step 2: Users need to set the password and three security questions when using the sensor for the first time.

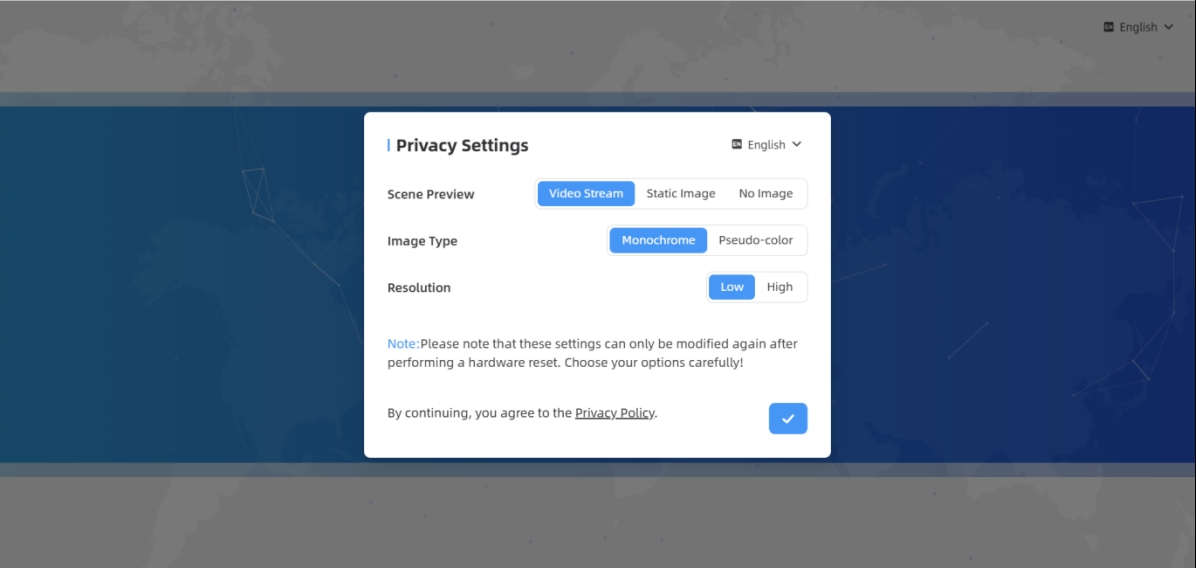

Step 3: Configure the privacy settings to select preview image modes on the dashboard.

Note: If you need to reset the privacy settings, hold on reset button for 10s to reset device to factory default.


Parameters Description
Scene Preview

Select video stream preview, static image preview or no image preview as needed.

Video Stream: Live preview of the video, displaying dynamic scenes and people.

Static Image: A still image to view the scene.

No Image: No image displayed.
Image Type

Select Monochrome or Pseudo-color image type.

Monochrome: Black, white and gray image.

Pseudo-color: Color-enhanced image.
Resolution

Select Low or High.

Low: Display a less clear images, but still allow viewing of scenes and moving people

High: Display clear scenes and people faces

Step 4: After configuration, log in with username (admin) and custom password.

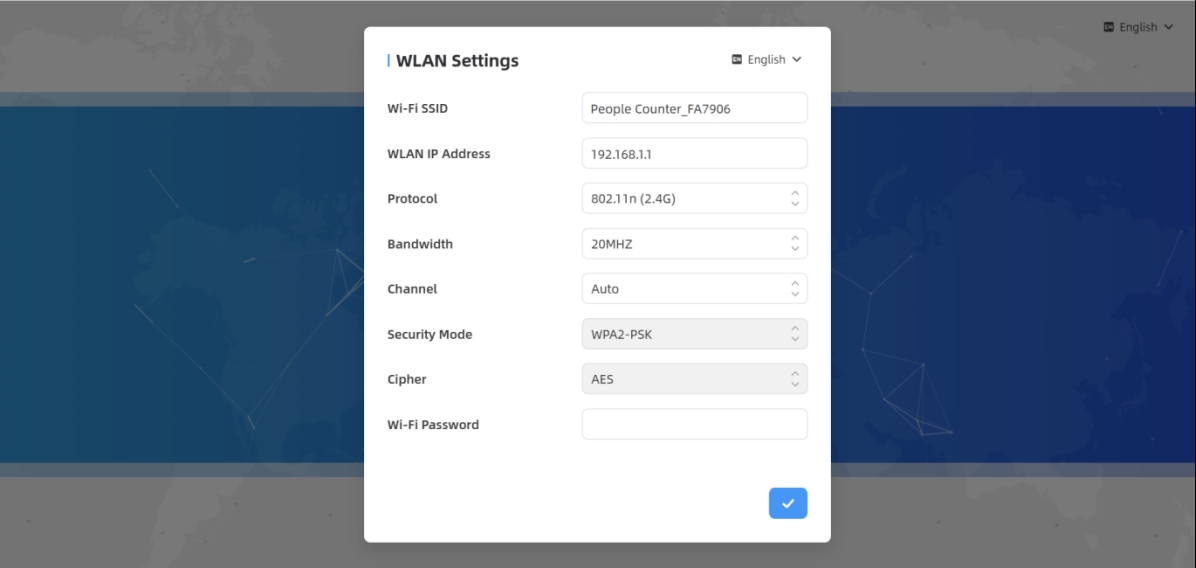

Step 5: Set the Wi-Fi password.



Note:
  1. Password and Wi-Fi password must be 8 to 63 characters long and contain numbers, lowercase letters, uppercase letters and special characters. If the password is entered incorrectly five times, the account will be locked for 10 minutes.
  2. It is recommended that users regularly update their passwords to enhance device security and prevent unauthorized access.
  3. You can click the “forgot password” in login page to reset the password by answering three security questions when you forget the password if you set the security questions in advance.
