Hardware Introduction
Packing List
 |
 |
 |
| 1 × VS133 Device | 4 × Ceiling Mounting Kits | 8 × Staff Tags |
 |
 |
 |
| 1 × Power Adapter | 1 × Warranty Card | 1 × Quick Guide |
Note:
- The device supports mounting kits and people counter accessories. For more
information, please scan the QR code.
- If any of the above items is missing or damaged, please contact your sales representative.
Hardware Overview

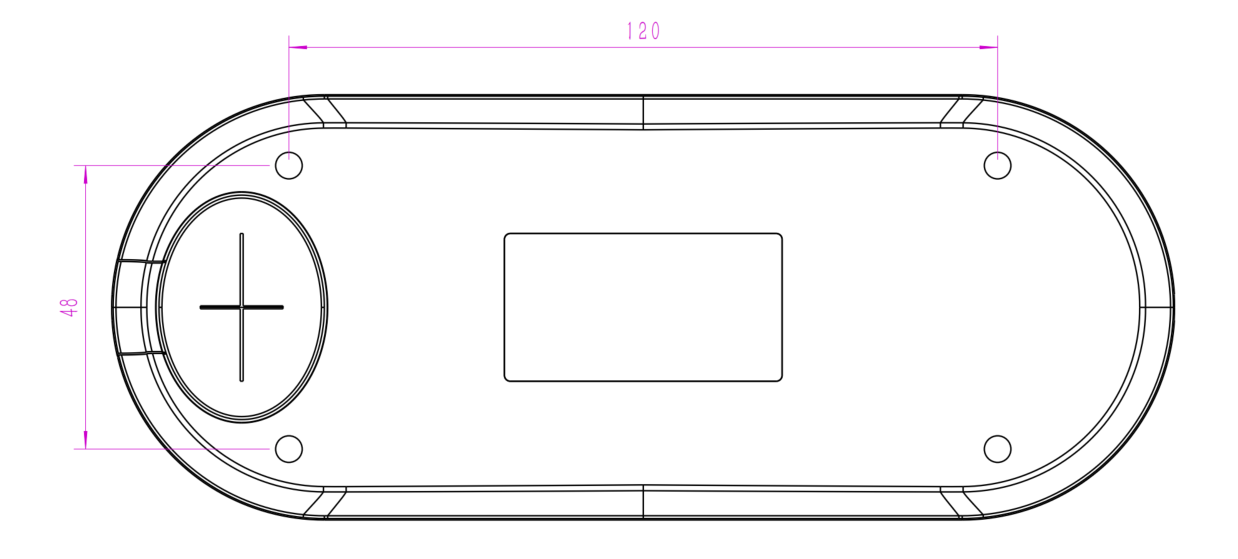

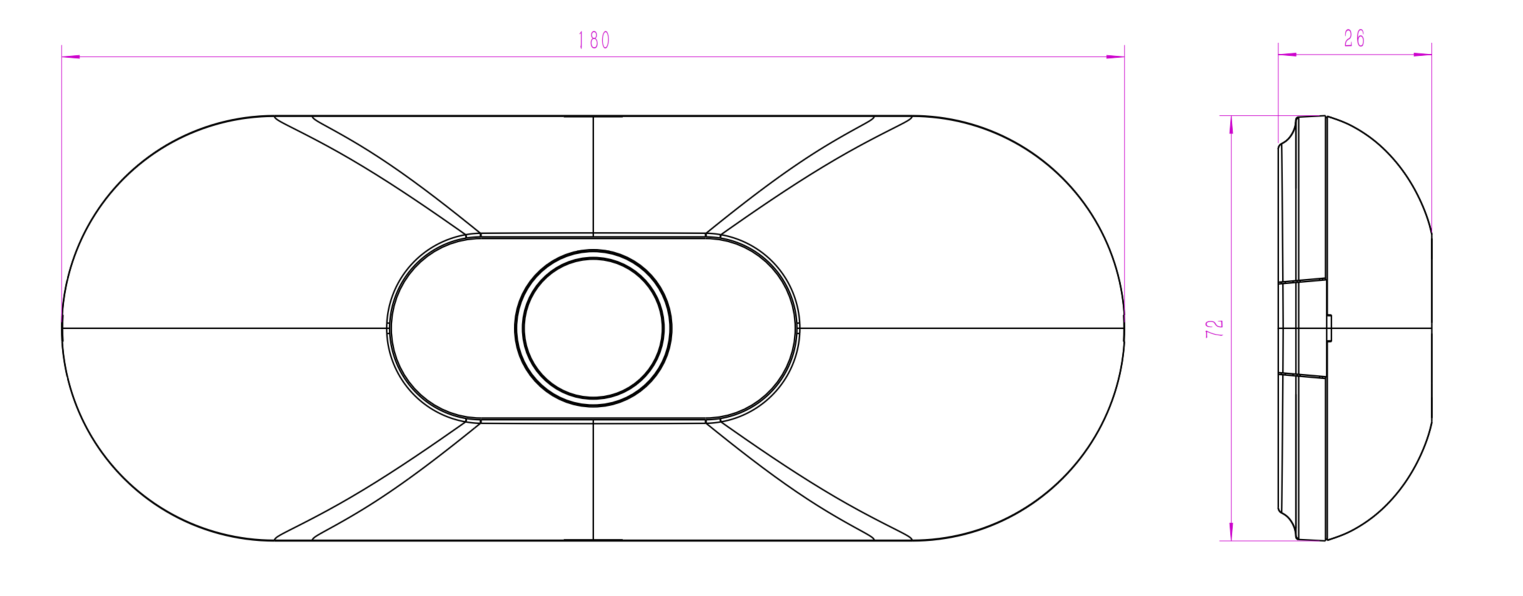

Dimension(mm)
Button and LED Indicators
| Function | Action | LED Indication |
|---|---|---|
| Turn On/Off Wi-Fi | Press and hold the button for more than 3 seconds. | Blue blinks 3s Wi-Fi on: Blue on Wi-Fi off: Green on |
| Reset to Factory Default | Press and hold the reset button for more than 10 seconds. | Green Blinks. |
