Validation

Video validation function can assist users in verifying the accuracy of people counting by setting up a video recording task.

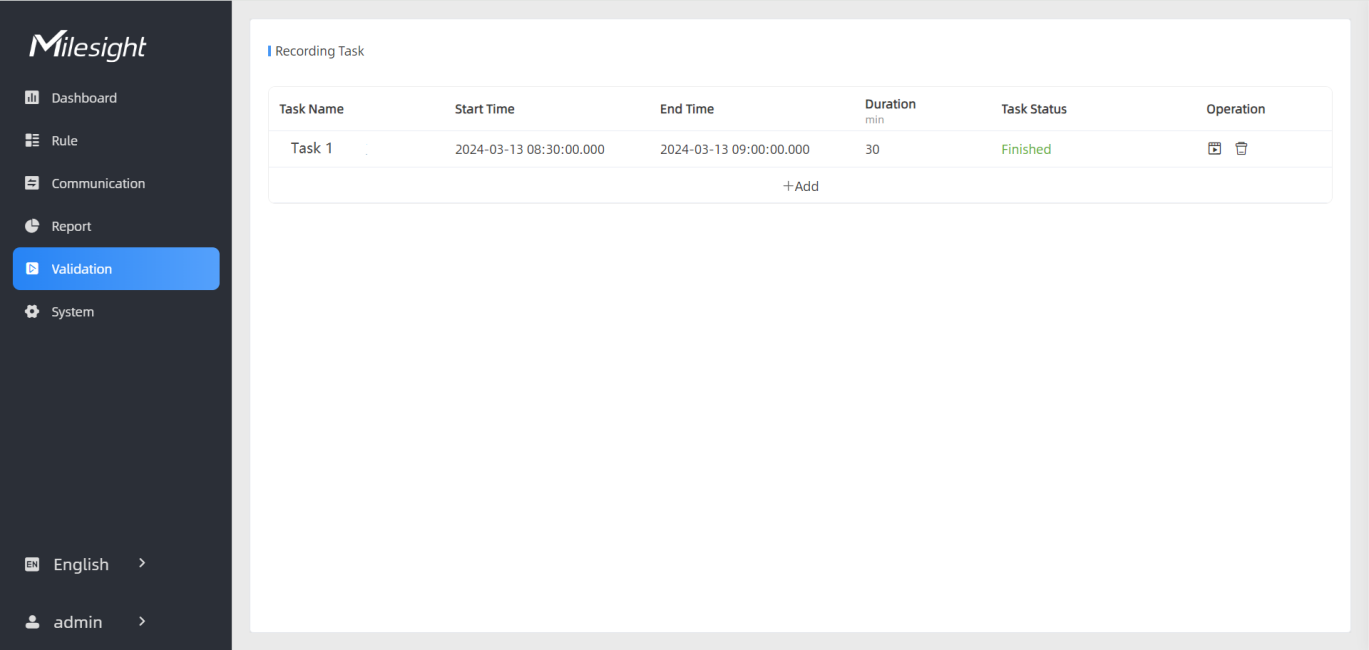

Parameters Description
Task Name Show the task name.
Start/End Time Show the start time and end time of this video.
Duration Show the length of the video.
Task Status Show the video task status.
Operation Click to check the video details, stop recording or delete the task.
+Add Click to add a video task. One device can add up to 24 tasks.

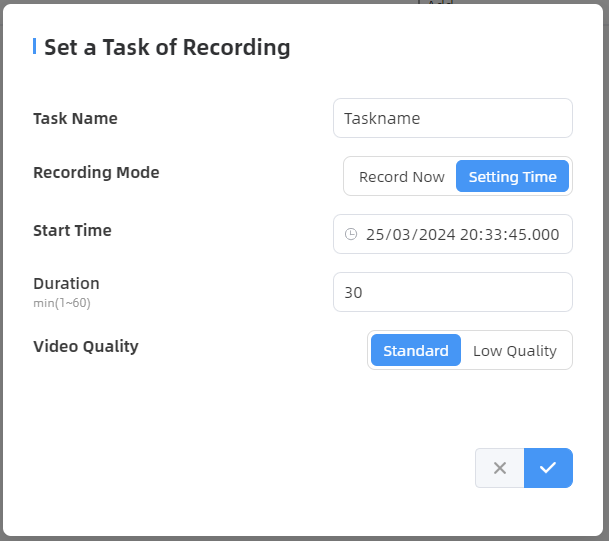

Parameters Description
Task Name Customize a name for this task.
Recording Mode Record Now or Setting Time is optional.
Start Time Set the start recording time.
Duration Set the duration of the recording, the duration of all tasks should not be more than 240 minutes.
Video Quality When video quality is low, the video size will be smaller and quicker to download.
Note:
  • The setting time range of different tasks can not be overlap.
  • Detection rules and ToF frequency parameters cannot be modified during the recording process.
  • Recording tasks can only be performed on the master device when multi-device stitching.
  • If the validation videos need to be played locally, please use the specialized player provided by Milesight: Milesight VS Player.

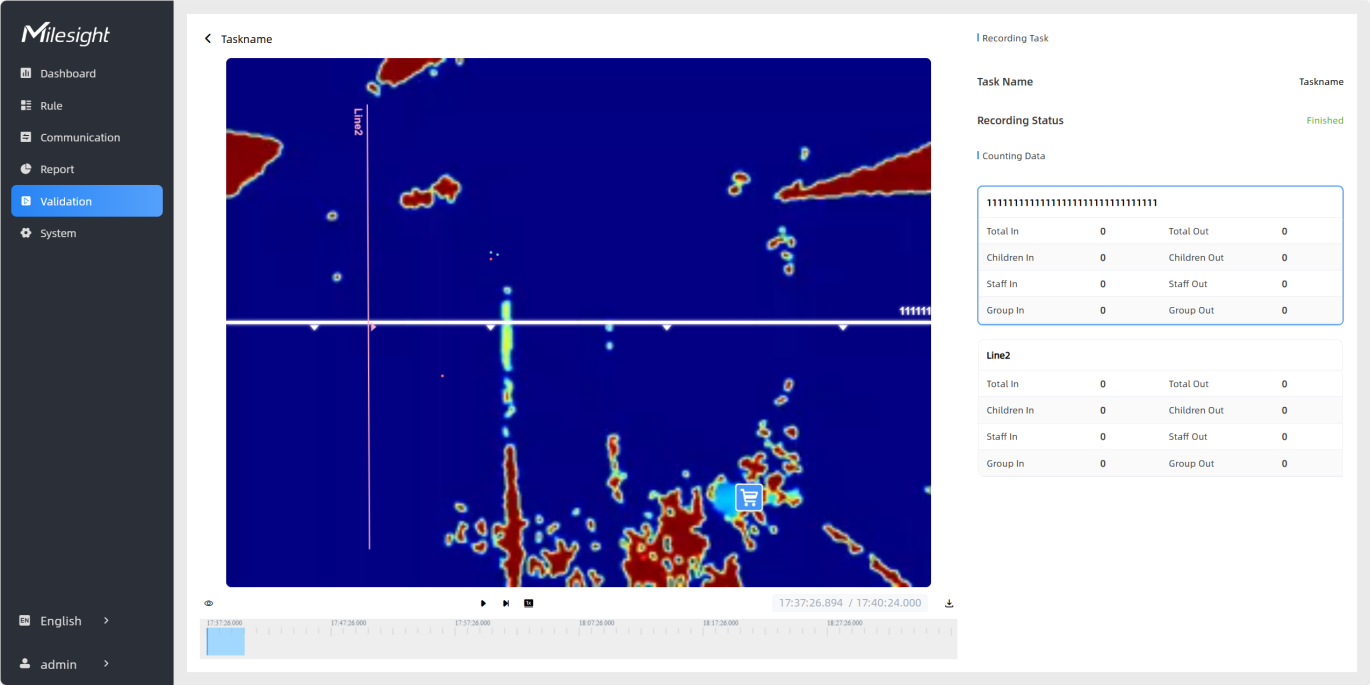

Parameters Description


Edit Preview Layout		 Visual Configuration Show/Hide relevant rule in the recording footage.
AI Result Show/Hide track line in the recording footage.

Real-time Track Line: real-time trajectory line of the targets

Static Track Line: historical trajectory line of the targets

Shopping Cart: historical trajectory points of the shopping carts
Other Show/Hide track points in the recording footage.
Playback Button

Rewind/Pause/Play/Forward(supports switching between 0.5x, 1x, 2x, and 4x playback speed).


Start time and end time of the recording.


Download video stream footage to check problem.
Note: The playback progress bar of video stream footage highlights the video frame where the data changes.
