Preface
Product Introduction
Hardware Introduction
Quick Start
This chapter describe the steps to quickly configure this device to set up the connection with LoRaWAN^® gateway and network server. If you requires more advanced settings, please refer to operation guide chapter.
Operation Guide
- LoRaWAN^® Settings
- General Settings
- Time Synchronization
  This section describes how to sync the time of the device.
- Milesight D2D Settings
- Maintenance
Installation
Uplink Packets and Downlink Commands
Services

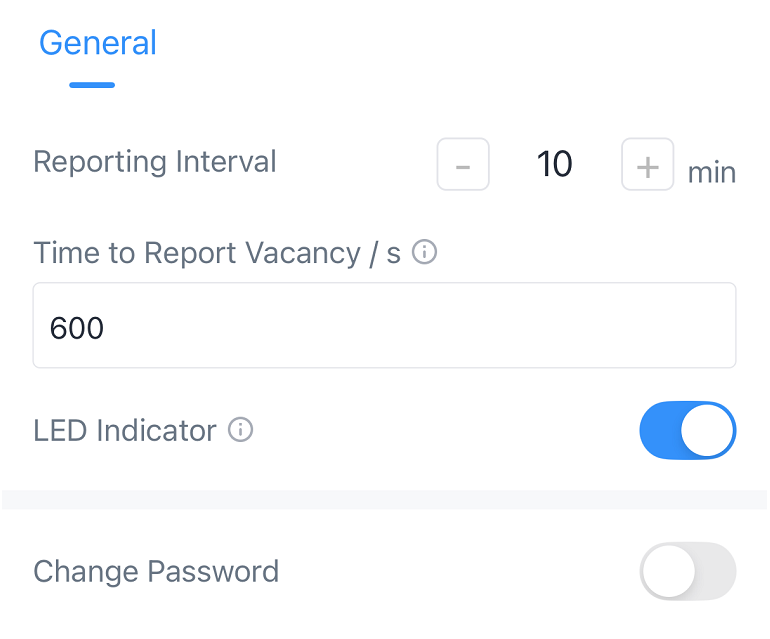

General Settings


Parameters	Description
Reporting Interval	The interval of reporting occupancy status and battery level to network server. Default: 1440 mins, Range: 1 - 1440 mins Note: The device will also report “Occupied” status immediately when it detects motions.
Time to Report Vacancy/s	A “Vacant” status will be reported if the device does not detect motion within a certain period of time. VS340: Default: 5 min, Range: 1 - 30 min VS341: Default: 60 s, Range: 15 - 600 s
LED Indicator	Enable or disable the LED Indicator to indicate occupancy status.
Change Password	Change the password for ToolBox App to write this device.
