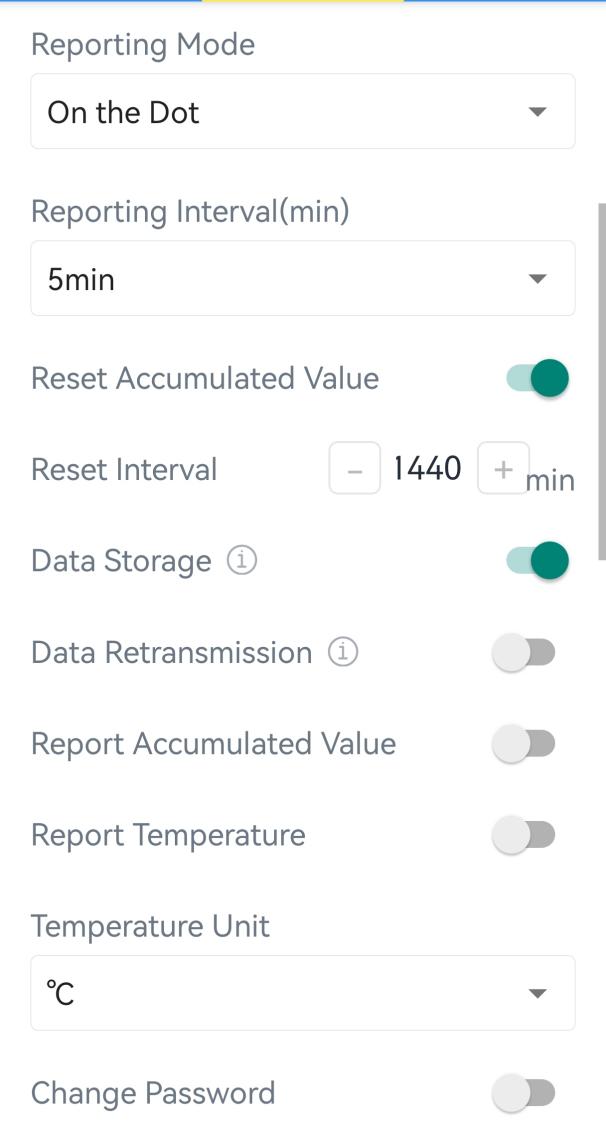

General Settings



Parameters Description
Reporting Mode Select the periodic reporting mode: "On the Dot" or "From Now On".

On the Dot: Report at regular time marks. For example, if the current time is 0:07 and the interval is set to 10 minutes, reports will be sent at 0:10, 0:20, 0:30, etc.

From Now On: Start reporting immediately and continue at regular intervals from that point forward.
Reporting Interval The time interval for reporting people counting data and battery level to the network server. Default: 10 minutes.
Reset Accumulated Value Enable or disable automatic reset of accumulated in/out counting values. Before resetting the accumulated value, the device reports the current accumulated value once, and then clears it.
Note: the device will reset automatically when accumulate counting values reaches 65535 even this option is disabled.
Reset Interval The time to reset accumulated in/out counting values.
Note: The cumulative value will be reported once before reset.

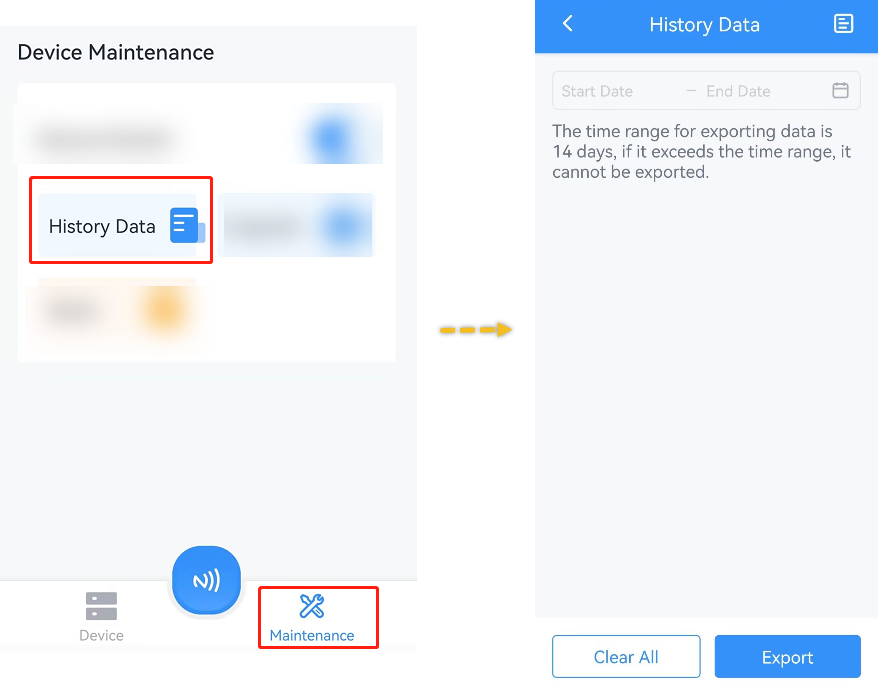

Data Storage Disable or enable to store periodic report data locally. The stored data can be exported as CSV format file and saved to smartphone via ToolBox. VS350 only stores people counting data.


Note:
  1. It is necessary to sync the time to ensure the data is stored in correct time.
  2. The device will still store the data even the network status is de-activated.
  3. ToolBox App can only export the last 14 days' data at most.
Data Retransmission Disable or enable data retransmssion. When the device detects the network status is de-activated via Rejoin Mode, the device will record a data lost time point and re-transmit the lost data after device re-connects to the network.
Note:
  1. This setting only takes effect when Data Storage is enabled.
  2. If the device is rebooted or re-power when data retransmission is not completed, the device will re-send all retransmission data again after device is reconnected to the network.
  3. If the network is disconnected again during data retransmission, it will only send the latest disconnected data.
  4. The default report data retransmission interval is 600s, this can be changed via downlink command.
  5. The reported format of retransmission data will include timestamps and is different from periodic report data.
  6. This setting will increase the uplink frequencies and shorten the battery life.
Report Accumulated Value Disable or enable to report accumulated counting values in periodic packets.
Report Temperature Disable or enable to report temperature in periodic packets, this option will not affect temperature threshold alarm packets.
Temperature Unit Set the temperature unit displayed on the status page.
Change Password Change the password for ToolBox App to write this device.
