Power Supply

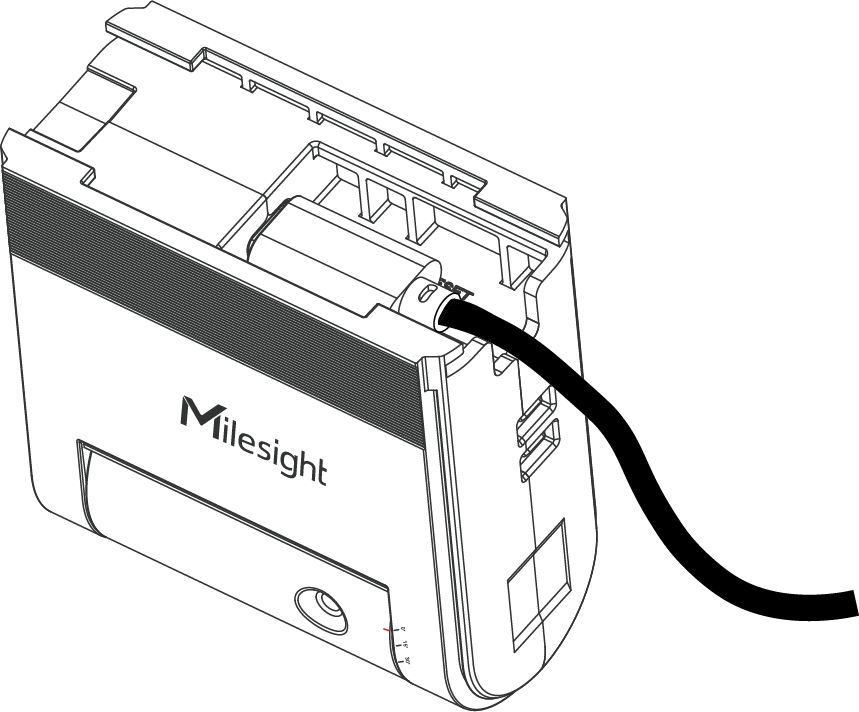

Type-C Version: Connect power cable to type-C port of device.



Battery Version: The batteries are installed in the battery compartment by default, please connect the power plug of battery compartment to battery outlet of device to power on it.

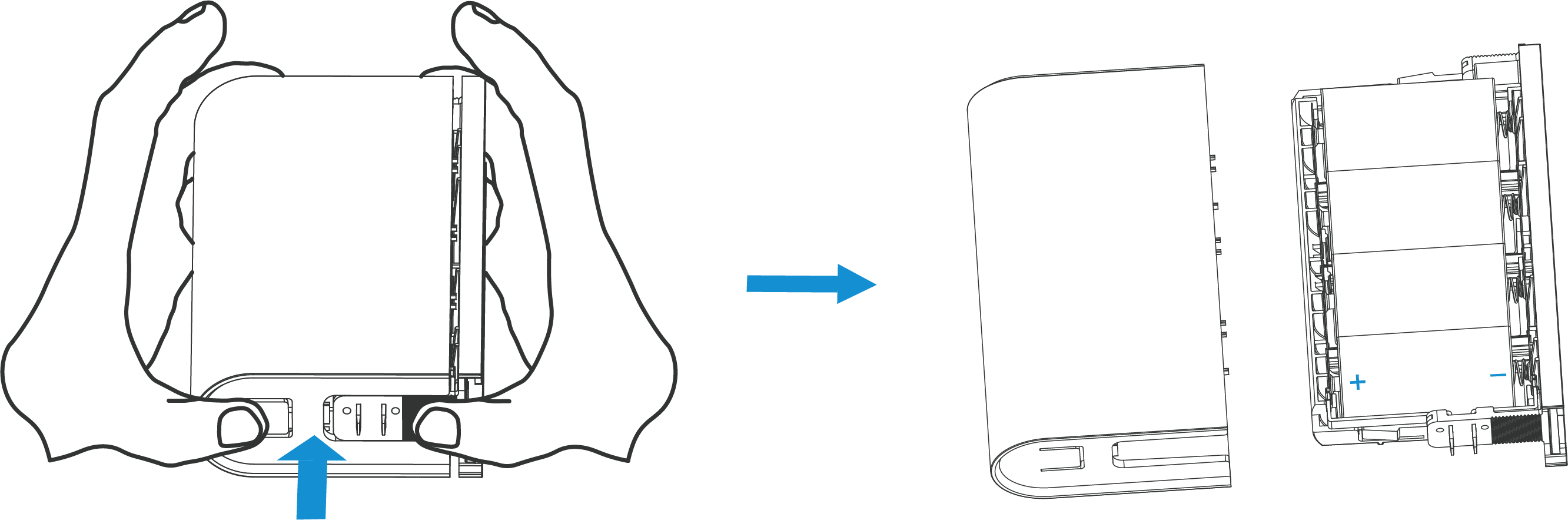

If the batteries are necessary to replace, remove the battery compartment from device and open the cover of the battery compartment as shown to insert to batteries.



Note:
  1. The device can only be powered by ER26500 Li-SOCl2 batteries not alkaline batteries.
  2. Ensure the battery direction is not reversed.
  3. Ensure all replacing batteries are newest; otherwise it may shorten battery life or cause inaccurate power calculation.
  4. The battery should be removed from the device if it is not used for an expended period.
