Hardware Introduction
Packing List
 |
 |
 |
| 1 × VS360 Sensor | 2 × Back Covers | 4 × Ceiling Mounting Kits |
 |
 |
 |
| 2 × 3M Double-sided Tapes | 1 × Warranty Card | 1 × Quick Guide |
Note: If any of the above items are missing or
damaged, please contact your sales representative.
Hardware Overview

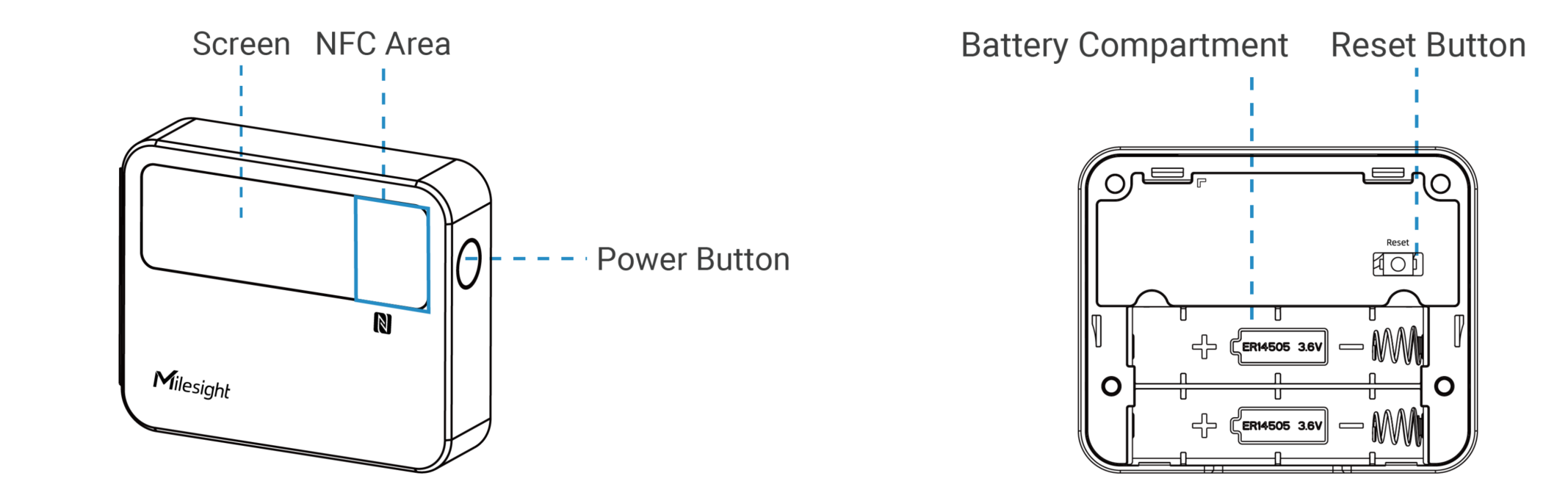

Master Device:
Node Device:
Button Description
Master Device
| Function | Action | Screen |
|---|---|---|
| Power On/Off | Press and hold the power button for 5s | Display “Hello”/“GoodBye” |
| Light Up Screen | Press power button once | Light on |
| Reset Accumulated People Value | After the screen lights up, press and hold on the power button for 2s | Accumulated counting value reset |
| Reset to Factory Default | Press and hold on the reset button for 10s | Display reset frames |
Node Device
| Function | Action | LED Indicator |
|---|---|---|
| Power On/Off | Press and hold on the power button for 5s | Power On: Off → On Power Off: On → Off |
| Check On/Off Status | Press power button once | Light On: device is on Light Off: device is off |

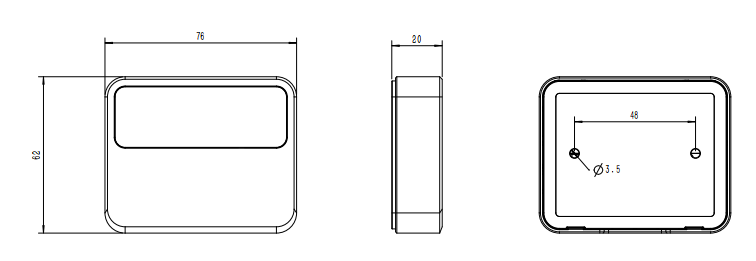

Dimensions (mm)
