Motion Detection

Check the checkbox to enable the Motion Detection function and select the detection mode, the sensitivity ranges from 0 to 10, and set Motion Detection effective time. You can draw the interested area or click the Select All button [Select All] to select all area interested. Here are eight options for alarm action, [Upload Via FTP], [Upload Via Email], [Save Into Storage], [External Output], [Play Audio], [HTTP Notification], [White LED]and[PTZ Motion]. And set alarm setting, then apply the settings.







Table 1. Description of the buttons

Parameters

Function Introduction

General Settings

Enable Motion Detection: Check the checkbox to enable Motion Detection function

Detection Mode: Normal Mode and Advanced Mode are available for the option. When Advanced Mode is selected, users can configure up to 4 detection regions and sensitivity for each detection region.

Note: For this option, please make sure your camera version is Vxx.7.0.79 or above.

Sensitivity: Sensitivity level, 1~10

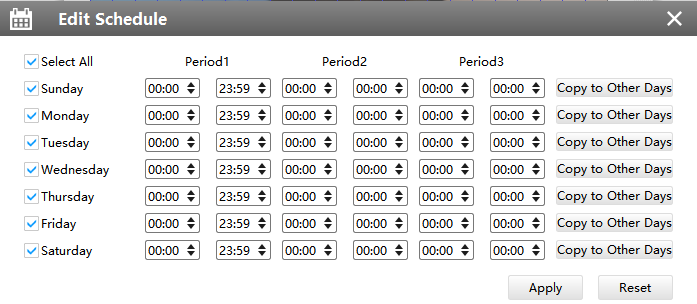

Effective Time: Click [Edit] to set schedule as shown below:

Set Motion Region

 Select All: Click the button, the motion in the area will be detected

Clear All: Click the button, the area drawn before will be removed

Alarm Action

Upload Via FTP: Upload the recording files via FTP

Upload Via Email: Upload the files via Email

Save Into Storage: Save alarm recording files into SD Card or NAS

External Output: If the camera equips with External Output, you can enable the action after configuring the trigger duration

Play Audio: If the camera equips with Speaker, you can enable the action after configuring the audio speaker.

HTTP Notification: Support to pop up the alarm news to specified HTTP URL.

Note:
  • Three HTTP notifications at most can be added to the same event.
  • HTTP Notification supports Basic & Digest authentication.

White LED: When the alarm is triggered, White LED will be turned on to warn the detected objects (Only for Mini PTZ Bullet)

PTZ Motion: When the motion alarm is triggered, PTZ Motion allows the camera to move the lens to the motion trigger position and zoom in

Alarm Setting

Record Video Sections: Six different periods are available(5, 10, 15, 20, 25, 30 sec)

Snapshot: The number of snapshot, from 1 to 5

Snapshot Interval: It cannot be edited unless you choose more than 1 to Snapshot

External Output Action Time: Length of time an alarm lasts, this cannot be edited unless when you enable the External Output on the Alarm Action firstly

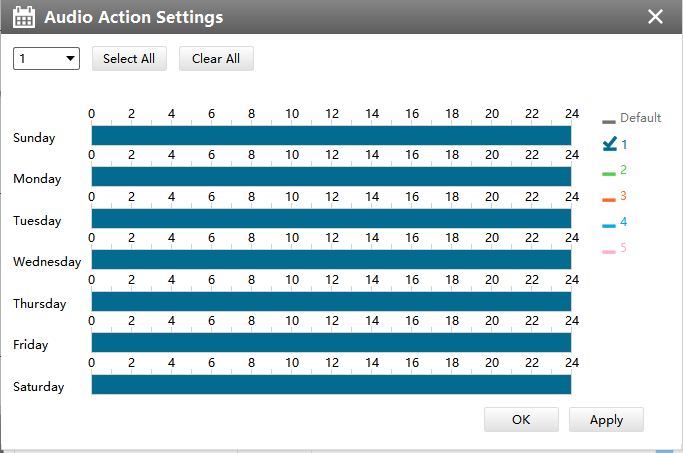

Audio Action Settings: Click [Edit] to set audio action schedule as shown below:



Play Audio Interval: Auto/ 10 seconds/ 30 seconds/ 1 minute/ 5 minutes/ 10 minutes are available

White LED Flash Mode:

  • Twinkle: The White LED will continuous flashing before recovered
  • Always: The White LED will always open before recovered

White LED Flash Time:

The duration of flash

Twinkle from 1 second to 10 seconds

Always from 1 second to 60 seconds

White LED Effective Mode:

  • Always: The White LED Flash Mode will always open when you choose the mode
  • Light Environment: You can choose the option according to light intensity of environment.
    1. Current Light Intensity: show current environment light Intensity;
    2. Effective Light Intensity: you can choose light intensity from 0 to 100.
  • Customize: You can customize effective time of LED Flash Mode

Proportional Zoom Times: Support to zoom proportionally when PTZ Motion is triggered

PTZ Motion Recovery Time: The duration of one alarm. It must be longer than flash time
Note:
  • If you choose other display modes of fisheye under Multi-channel mode except display mode with O or P view, then you can not use the function.
  • You can not use both PTZ Motion and Auto Tracking at the same time.
