Installation

Installation Locations

In order to ensure the best detection and LoRaWAN^® communication work, it is recommended to install device as follows:

Do not mount the device where the temperature is below/above operating range and temperature varies greatly.

Stay far away from any heat source or cold source like oven, refrigerator.
Do not mount the device close to where airflow varies greatly like windows, vent, fan and air conditioner.
Do not mount the device upside down.
Do not place the device right to the window or door. If you have to, you’d better pull the curtain.
It is recommended to install at least 1.5 m high from floor.

Fixed by Screws

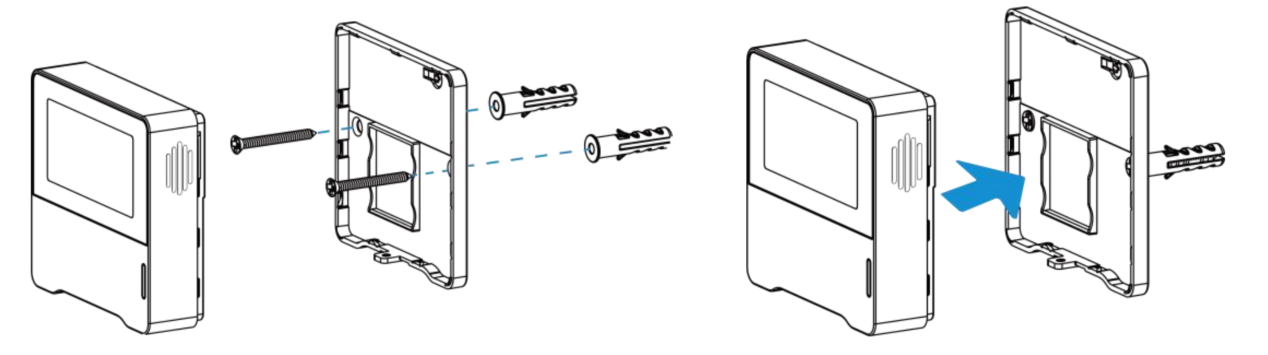

1. Remove the rear cover of the device, screw the wall plugs into the wall and fix the rear cover with screws on it, then install back the device.

2. Fix the bottom of the device to the rear cover with the theft-deterring screw.

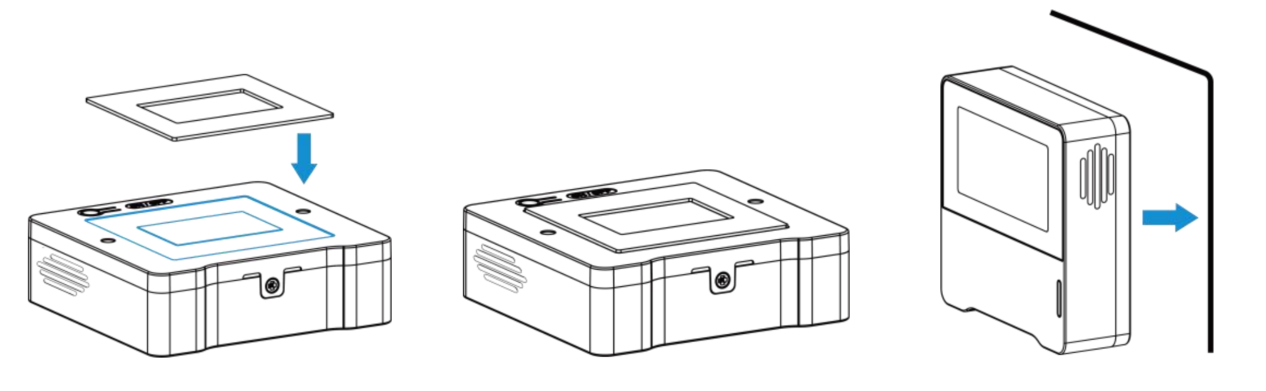

1. Fix the bottom of the device to the rear cover with the theft-deterring screw.

2. Paste 3M double-sided tape to the back of the device, then tear the other side and place it on a flat surface.
