General Settings

General settings include the basic parameters of the device.


Parameter	Description

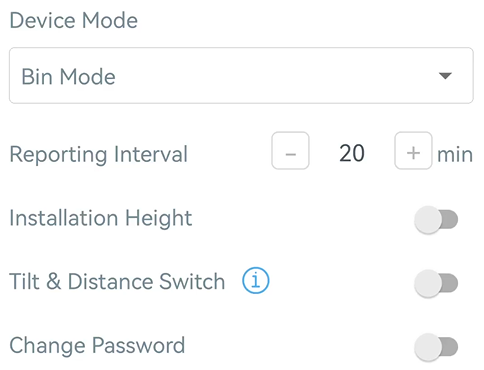

Device Mode	Select from Standard Mode, Bin Mode.
Reporting Interval	Reporting interval of transmitting data to server. Standard Mode/Bin Mode: 30 minutes as default, range: 1~1440 minutes.
Installation Height	Enable or disable the installation height of the device when in Bin Mode. Note: It is suggested to enable this feature if the bin is located under strong light and there are bags inside the garbage bin. If the collected value is above the installation height twice, the sensor will report the installation height.
Value of the Installation Height	Set the installation height between device and the bottom of waste bin. Range: 0.02 - 3.5m.
Tilt & Distance Switch	When detecting that the offset angle is greater than 20 degrees, turn off the distance measurement.
Change Password	Change the password for ToolBox App to write this device.


Parameter	Description

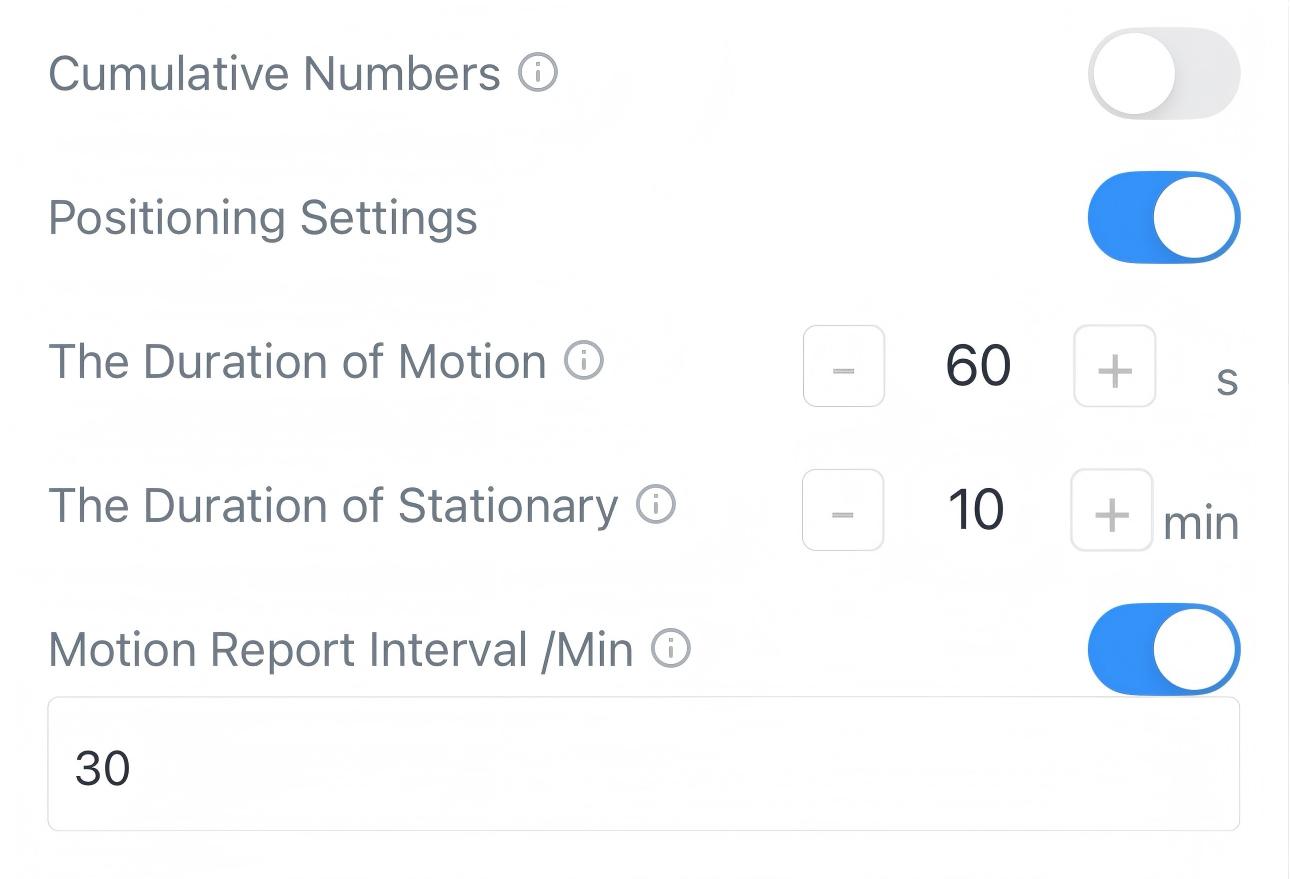

Cumulative Numbers	Store this number of periodic packets to report together.
Positioning Settings	Enable GNSS positioning. When the device is on motion status, it will only upload positioning data instead of distance data.
The Duration of Motion	When device is detected to move beyond this duration, it will upload a GNSS data packet.
The Duration of Stationary	When device is detected to stop moving beyond this duration, it will upload a GNSS data packet.
Motion Report Interval/Min	The interval to report GNSS data during the motion.
