Hardware Introduction
Packing List
 |
 |
 |
 |
|
1 × UC100 Controller |
1 × Type-C Cable (1.2m) & Power Adapter |
1 × Terminal Block |
2 × Wall Mounting Kits |
 |
 |
 |
 |

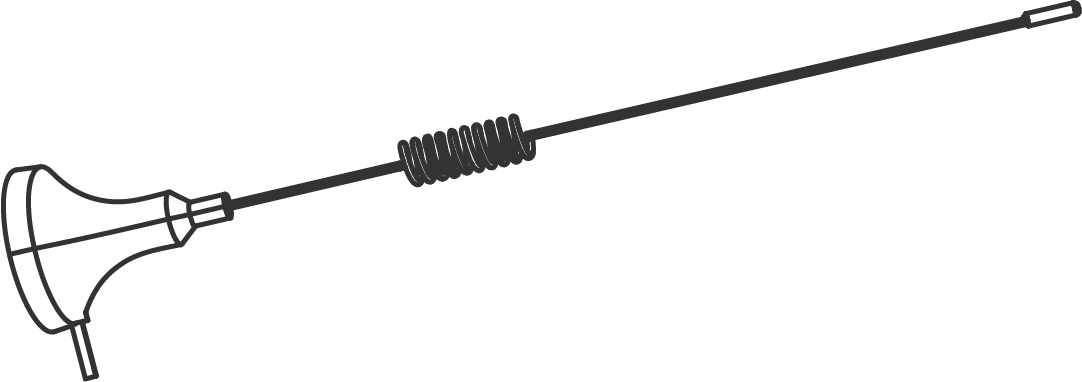

| 1 × LoRaWAN® Magnetic Antenna (EA Version Only) | 1 × Quick Guide |
1 × Warranty Card |

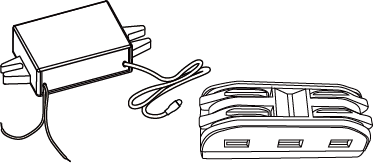

1 × AC/DC-DC Power Converter Kit (Optional) |
Note: If any of the above items is missing or damaged, please
contact your sales representative.

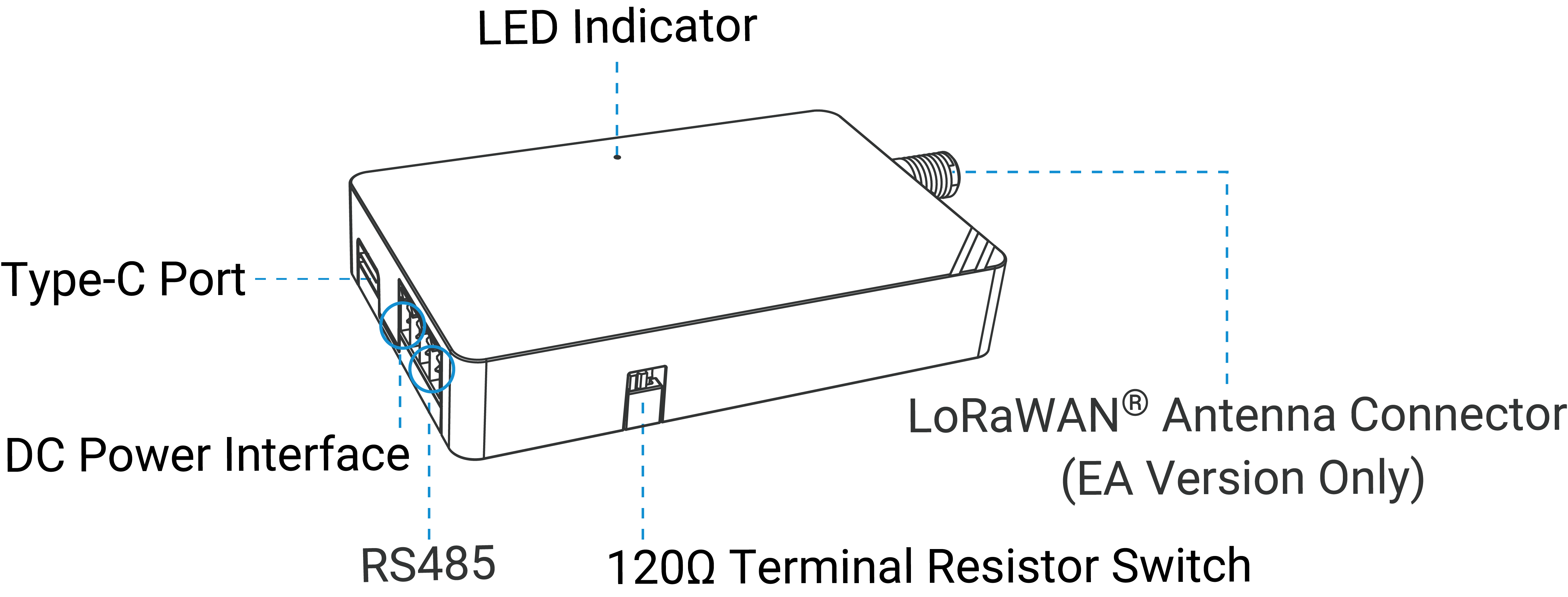

Hardware Overview
120Ω Terminal Resistor Switch: the device will add a 120Ω termination resistor to avoid data-corrupting reflections if RS485 data rate is high or cable length is long.
LED and Reset Button
The reset button is inside the device.
| Function | Action | LED Indicator |
|---|---|---|
|
Work Status |
System is functioning properly |
Static On |
|
Fail to acquire data from data interfaces |
Slowly Blinks |
|
|
Device upgrade or system error |
Static On |
|
|
Reboot |
Press and hold the button for more than 3 seconds. |
Slowly Blinks |
|
Reset |
Press and hold the button for more than 10 seconds. |
Quickly Blinks |

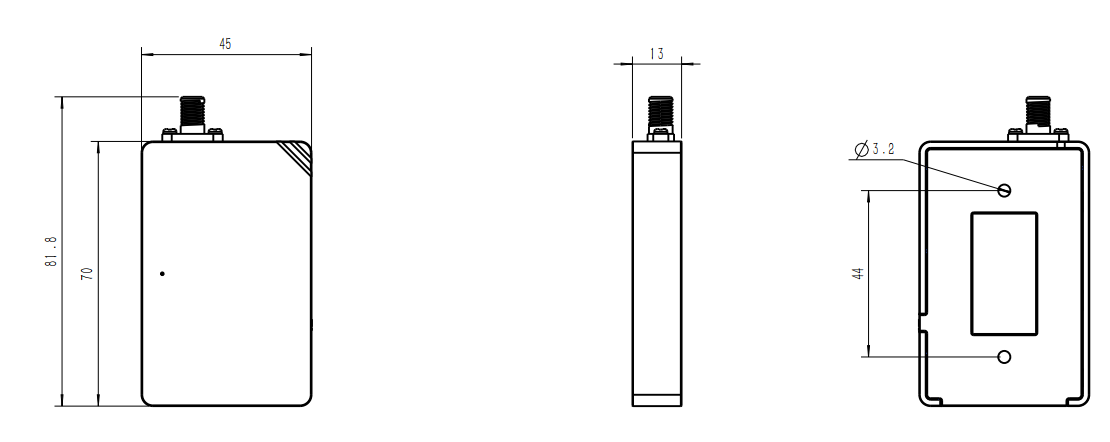

Dimensions (mm)
