Installation

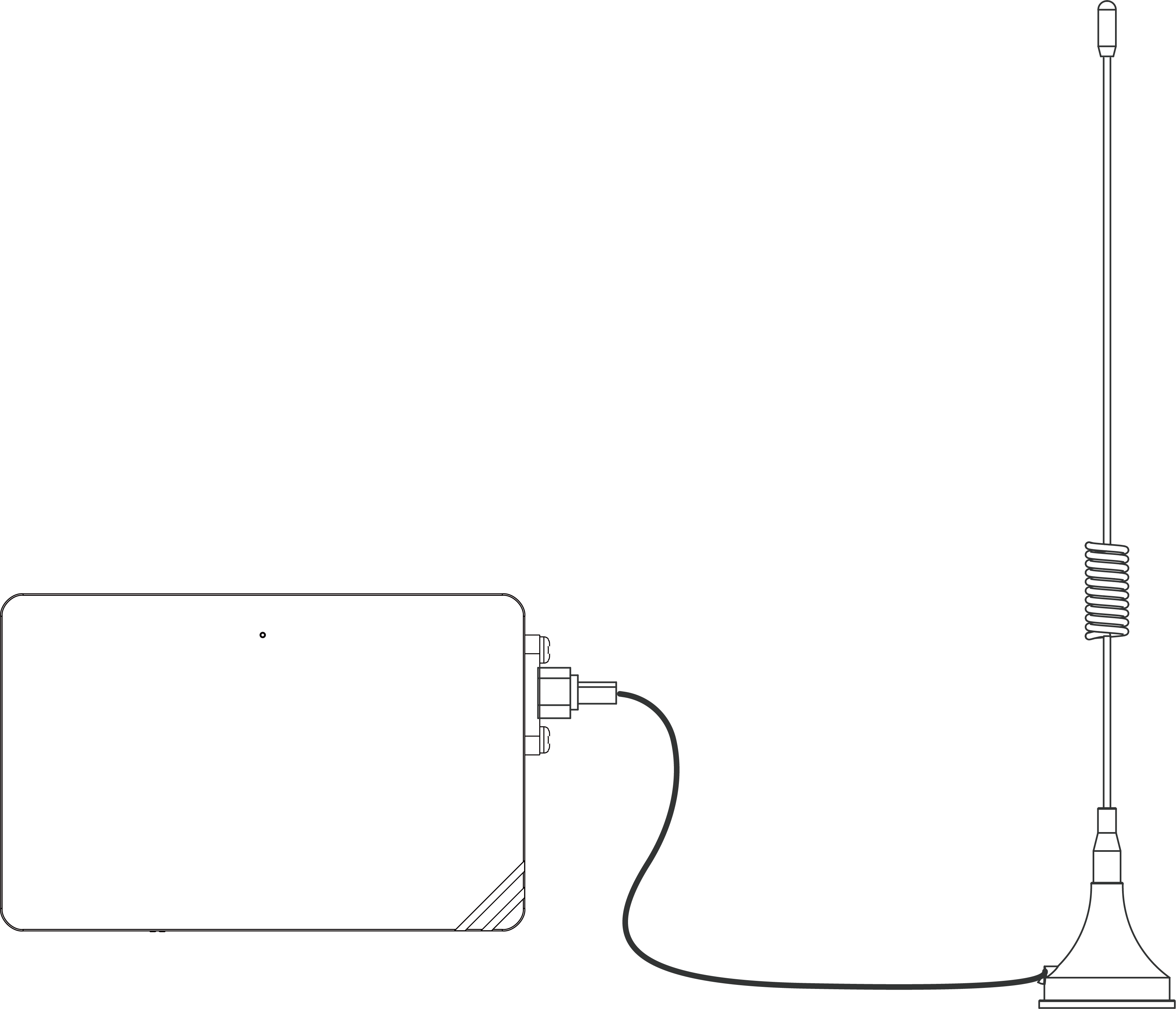

Antenna Installation (EA Version Only)

Rotate the antenna into the antenna connector accordingly.



Note:
  1. The antenna should be installed vertically, with the magnetic base attached to a metal surface.
  2. Keep the antenna away from walls and ensure there are no obstacles around it.
  3. For better coverage, it is recommended to position the antenna at a higher location.
  4. Place the antenna near windows when used indoors.
  5. Keep a distance of at least 50 cm between antennas.

Device Installation

Installation Location

UC100 device can be placed on a desktop or mounted to a wall.

Wall Mounting

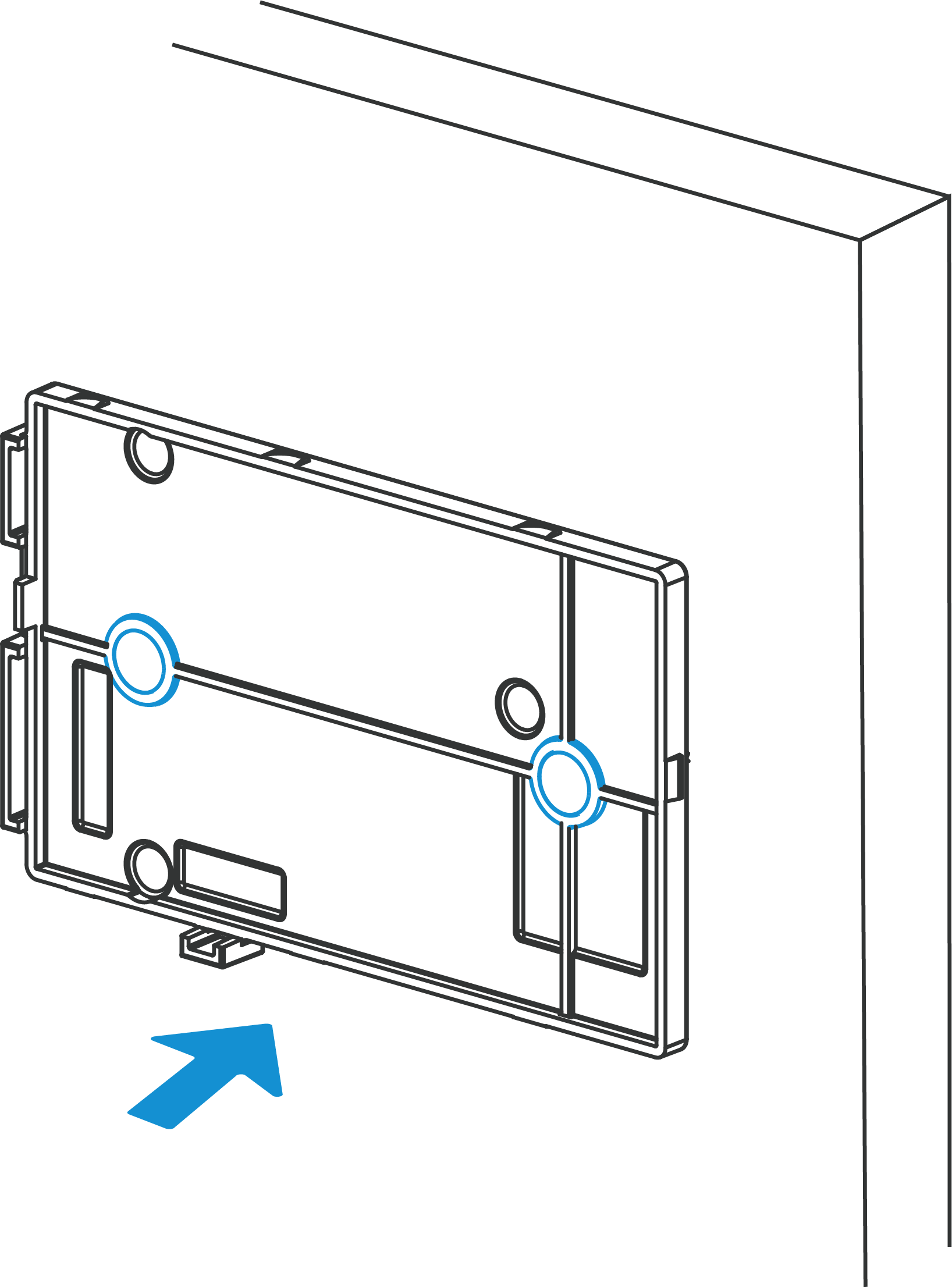

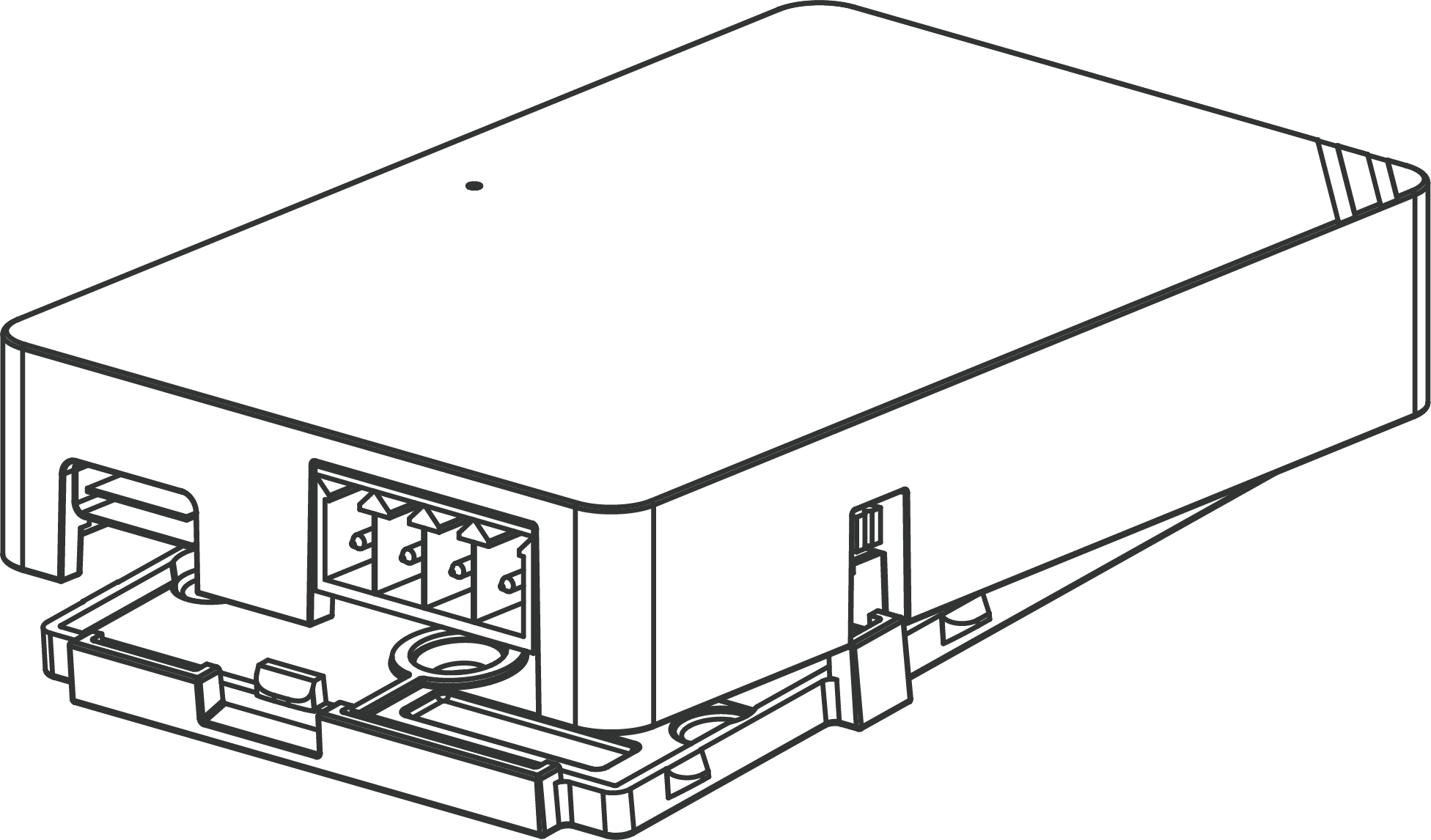

1. Remove the device's back cover and securely insert the wall plugs into the designated drilling positions.

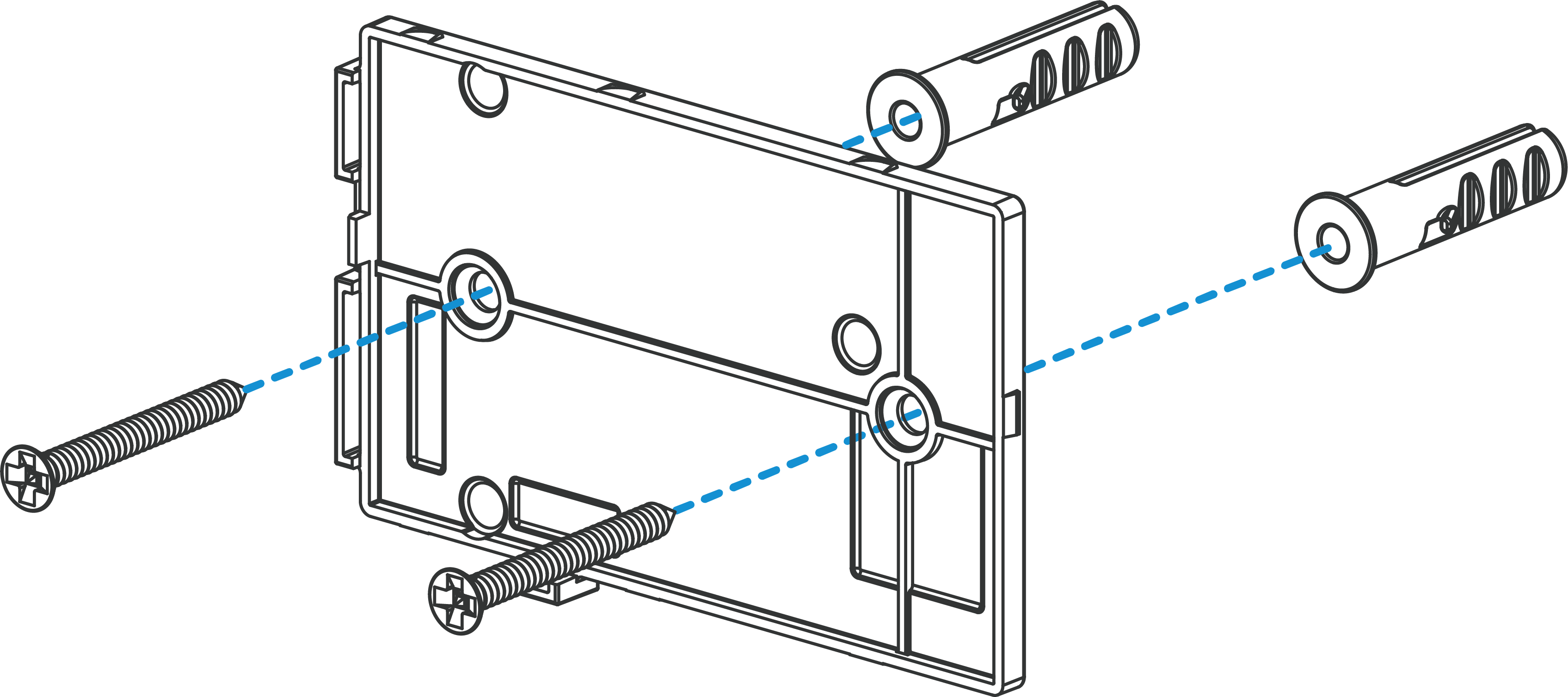

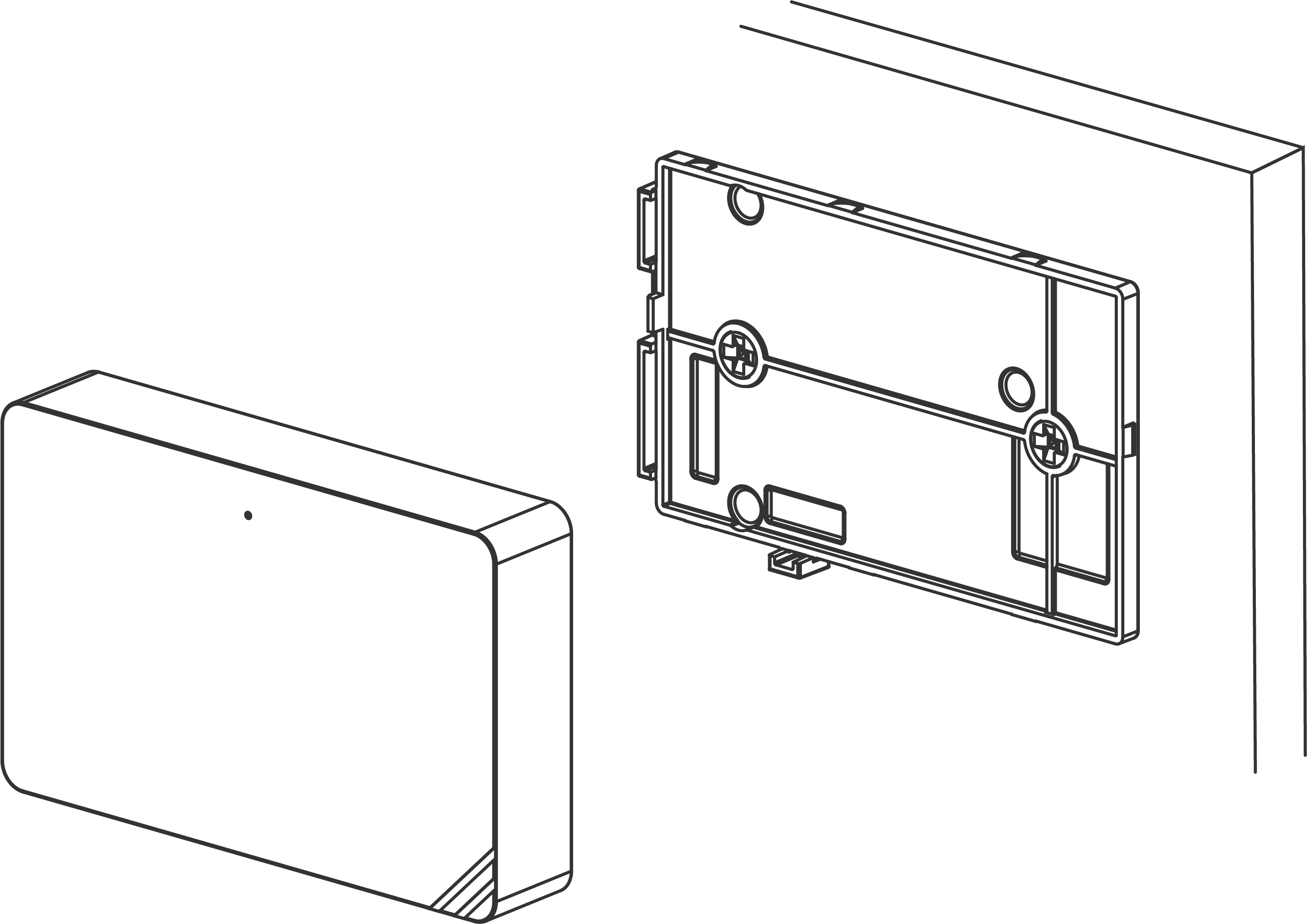

2. Screw the cover on the mounting positions and install back the device.
