ToolBox Configuration Guide

This chapter describe the steps to quickly configure this device to set up the connection with LoRaWAN^® gateway and network server. If you require more advanced settings, please refer to the operation guide chapter.

1. Download ToolBox software from Milesight website.

2. Power on the UC100 device, then connect it to a computer via the Type-C port.

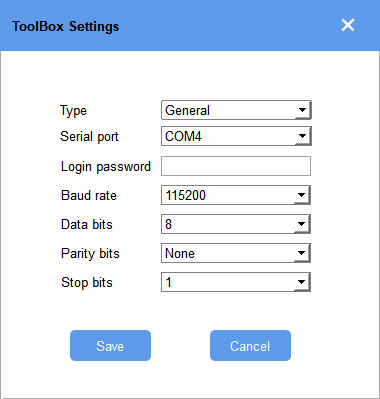

3. Open the ToolBox and select the type as General, then input the password to log in ToolBox. (Default password: 123456).

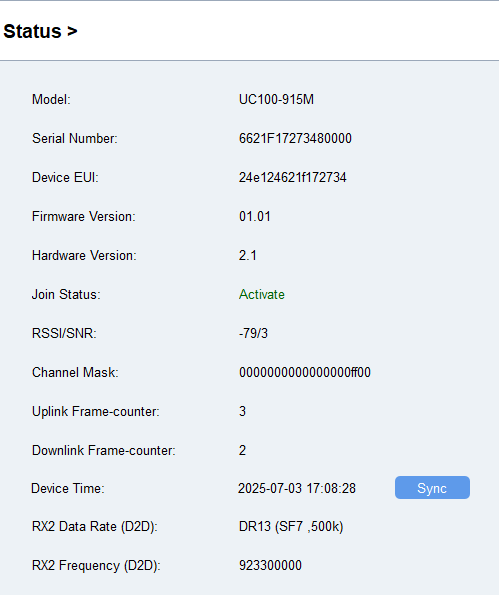

4. After logging in to the ToolBox, you can change device settings.
