Time Settings

It is necessary for device to get the correct time and time zone for schedule plan and time switch controls.

Time Synchronization

Please select one of methods below to sync the time and time zone of the device.

Sync via ToolBox Software

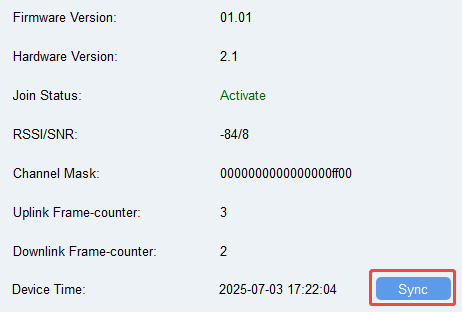

Go to Status page to click Sync to sync the device time with time zone from the computer.

Sync via LoRaWAN®Network Server

Please ensure that the LoRaWAN® network server supports the device time synchronization feature.

  1. Set the LoRaWAN® version of the device to V1.0.3.
  2. Connect the device to the network server. After joining the network, the device will send a DeviceTimeReq MAC command to enquire the time from network server.
Note: This only supports to get the time but not time zone. The time zone can be configured by ToolBox or downlink command.

Daylight Saving Time

UC100 is able to configure the daylight saving time (DST) setting for accurate time control.

Configuration Description:
