LoRaWAN® Settings

LoRaWAN settings are used for configuring the transmission parameters in LoRaWAN® network.

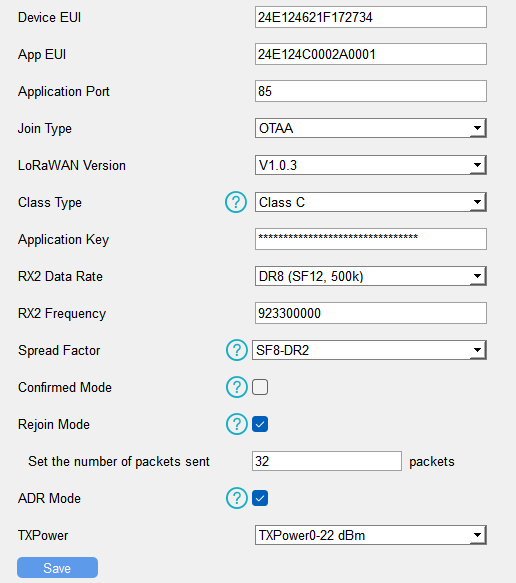

Basic Settings



Parameter Description
Device EUI Unique ID of the device which can be found on the device.
Note: please contact sales for device EUI list if you have many units.
App EUI The default App EUI (join EUI) is 24E124C0002A0001.
Application Port

The port used for sending and receiving data, the default port is 85.
LoRaWAN® Version V1.0.2 and V1.0.3 are available.
Class Type Fixed as Class C.
Confirmed Mode

If the device does not receive ACK packet from network server, it will resend data once.
Join Type OTAA and ABP mode are available.
Note: it's necessary to select OTAA mode if connecting device to Milesight Development Platform.
Application Key
Appkey for OTAA mode, default value: "Device EUI" + "Device EUI" (since Q4 of 2025). Example: 24e124123456789024e1241234567890
Note:
  • The default value of earlier devices is 5572404C696E6B4C6F52613230313823.
  • Please contact sales before purchase if you require random App Keys.
Network Session Key

Nwkskey for ABP mode, the default is 5572404C696E6B4C6F52613230313823.
Application Session Key

Appskey for ABP mode, the default is 5572404C696E6B4C6F52613230313823.
Device Address

DevAddr for ABP mode, default is the 5th to 12th digits of SN.
Rejoin Mode

Reporting interval≤35 mins: the device will send a specific number of LinkCheckReq MAC packets to the network server every reporting interval or every double reporting interval to validate connectivity; If there is no response, the device will re-join the network.

Reporting interval > 35 mins: the device will send a specific number of LinkCheckReq MAC packets to the network server every reporting interval to validate connectivity; If there is no response, the device will re-join the network.
Note:
  1. Only OTAA mode supports rejoin mode.
  2. The actual sending number is Set the number of packets sent +1.
ADR Mode Enable or disable network server to adjust Spreading Factor, Bandwidth an Tx Power to optimize data rates, airtime and energy consumption in the network.
Spreading Factor If ADR mode is disabled, the device will send uplink data following this SF parameter. The higher the spreading factor, the longer the transmission distance, the slower the transmission speed and the more the consumption.
Tx Power Tx power (transmit power) refers to the strength of the outgoing signal transmitted by the device. This is defined by LoRa alliance.
RX2 Data Rate

RX2 data rate to receive downlinks or send/receive D2D commands.
RX2 Frequency

RX2 frequency to receive downlinks or send/receive D2D commands. Unit: Hz

LoRaWAN® Frequency Settings

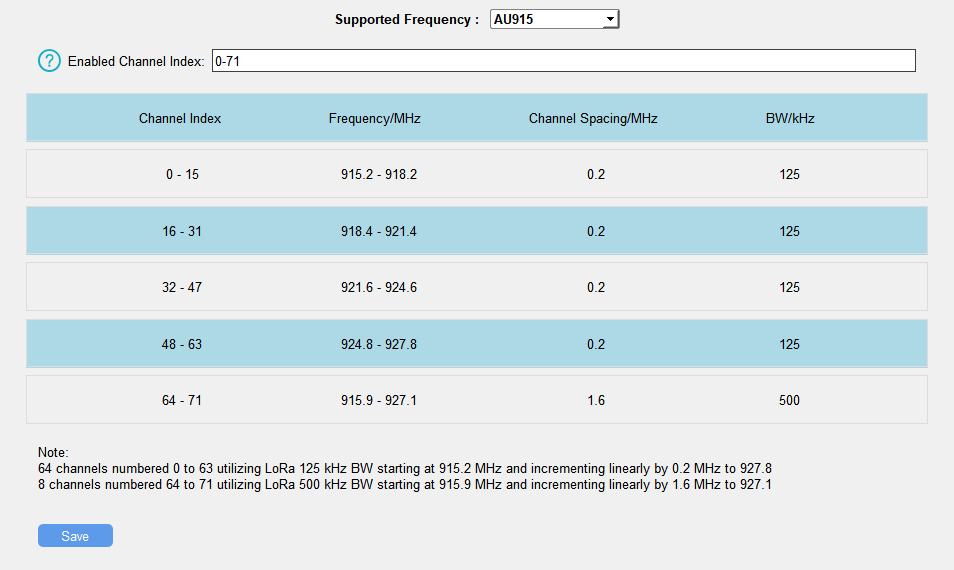

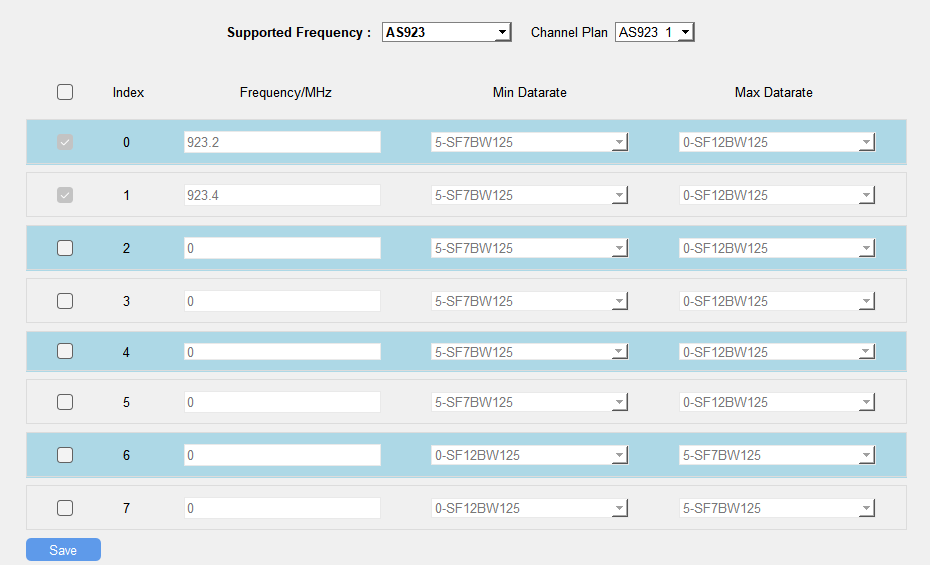

Go to LoRaWAN Settings > Channel to select supported frequency and select channels to send uplinks. Make sure the channels match what you set in the LoRaWAN® gateway.

If frequency is one of CN470/AU915/US915, enter the index of the channel to enable in the input box, making them separated by commas.

Examples:

1, 40: Enabling Channel 1 and Channel 40

1-40: Enabling Channel 1 to Channel 40

1-40, 60: Enabling Channel 1 to Channel 40 and Channel 60

All: Enabling all channels

Null: Indicate that all channels are disabled
