Access the Sensor

VS121 sensor provides user-friendly web GUI for configuration and users can access it via Wi-Fi connection. The recommended browsers are Internet Explorer, Firefox, Chrome, Microsoft Edge, Safari. The default IP of sensor is 192.168.1.1, and default SSID is Workplace Sensor_XXXXXX (can be found on the label).
Note: Please ensure the device is connected to a power source before connecting.

Access without Plugin

Step 1: Enable the Wireless Network Connection on your computer and search for corresponding access point, then connect computer to this access point.

Step 2: Open the Browser (except Internet Explorer), and type 192.168.1.1 to access the web GUI.

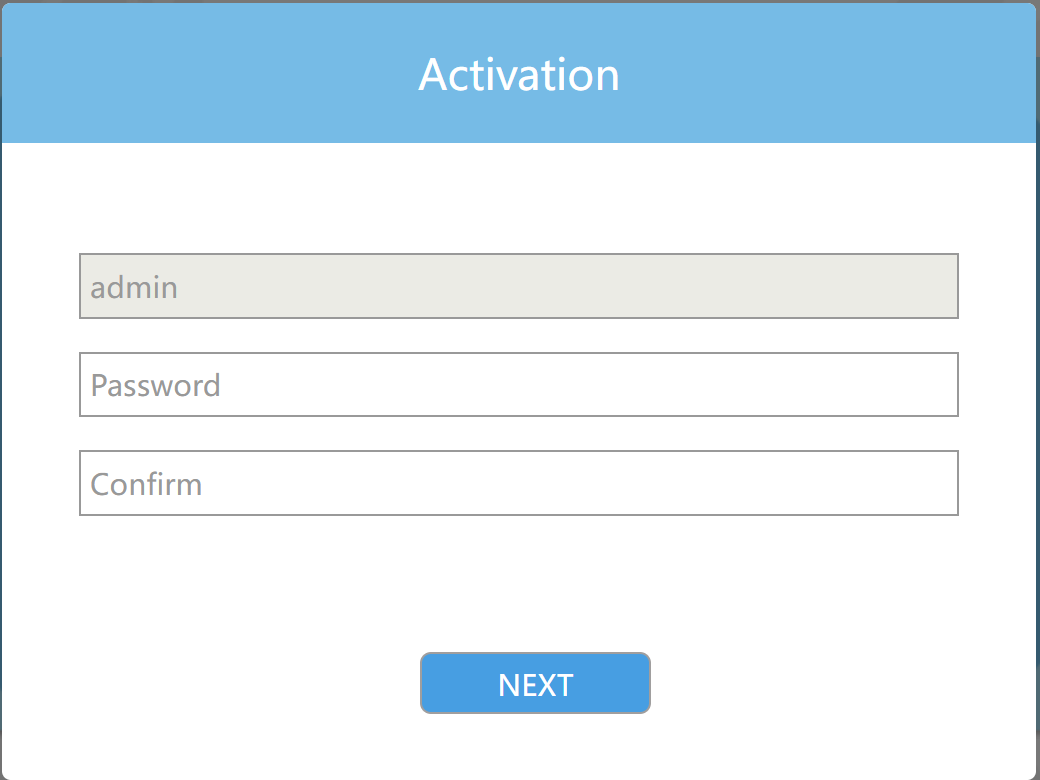

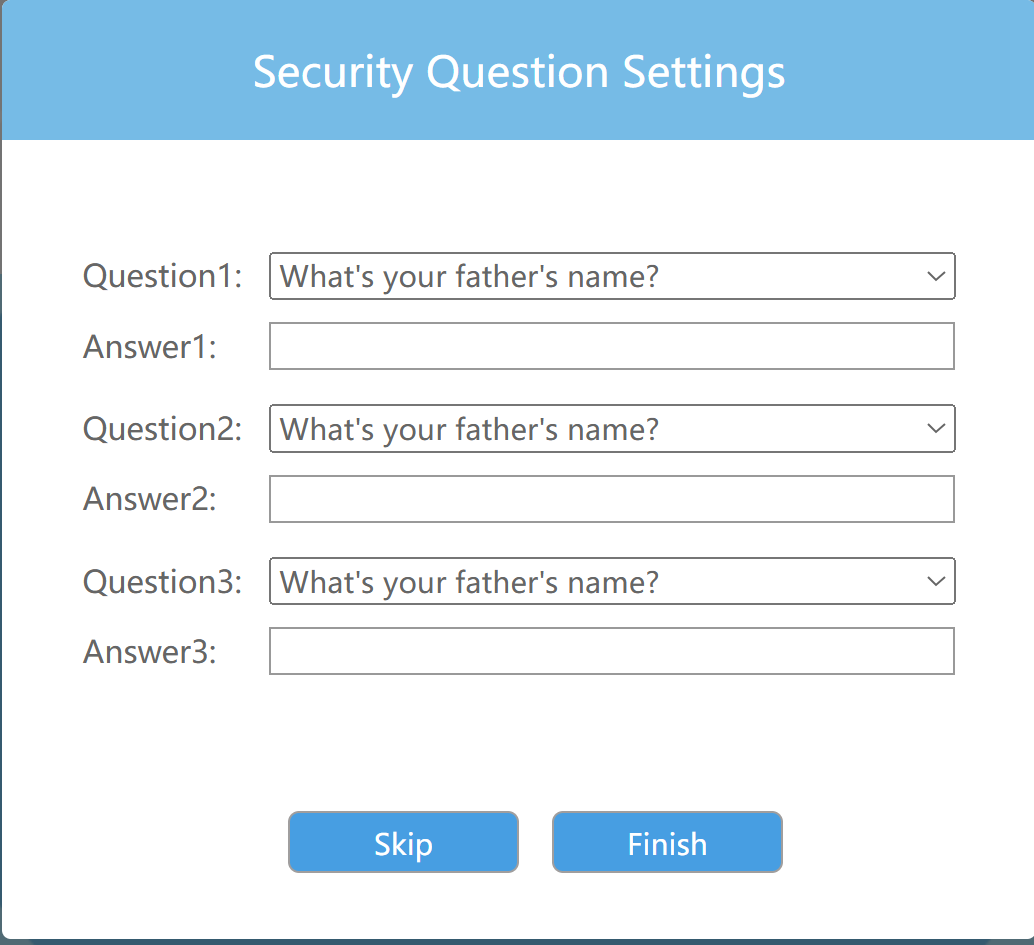

Step 3: Users need to set the password and three security questions when using the sensor for the first time.

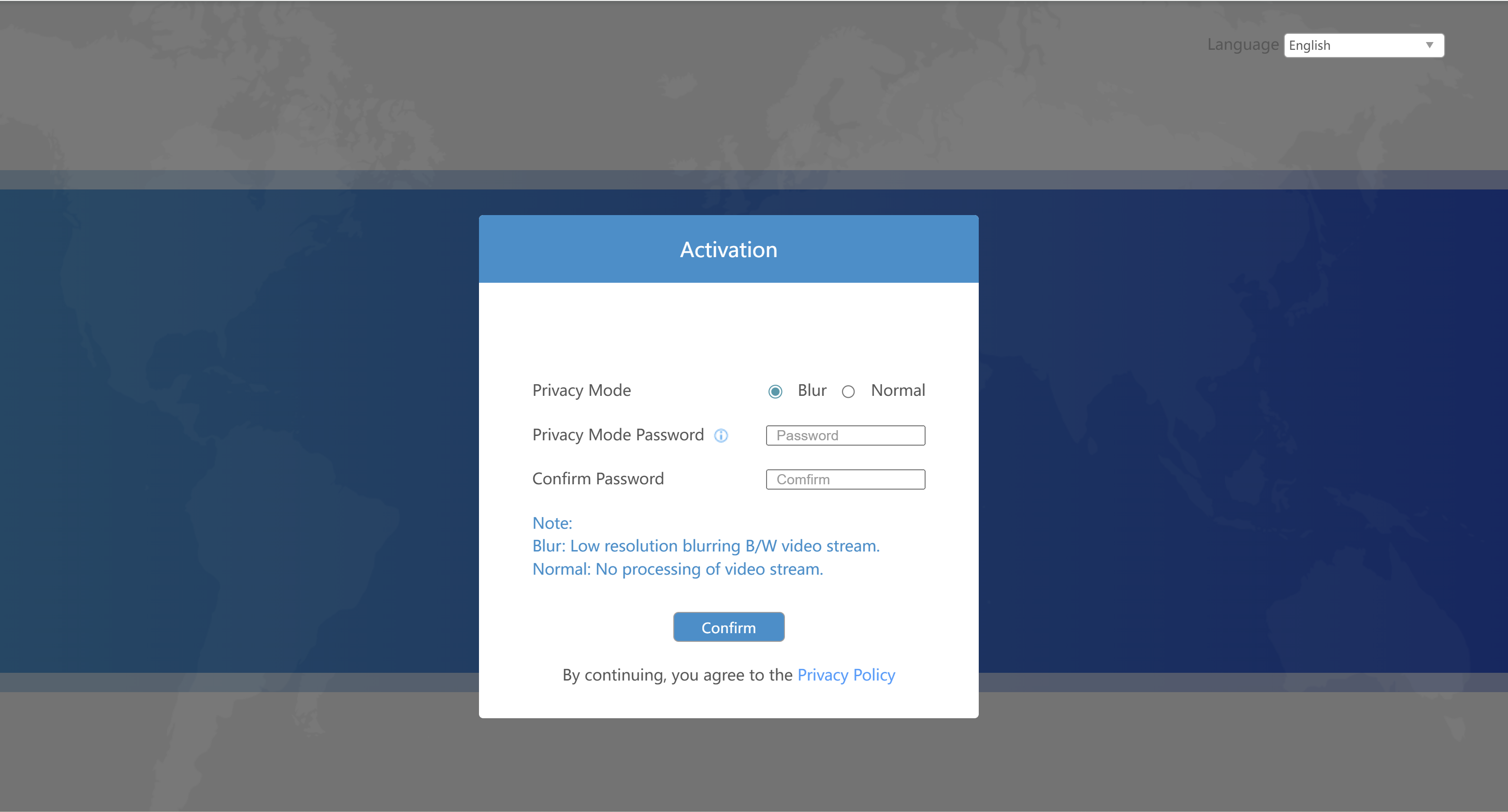

Step 4: Select the Privacy Mode for the live view display.

If you would like to switch modes in the future, please go to Privacy Settings.

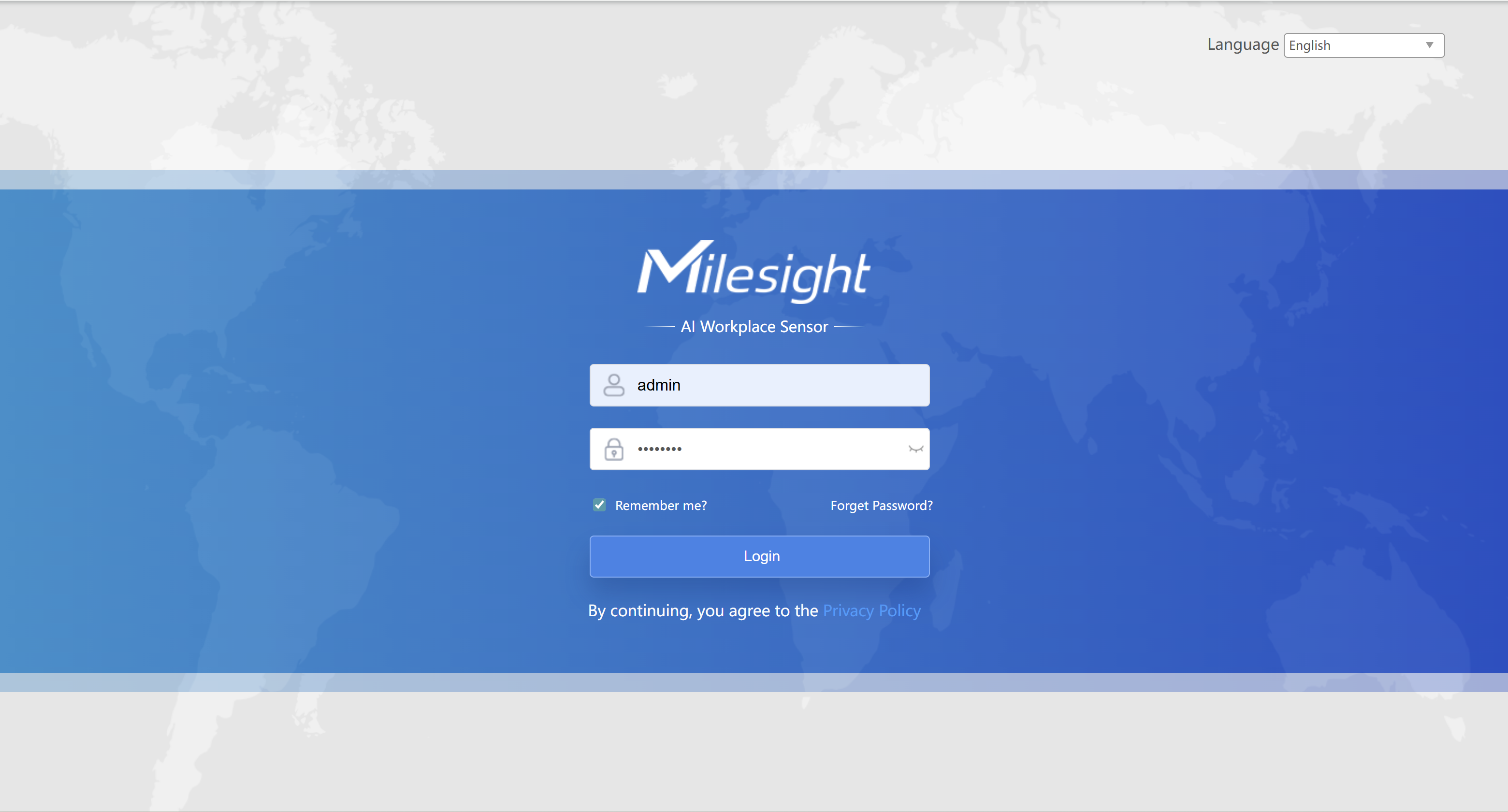

Step 5: After configuration, log in with username (admin) and custom password.

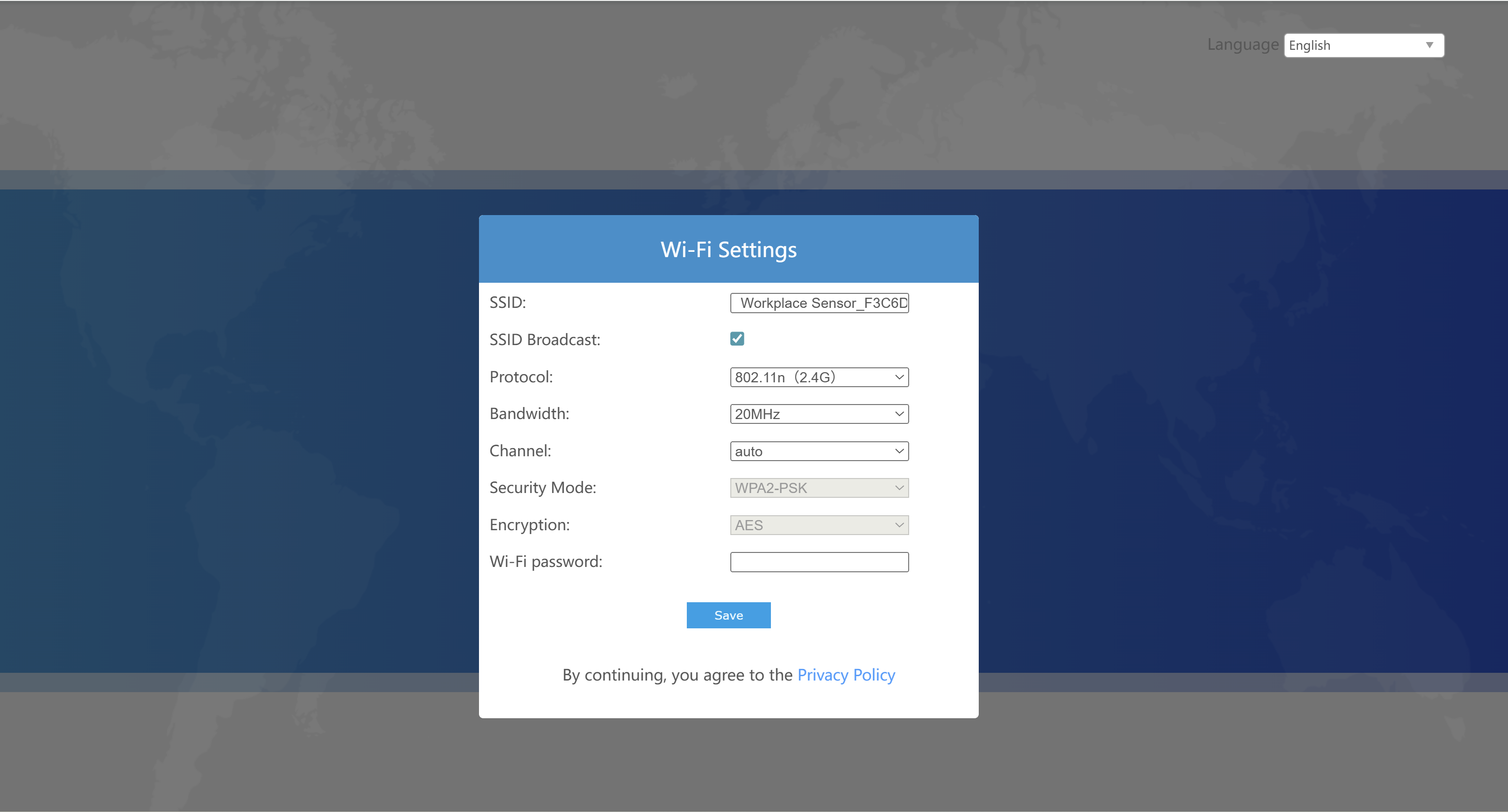

Step 6: Set the Wi-Fi password.

Note:
  1. Login password and Wi-Fi password must be 8 to 63 characters long and contain numbers, lowercase letters, uppercase letters and special characters. If the password is entered incorrectly five times, the account will be locked for 10 minutes.
  2. It is recommended that users regularly update their passwords to enhance device security and prevent unauthorized access.
  3. You can click the “forgot password” in login page to reset the password by answering three security questions when you forget the password if you set the security questions in advance.

Access with Plugin

For IE browser access, users need to install the MsActiveX firstly. You can refer the steps as follows:

Step 1: Launch the IE browser and enter the IP address of the sensor.

Step 2: Enter the user name and custom password and click "Login".

Step 3: At the first time to log in the device, the browser will prompt to install Controls, please click “Click here to download and install controls manually” as shown below:

Note: During installing the controls, please keep the browsers close.

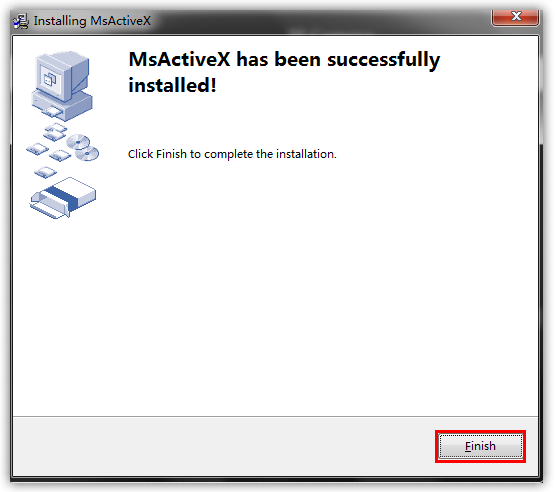

Step 4: Follow the prompts to install the Controls, when it`s finished, it will pop out a window as shown below. Please click “Finish” and refresh the browser, then you will see the video.

If IE9 or higher version browser is used, it is suggested that the web link should be added as a trusted site. See the instructions as follows:

Step 1: Start the IE9 or higher version browser, and select “Tools”🡪 “Internet Options”.

Step 2: Select “Security” to “Trusted”.

Step 3: Enter the IP address of the device in the blank and click “Add”.

Step 4: Enter the IP address. After logging on web GUI successfully, user is allowed to view live video.
