Validation

Video validation function can assist users in verifying the accuracy of people counting by setting up a video recording task.

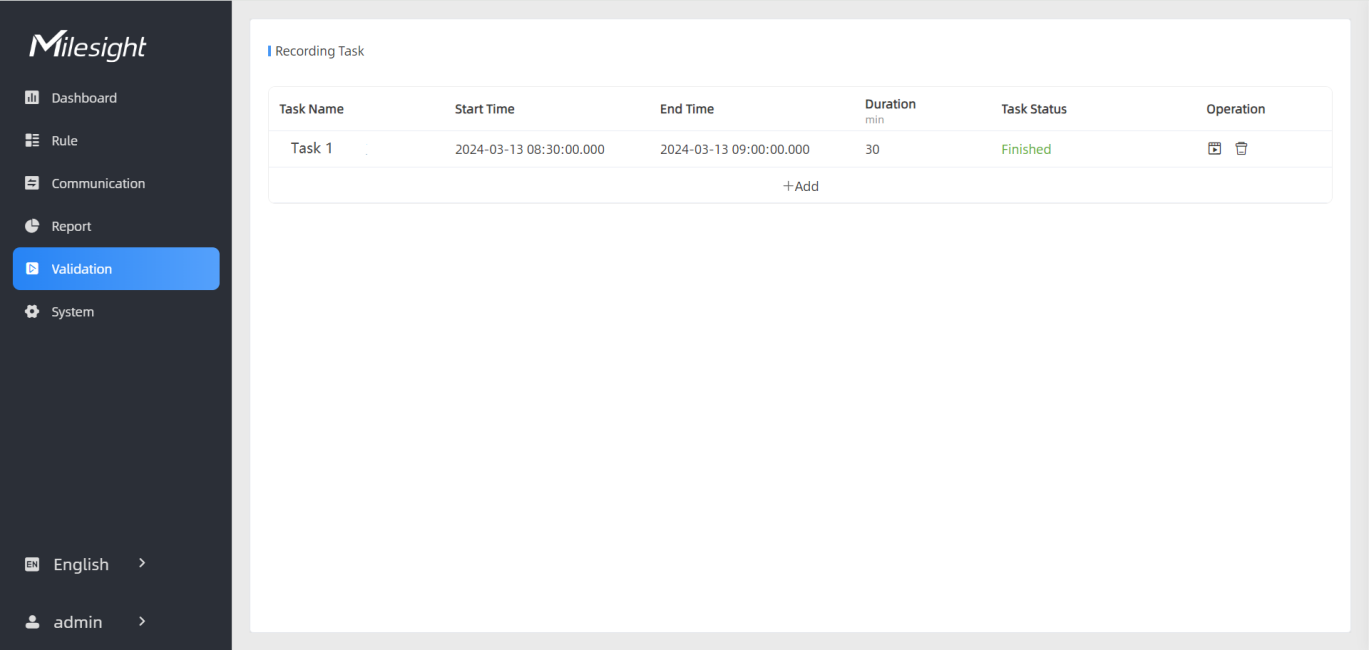

Parameters	Description
Task Name	Show the task name.
Start/End Time	Show the start time and end time of this video.
Duration	Show the length of the video.
Task Status	Show the video task status.
Operation	Click to check the video details, stop recording or delete the task.
+Add	Click to add a video task. One device can add up to 24 tasks.

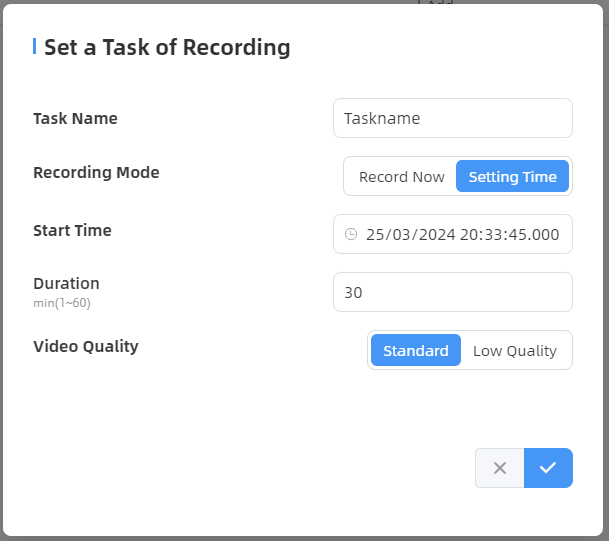

Parameters	Description
Task Name	Customize a name for this task.
Recording Mode	Record Now or Setting Time is optional.
Start Time	Set the start recording time.
Duration	Set the duration of the recording, the duration of all tasks should not be more than 240 minutes.
Video Quality	When video quality is low, the video size will be smaller and quicker to download.

Note:

Only one video task can be performed at a time, please delete the previous task before creating a new one.
Detection rules and ToF frequency parameters cannot be modified during the recording process.
If the validation videos need to be played locally, please use the specialized player provided by Milesight: Milesight VS Player.

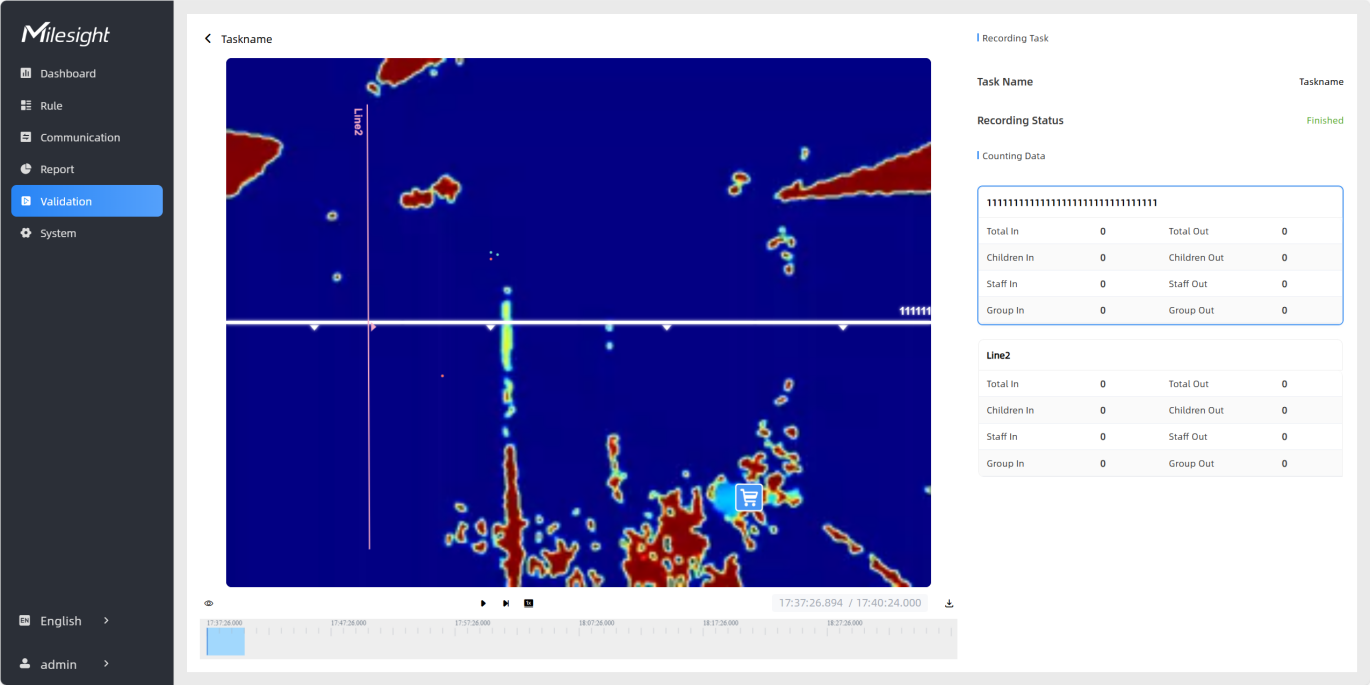

Parameters		Description
Edit Preview Layout	Visual Configuration	Show/Hide relevant rule in the recording footage.
	AI Result	Show/Hide track line in the recording footage. Real-time Track Line: real-time trajectory line of the targets Static Track Line: historical trajectory line of the targets Shopping Cart: historical trajectory points of the shopping carts
	Other	Show/Hide track points in the recording footage.
Playback Button		Rewind/Pause/Play/Forward(supports switching between 0.5x, 1x, 2x, and 4x playback speed).
		Start time and end time of the recording.
		Download video stream footage to check problem.

Note: The playback progress bar of video stream footage highlights the video frame where the data changes.
