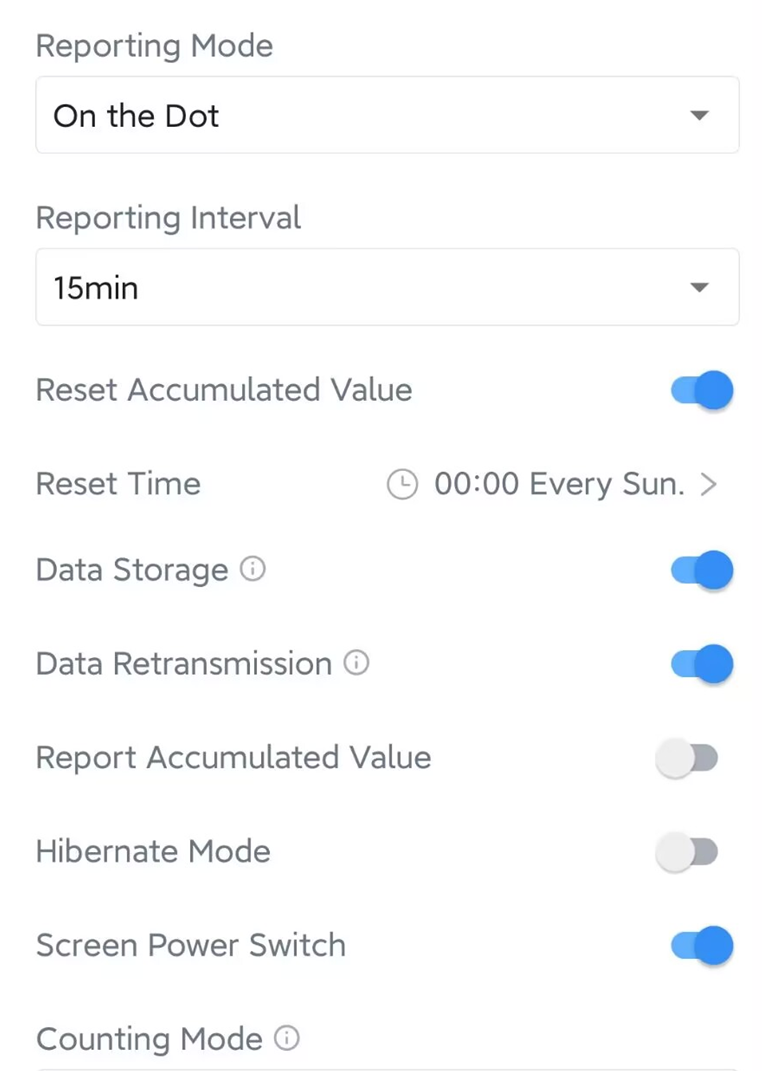

General Settings

Parameters	Description
Reporting Mode	Select the periodic reporting mode: "On the Dot" or "From Now On". On the Dot: Report at regular time marks. For example, if the current time is 0:07 and the interval is set to 10 minutes, reports will be sent at 0:10, 0:20, 0:30, etc. From Now On: Start reporting immediately and continue at regular intervals from that point forward.
Reporting Interval	The time interval for reporting people counting data and battery level to the network server. Default: 10 minutes.
Reset Accumulated Value	Enable or disable automatic reset of accumulated in/out counting values. Before resetting the accumulated value, the device reports the current accumulated value once, and then clears it. Note: the device will reset automatically when accumulate counting values reaches 65535 even this option is disabled.
Reset Time	The time to reset accumulated in/out counting values. Note: The cumulative value will be reported once before reset.
Data Storage	Disable or enable to store periodic report data locally. The stored data can be exported as CSV format file and saved to smartphone via ToolBox. Note: It is necessary to sync the time to ensure the data is stored in correct time. The device will still store the data even the network status is de-activated. ToolBox App can only export the last 14 days' data at most.
Data Retransmission	Disable or enable data retransmssion. When the device detects the network status is de-activated via Rejoin Mode, the device will record a data lost time point and re-transmit the lost data after device re-connects to the network. Note: This setting only takes effect when Data Storage is enabled. If the device is rebooted or re-power when data retransmission is not completed, the device will re-send all retransmission data again after device is reconnected to the network. If the network is disconnected again during data retransmission, it will only send the latest disconnected data. The default report data retransmission interval is 600s, this can be changed via downlink command. The reported format of retransmission data will include timestamps and is different from periodic report data. This setting will increase the uplink frequencies and shorten the battery life.
Report Accumulated Value	Disable or enable to report accumulated counting values in periodic packets.
Hibernate Mode	Disable or enable Hibernate mode and configure the Hibernation Period. It will stop counting and reporting when hibernating.
Hibernate Period	Set hibernation period.
Screen Power Switch	Enable or disable screen display. The display content includes battery level, people counting and align status.
Counting Mode	High Traffic Period Mode: Suitable for scenarios with high foot traffic. Low Traffic Period Mode: Suitable for scenarios with low foot traffic.
Change Password	Change the password for ToolBox App to write this device.

Reporting Mode

Select the periodic reporting mode: "On the Dot" or "From Now On".

On the Dot: Report at regular time marks. For example, if the current time is 0:07 and the interval is set to 10 minutes, reports will be sent at 0:10, 0:20, 0:30, etc.

From Now On: Start reporting immediately and continue at regular intervals from that point forward.

Reporting Interval

The time interval for reporting people counting data and battery level to the network server. Default: 10 minutes.

Reset Accumulated Value

Enable or disable automatic reset of accumulated in/out counting values. Before resetting the accumulated value, the device reports the current accumulated value once, and then clears it.

Note: the device will reset automatically when accumulate counting values reaches 65535 even this option is disabled.

Reset Time

The time to reset accumulated in/out counting values.

Note: The cumulative value will be reported once before reset.

Data Storage

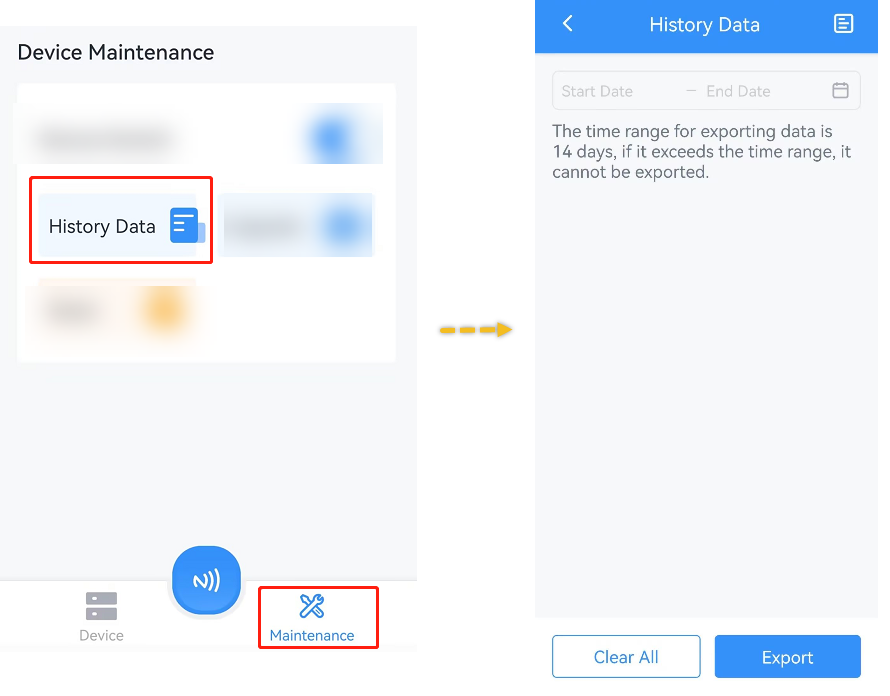

Disable or enable to store periodic report data locally. The stored data can be exported as CSV format file and saved to smartphone via ToolBox.

Note:

It is necessary to sync the time to ensure the data is stored in correct time.
The device will still store the data even the network status is de-activated.
ToolBox App can only export the last 14 days' data at most.

Data Retransmission

Disable or enable data retransmssion. When the device detects the network status is de-activated via Rejoin Mode, the device will record a data lost time point and re-transmit the lost data after device re-connects to the network.

Note:

This setting only takes effect when Data Storage is enabled.
If the device is rebooted or re-power when data retransmission is not completed, the device will re-send all retransmission data again after device is reconnected to the network.
If the network is disconnected again during data retransmission, it will only send the latest disconnected data.
The default report data retransmission interval is 600s, this can be changed via downlink command.
The reported format of retransmission data will include timestamps and is different from periodic report data.
This setting will increase the uplink frequencies and shorten the battery life.

Report Accumulated Value

Disable or enable to report accumulated counting values in periodic packets.

Hibernate Mode

Disable or enable Hibernate mode and configure the Hibernation Period. It will stop counting and reporting when hibernating.

Hibernate Period

Set hibernation period.

Screen Power Switch

Enable or disable screen display. The display content includes battery level, people counting and align status.

Counting Mode

High Traffic Period Mode: Suitable for scenarios with high foot traffic.

Low Traffic Period Mode: Suitable for scenarios with low foot traffic.

Change Password

Change the password for ToolBox App to write this device.
