Hardware Introduction
Packing List
 |
 |
 |
 |
|

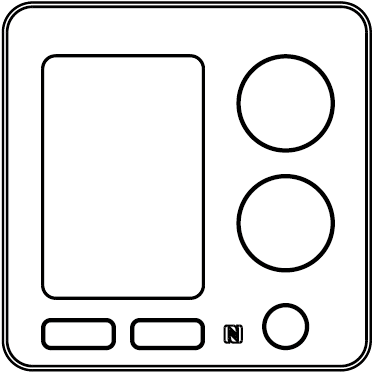

1 × Smart Fan Coil Thermostat |

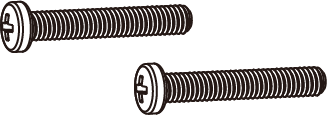

2 × Wall Mounting Screws (M4*25) |
1 × 2-pin Signal Cable |
1 × Anti-theft Fixing Screw (M2*4) |
 |
 |
 |
 |
| 1 × Quick Guide |
1 × Warranty Card |

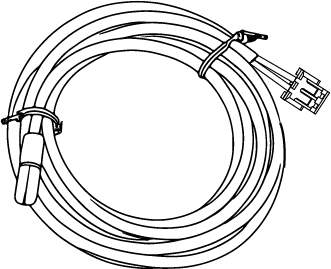

1 × NTC Temperature Sensor (Optional) |

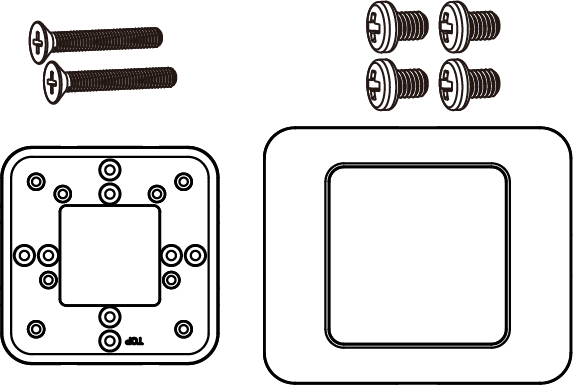

1 × Wall Plate Kit (Optional) |
Note: If any of the above items is missing or damaged, please
contact your sales representative.

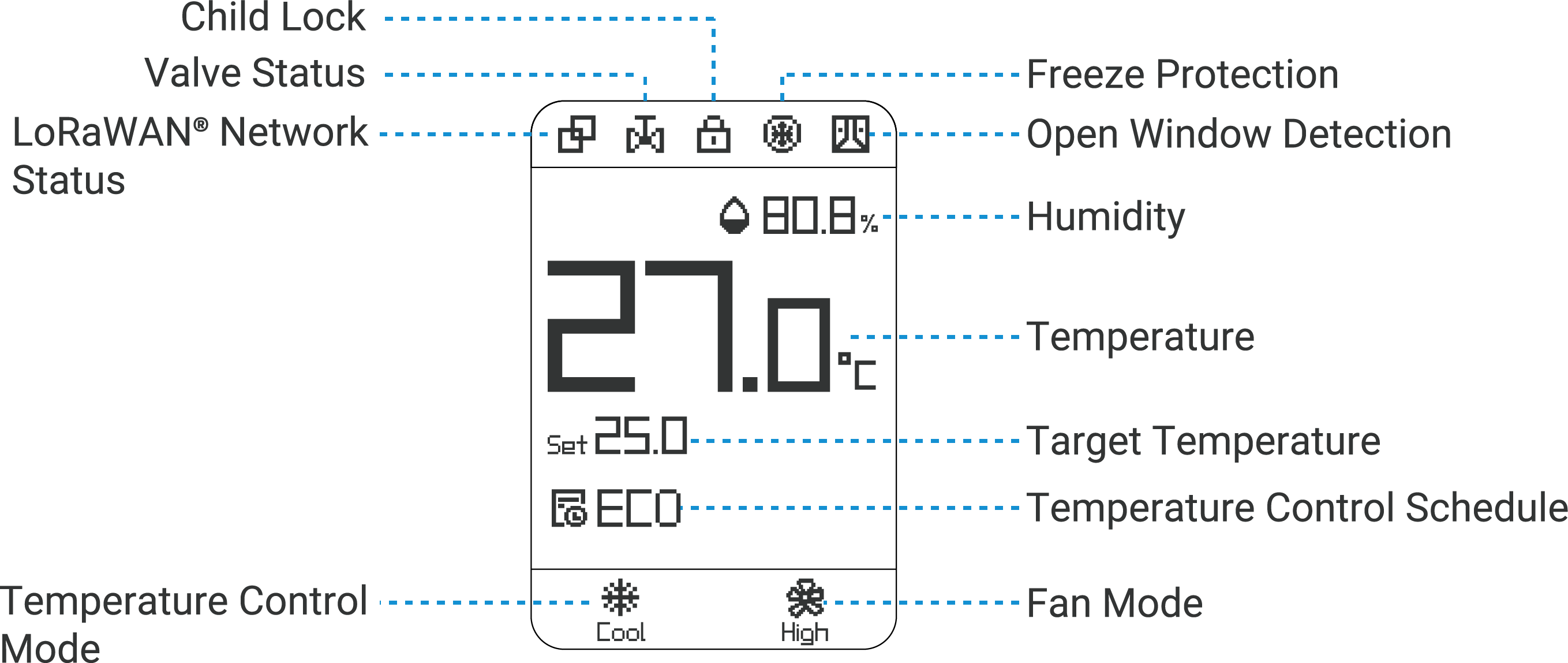

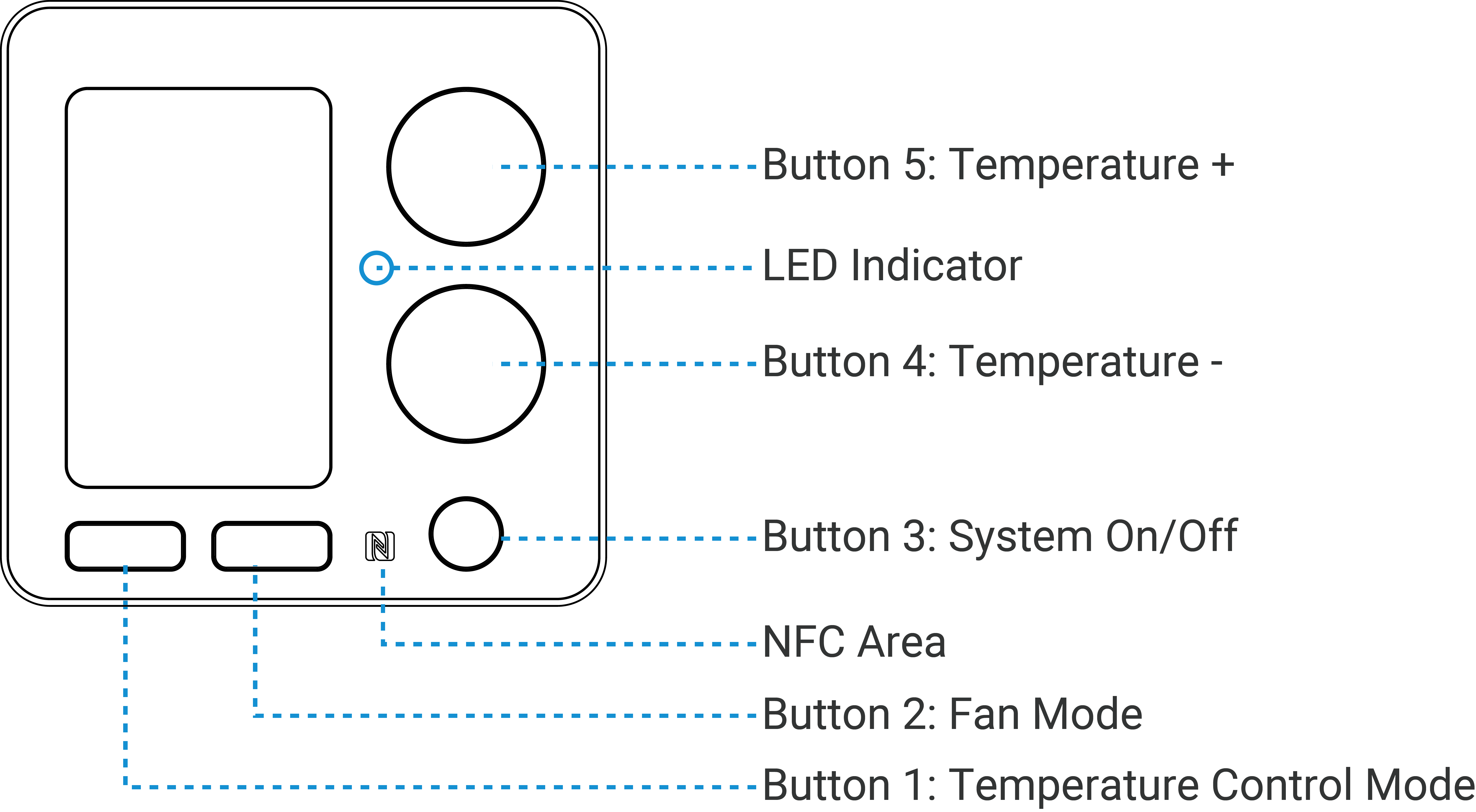

Hardware Overview
LED Patterns
| Function | Operation | LED Indicator |
|---|---|---|
| Reboot | Press and hold the button 1 and 3 for more than 3s. | Slowly Blinks |
| Reset | Press and hold the button 1 and 3 for more than 10s. | Quickly Blinks |

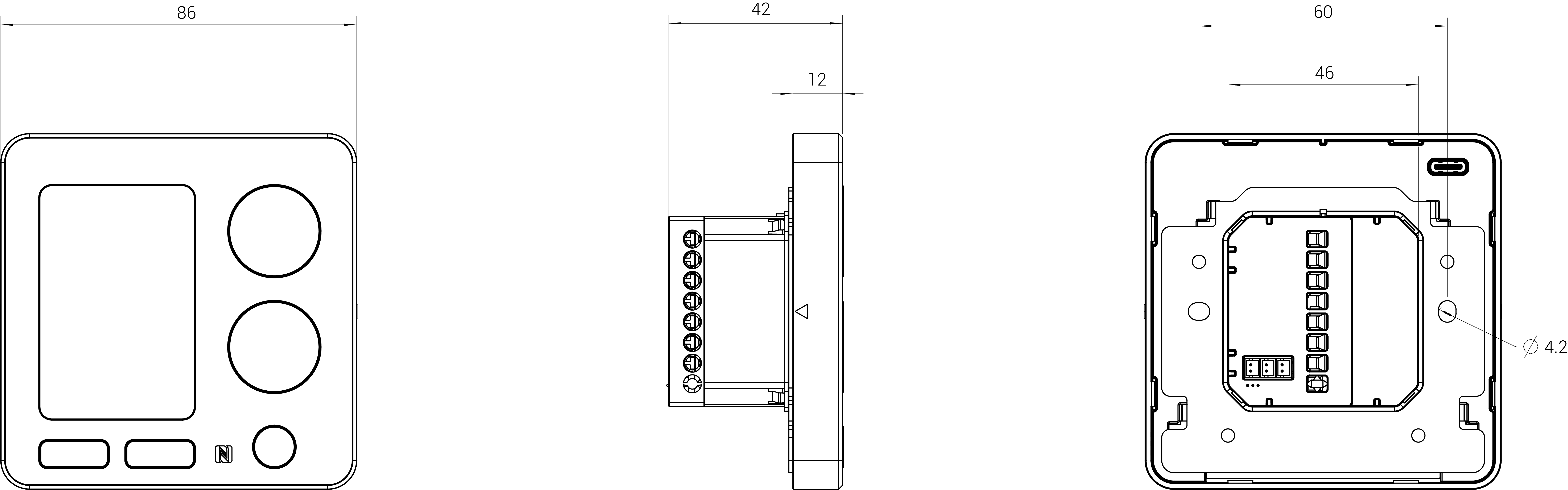

Dimensions (mm)
- Wall Plate
-
