General Settings

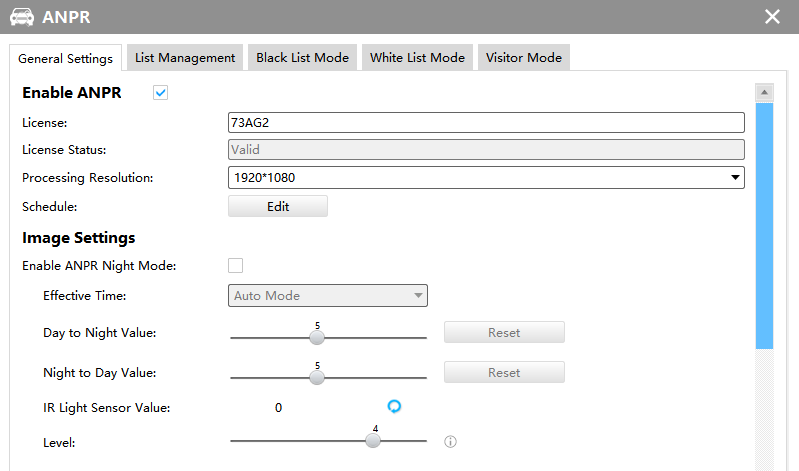

Step1:Enable ANPR function;
  • License: Generated by camera’s information
  • License Status: Show present license status, including Valid, Invalid, Expired, Inactivated

Step2: Select processing resolution. The further distance you detect, the higher resolution is needed. 1280*720 by default;

Step3: Set Schedule.

Step4: Enable ANPR Night Mode, then you can set ANPR Night Mode Effective Time. There are two options available: Customize and Auto Mode. Auto Mode option supports automatic switch between day and night;

Note: Make sure your camera’s version is 4X.7.0.77 or above so that the Auto Mode is available for Effective Time option.

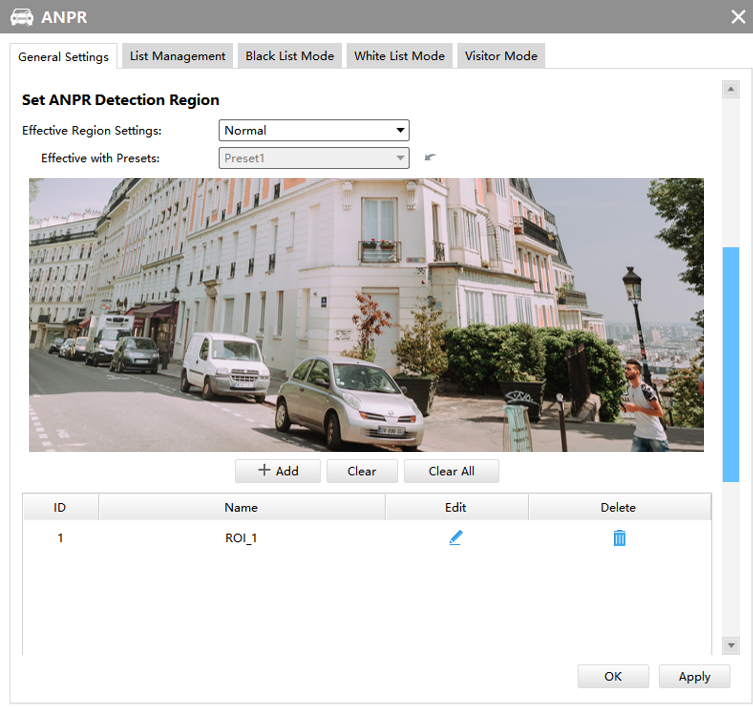

Step5:Set the detected ROI region which can be up to 4 regions. License plate will only be detected in the ROI regions;

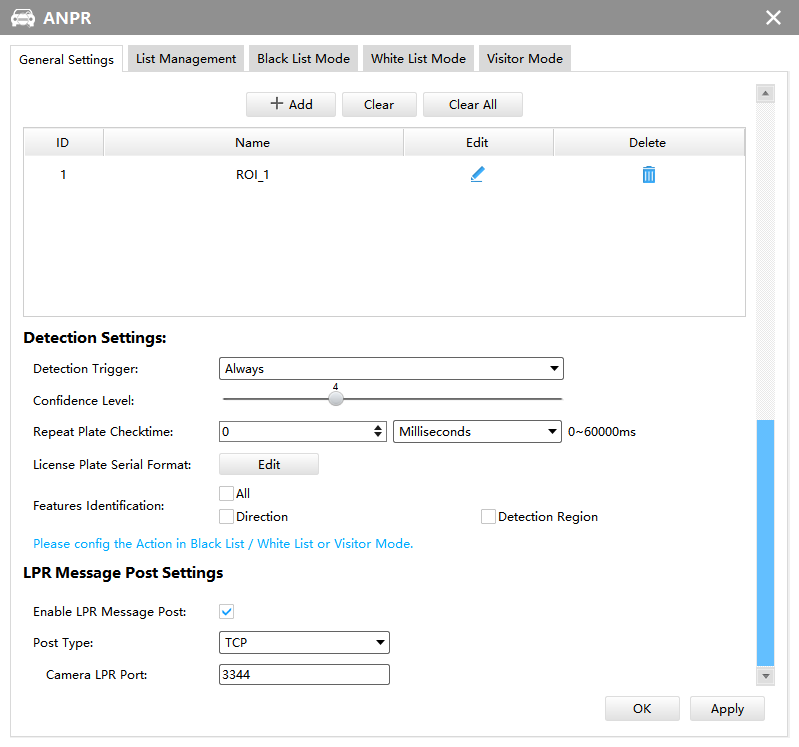

Step6:Set Detection Settings including Detection Trigger, Confidence Level, Repeat Plate Checktime, Lisence Plate Serial Format and Features Identification;
  • Detection Trigger: Always and Alarm Input are available. It will only detect when alarm input is triggered if you select Alarm Input.
  • Confidence Level:Set the degree of reliability according to the actual situation.
  • Repeat Plate Checktime: The same license plate information won’t be received on network cameras within the time you set.
  • Lisence Plate Serial Format: Set license plate format you want to recognize.
  • Features Identification: The selected features identification will be shown in ANPR logs interface.
Step7: Enable LPR Message Post. It will push information to some third-party devices or software that are compatible with ours.
  • Post Type: Information can be pushed by RTSP, TCP or HTTP.
  • HTTP Method: There are two HTTP push methods, including Post and Get.
  • Snapshot Type: Three kinds of snapshot can be chosen: All, License Plate and Full Snapshot. When you choose All, License Plate Snapshot and Full Snapshot will be pushed.
Note: This option is available just for Post HTTP Method.
  • HTTP Notification URL: LPR camera can use the API URL to send LPR information to back-end devices when the license plate is recognized. API URL format fills as follow: http://IP:Port/api/lpr
  • User Name: Receiver name.
  • Password: Receiver Password.
