4.1.3 Video Wall
Through this function, you can use all screens in the local area network. The video wall list will be shown according to the video wall you created in the Video Wall Settings. The video wall is as below:
Icon indicates that the screen is not available, you need to check if the Video Wall server is running normally.
- How to use video wall?

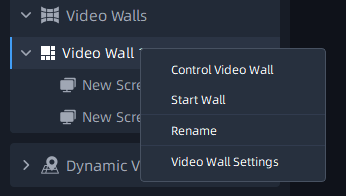

Step1: Right-click the video wall and a menu window will pop up as below:
Step2: Click Control Video Wall and a window will pop up as below:
Step3: Double-click a screen, then you can enter the specific screen. For more details, please refer to the How to use screen?
Step4: Click button to run the video wall. Then you can drag and drop the camera, layout and tour plan to the screen.
After running the video wall, there are some operations as below:
(1) Click button to identify all running screens in the video wall.
(2) Click button to clear the content on all screens in the video wall.
(3) Click button to stop running the video wall.
- How to use screen?
You can also use several of the screens individually.

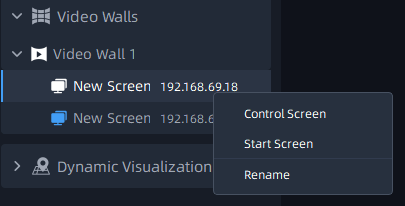

Step1: Right-click the specific screen and a menu window will pop up as below:

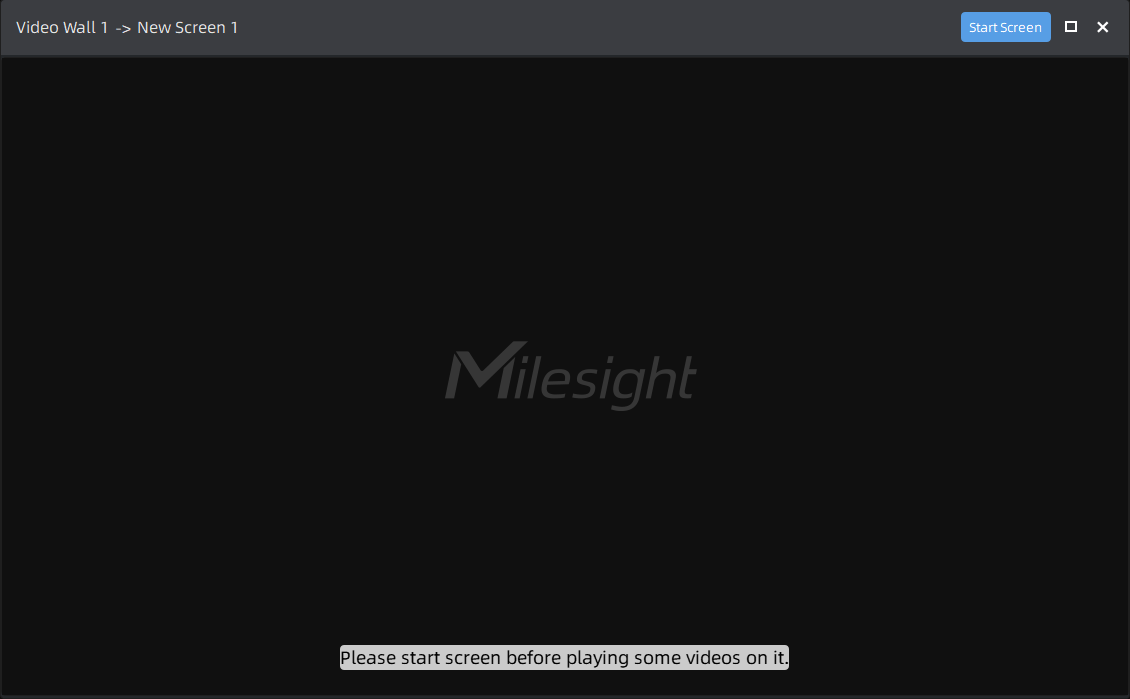

Step2: Click Control Screen and a window will pop up as below:
Step3: Click button to run the screen. Then you can drag and drop the camera, layout and tour plan to the screen.
After running the screen, there are some operations as below:
(1) Click button to refresh the screen.
(2) Click button to identify the corresponding screen.
(3) Click button to clear the content on the screen.
(4) Click button to stop running the screen.
- Right-click menu

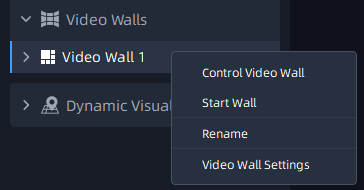

(1) When the video wall is not running, right-click the video wall and a menu window will pop up as below:
The meanings of the menu can be referred to the table below:
Item |
Function Introduction |
---|---|
Control Video Wall |
Use the video wall. For more details , please refer to the How to use video wall ? |
Start Wall |
Run the video wall. |
Rename |
Rename the video wall. |
Video Wall Settings |
Jump to the Video Wall Settings page. |
(2) When the video wall is running, right-click the video wall and a menu window will pop up as below:
The meanings of the menu can be referred to the table below:
Item |
Function Introduction |
---|---|
Control Video Wall |
Use the video wall. For more details , please refer to the How to use video wall? |
Stop Wall |
Stop running the video wall. |
Clear Wall |
Clear the content on all screens in the video wall |
Rename |
Rename the video wall. |
Save Matrix |
Save the content currently playing on each screen of the video wall. |
Identify Screens |
Identify all running screens in the video wall. |
Video Wall Settings |
Jump to the Video Wall Settings page. |

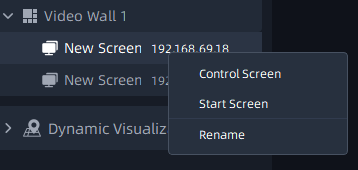

(3) When the screen is not running, right-click the screen and a menu window will pop up as below:
The meanings of the menu can be referred to the table below:
Item |
Function Introduction |
---|---|
Control Screen |
Use the video wall. For more details , please refer to the How to use screen? |
Start Screen |
Run the screen. |
Rename |
Rename the screen. |

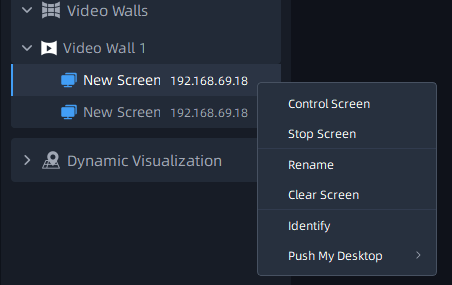

(4) When the screen is running, right-click the screen and a menu window will pop up as below:
The meanings of the menu can be referred to the table below:
Item |
Function Introduction |
---|---|
Control Screen |
Use the video wall. For more details , please refer to the How to use screen? |
Stop Screen |
Run the screen. |
Rename |
Rename the screen. |
Clear Screen |
Clear the content on the screen. |
Identify |
Identify the corresponding screen. |
Push My Desktop |
Push the desktop to the screen for display. If there are multiple desktops, select any one to push as needed. |

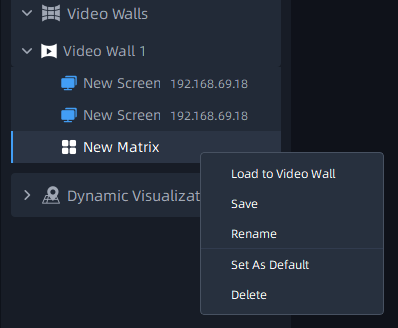

(5) Right-click the the matrix and a menu window will pop up as below:
The meanings of the menu can be referred to the table below:
Item |
Function Introduction |
---|---|
Load to Video Wall |
Each screen will play the content according to this matrix. |
Save |
Save the content currently playing on each screen of the video wall to this matrix. |
Rename |
Rename the matrix. |
Set As Default |
Set the matrix as default. Every time you run the video wall, each screen will play the content according to this matrix. There could be at most only one default matrix. |
Delete |
Delete the matrix. |
