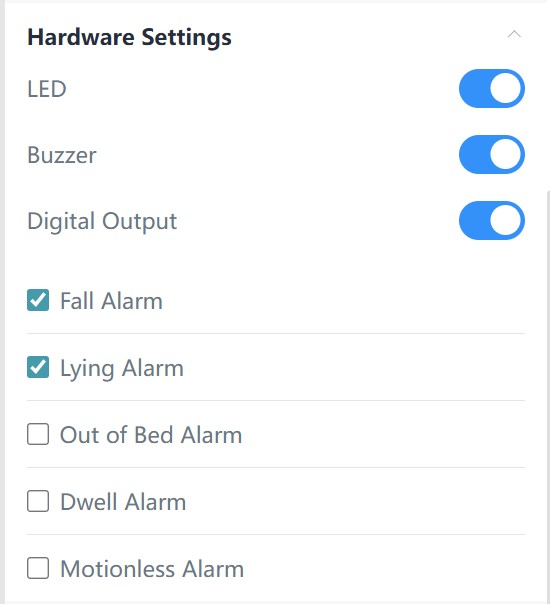

Configure Hardware Settings
This device is equipped with an LED indicator, a buzzer, and a DO (digital output) interface for device status display and alarm notifications.
| Parameters | Description |
|---|---|
| LED | Enable or Disable indicator light for fall detection alarm. |
| Buzzer | Enable or Disable buzzer sounding for fall detection alarm. |
| Digital Output | When any of the following selected alarms are triggered, the device will output a
level signal. When multiple alarms are triggered, priority is: Fall > Lying > Out of Bed > Dwell > Motionless. If a higher-priority alarm is triggered while a lower-priority alarm is still being processed, the device will interrupt the lower-priority alarm and give precedence to reporting and outputting the higher-priority alarm signal. Fall alarm duration = Fall Delay Reporting Time+Fall Alarm Duration, all other alarms last 15s. |
