Advanced Settings

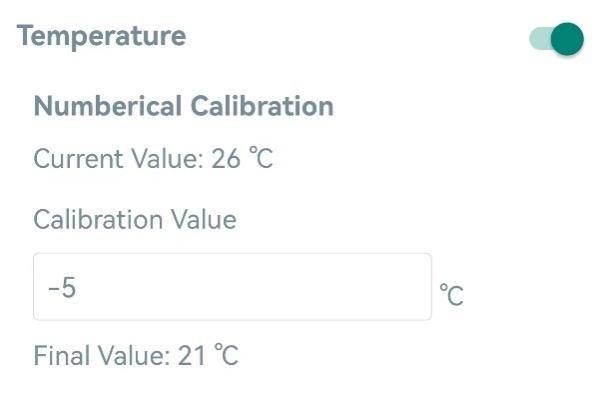

Calibration Settings
The device supports numerical calibration of the temperature value. Set the calibration value, the device will add calibration value to the current value and report the final value.

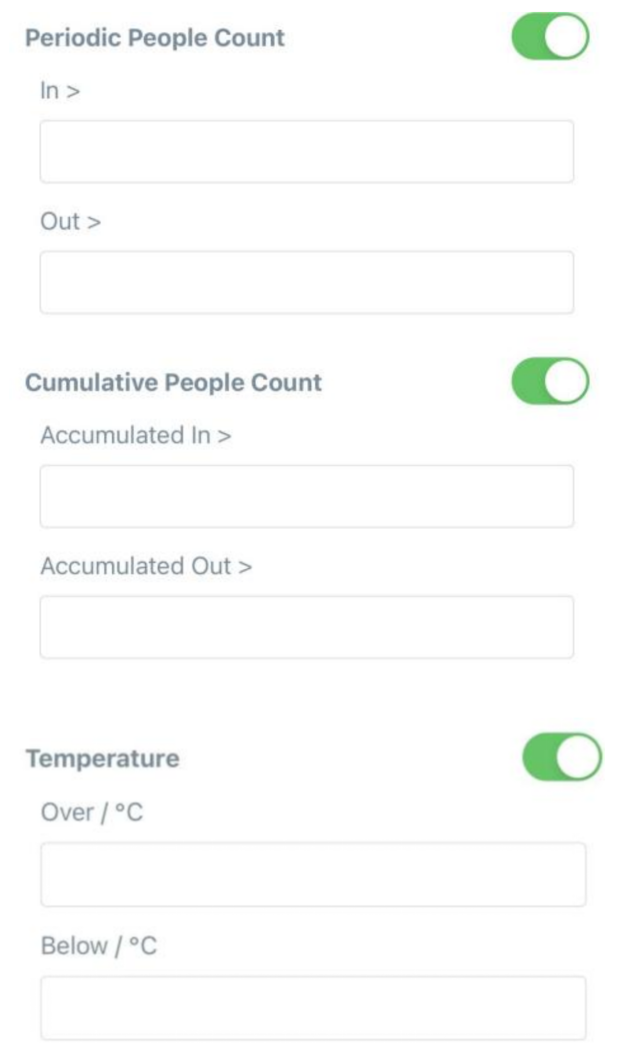

Threshold Settings
If the threshold is triggered, the device will report the threshold alarm packet
instantly.
| Parameter | Description |
|---|---|
| Periodic People Count | During each reporting interval, when the number of people reaches the set threshold, the device will send a alarm packet once. At the end of the interval, the count is reset to zero, and the next reporting interval begins. |
| Cumulative People Count | When the device is powered on for the first time or after the accumulated count is reset, it sends an alarm data packet once the cumulative number of entries reaches the set threshold. |
| Temperature | When the temperature of the device reaches the set
threshold, an alarm packet is sent once; when the temperature returns to normal, an
alarm release packet will be sent once. Note: The device will
also report alarm packet when temperature is above 30°C, even if the temperature
threshold is disabled. |
Milesight D2D Settings
Milesight D2D protocol is developed by Milesight and used for setting up transmission among Milesight devices without gateway. When the Milesight D2D settings is enabled, the device can work as a D2D controller to send control commands to trigger Milesight D2D agent devices.

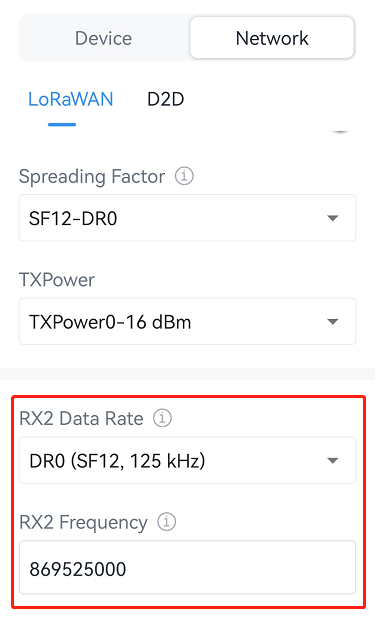

1. Configure the RX2 datarate and RX2 frequency.
Note: It is suggested to change the default values if there are many
LoRaWAN® devices around.
2. Enable and configure the threshold alarm settings.

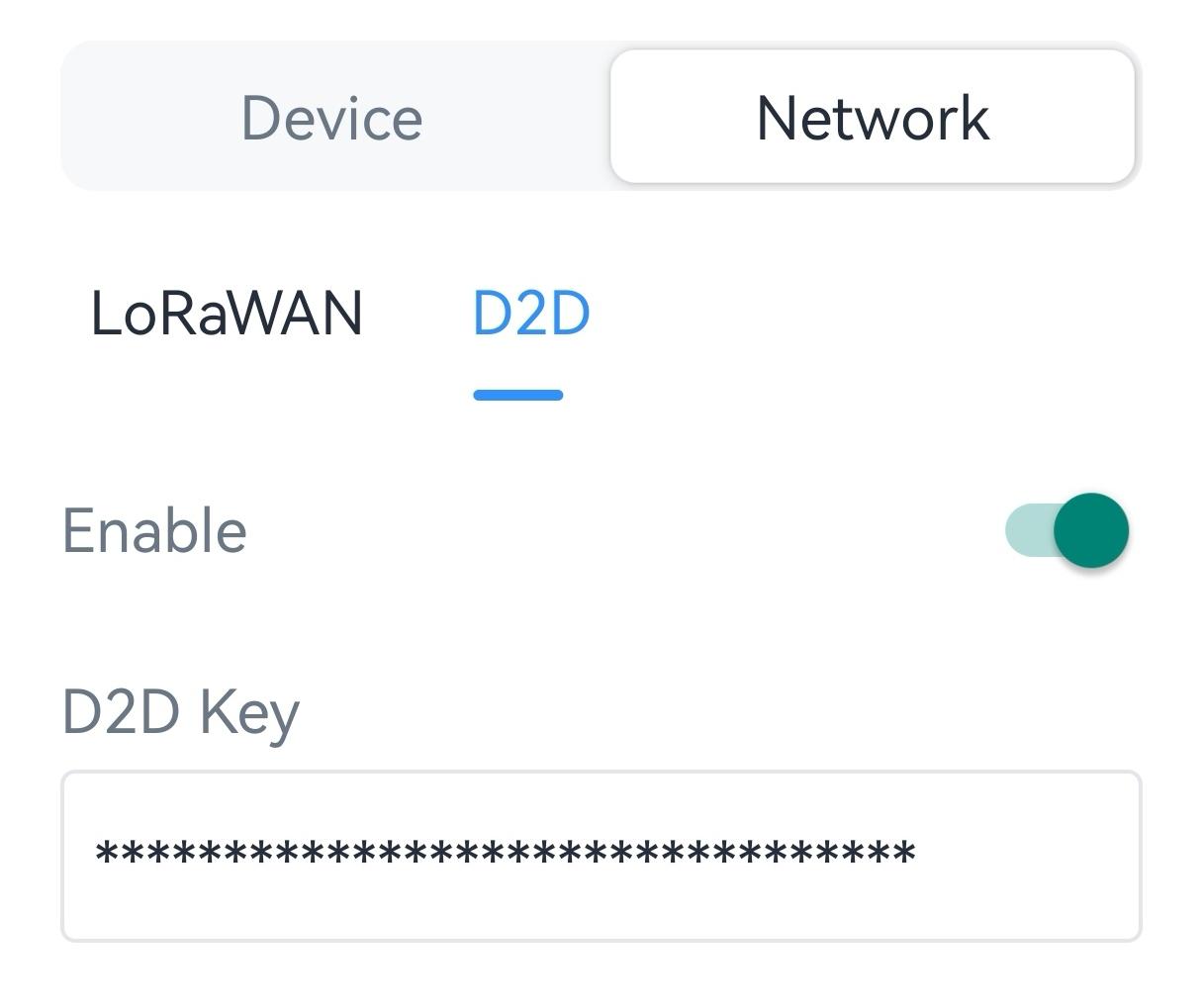

3. Enable Milesight D2D feature and define a unique D2D key that is the same
as Milesight D2D agent devices. (Default D2D key: 5572404C696E6B4C6F52613230313823)
4. Enable one of statuses and configure 2-byte hexadecimal Milesight D2D
command.
Note:
- If you enable LoRa Uplink, a LoRaWAN® uplink packet that contains corresponding alarm status will be sent to gateway after the Milesight D2D command packet. Otherwise, the alarm packet will not send to LoRaWAN® gateway.
- If you enable the Control Time setting, Milesight D2D agent devices will take corresponding actions within this duration after receiving commands from Milesight D2D controller. This feature is currently under development for Milesight D2D agent devices.

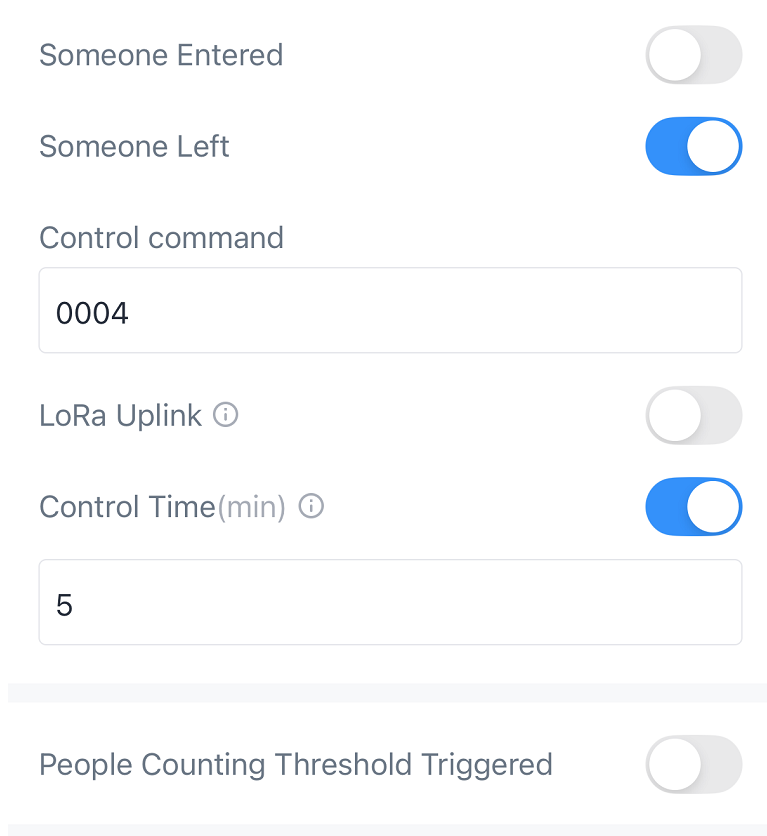

- Example:
- When someone is left, the device will send D2D command 0004 to Milesight D2D agent
devices, which perform the corresponding action for 5 minutes.
