Device Installation

WT401 supports both wall screw mounting or wall plate mounting. Please select the appropriate method based on your needs.

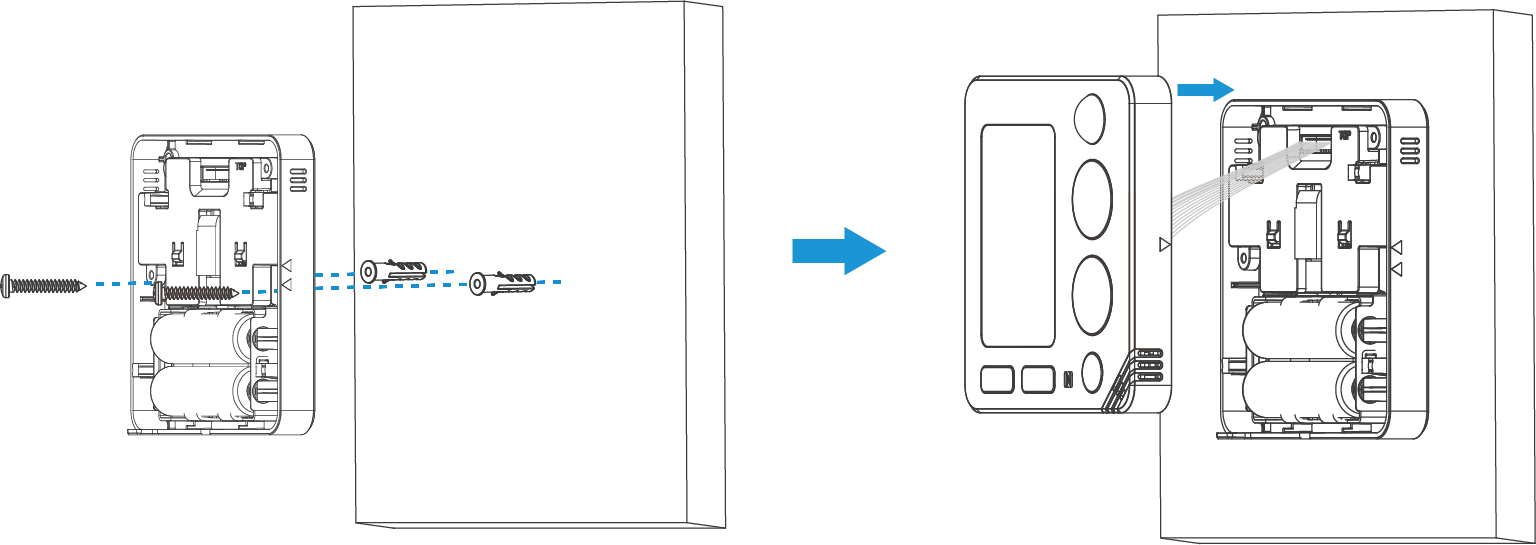

Wall Screw Mounting

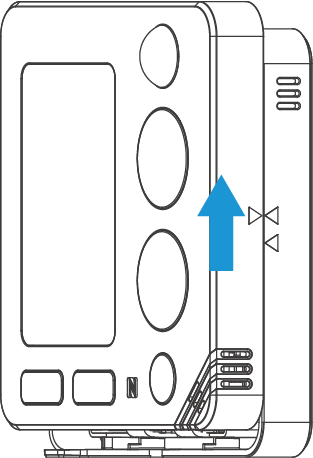

1. Remove front screen from the device. 2. Install the power cable or batteries to the device.
2. Fix the wall plugs to the wall. 3. Secure the device to the wall using wall screws.

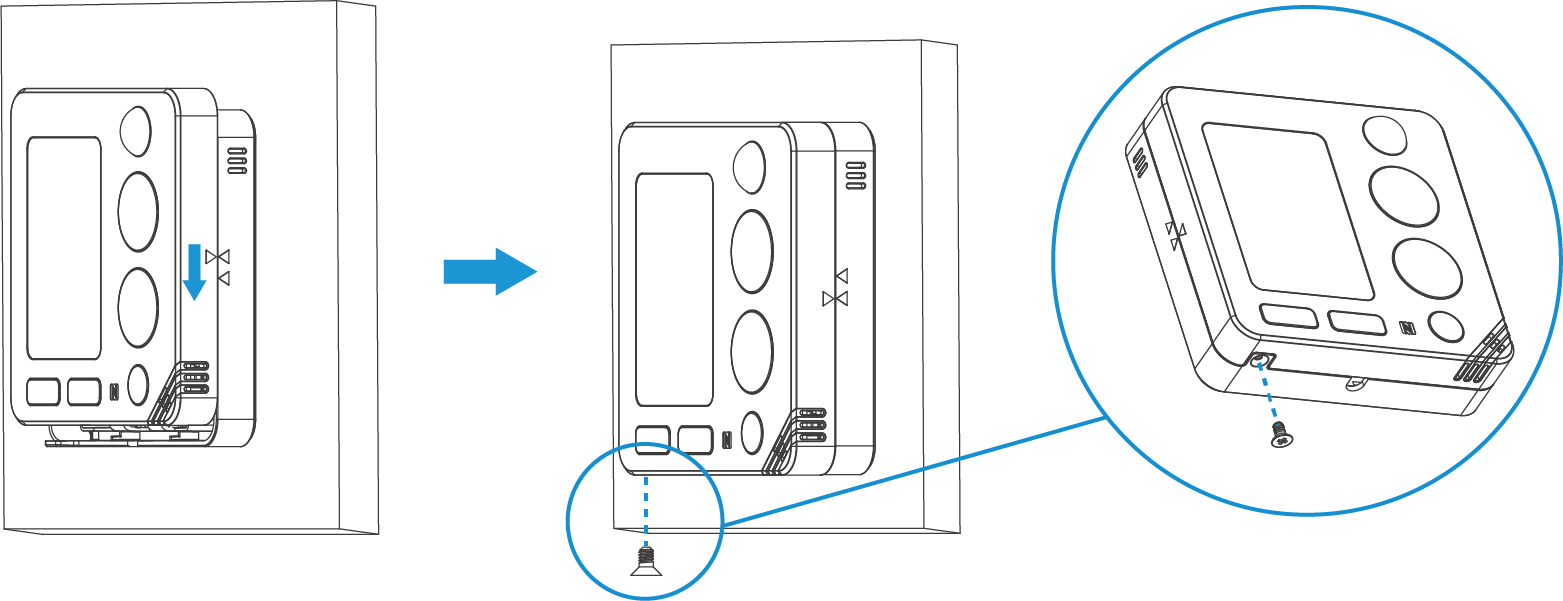

4. Restore the front screen to the device. 5. Secure the bottom of the device using the anti-theft fixing screw.

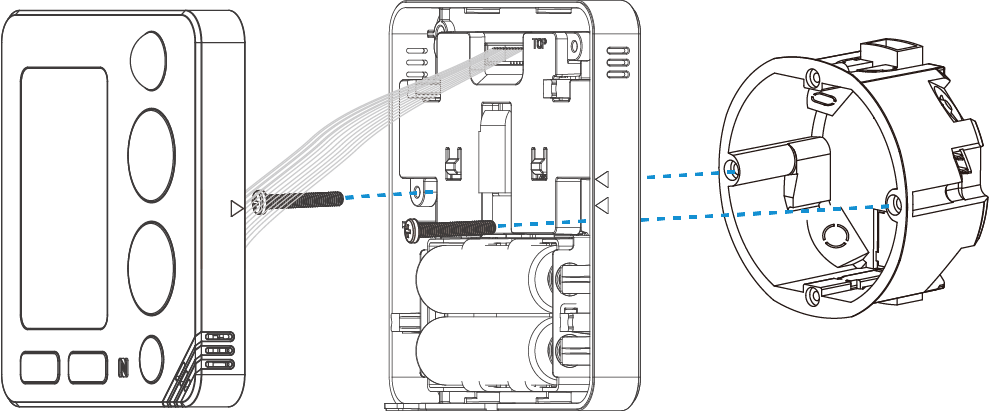

Tip: The device can be mounted to either an 86mm pattress box or a European 60mm using box mounting screws.

Applicable: Standard 86mm pattress box, European 60mm pattress box.


1. Remove front screen from the device. 2. Install the power cable to the device.

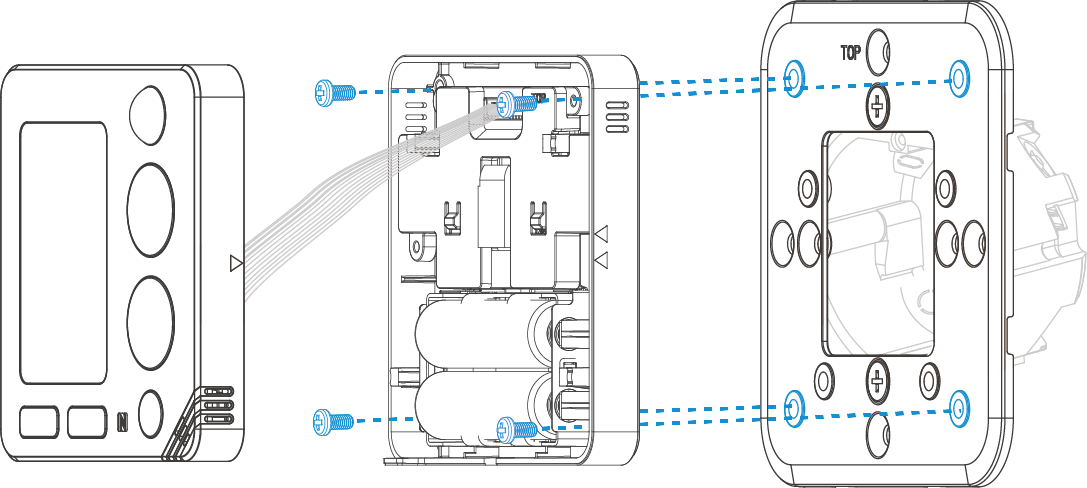

3. Secure the device to the wall plate using screws.

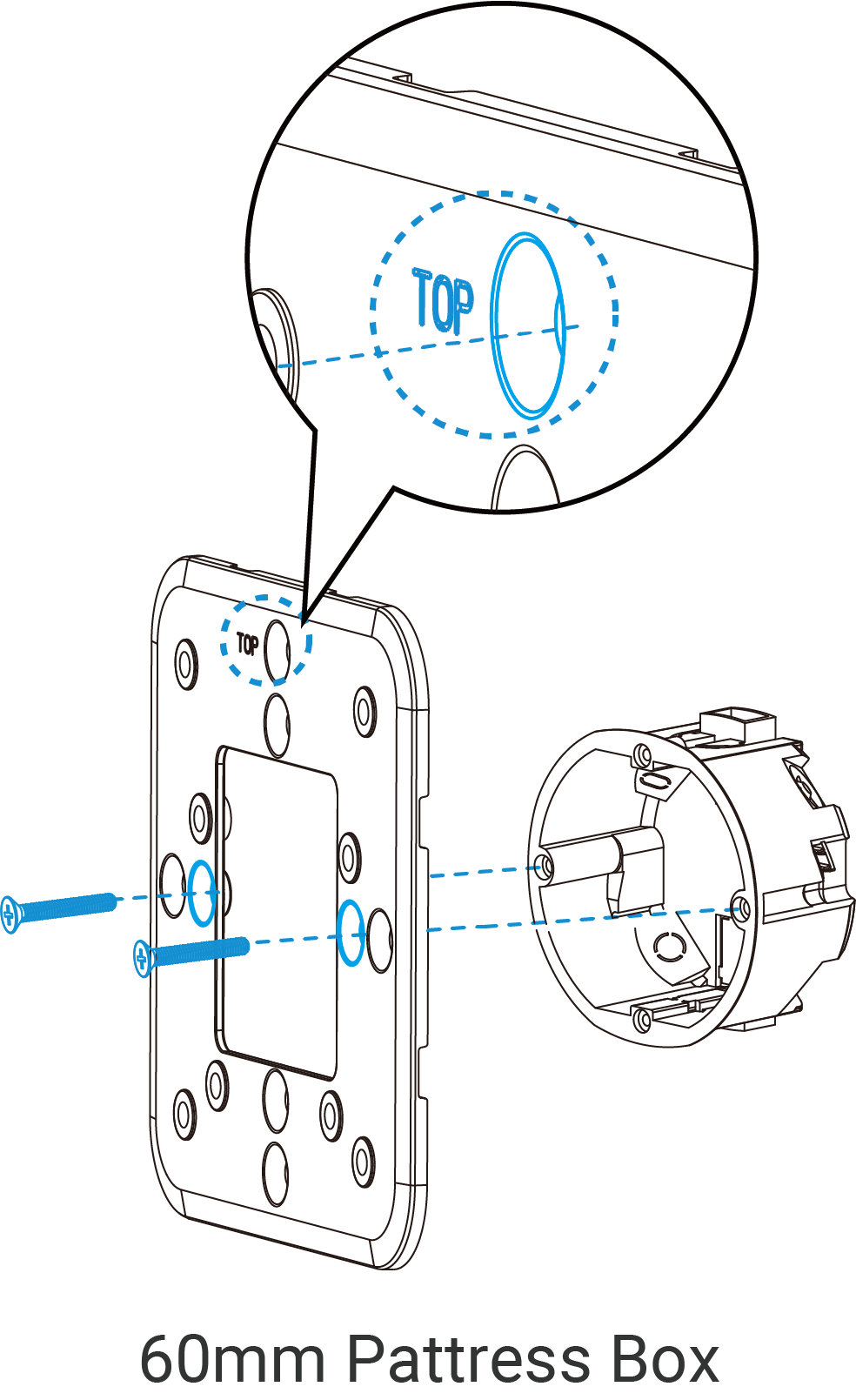

4. Attach the wall plate and device assembly to the pattress box.
5. Restore the front screen to the device.

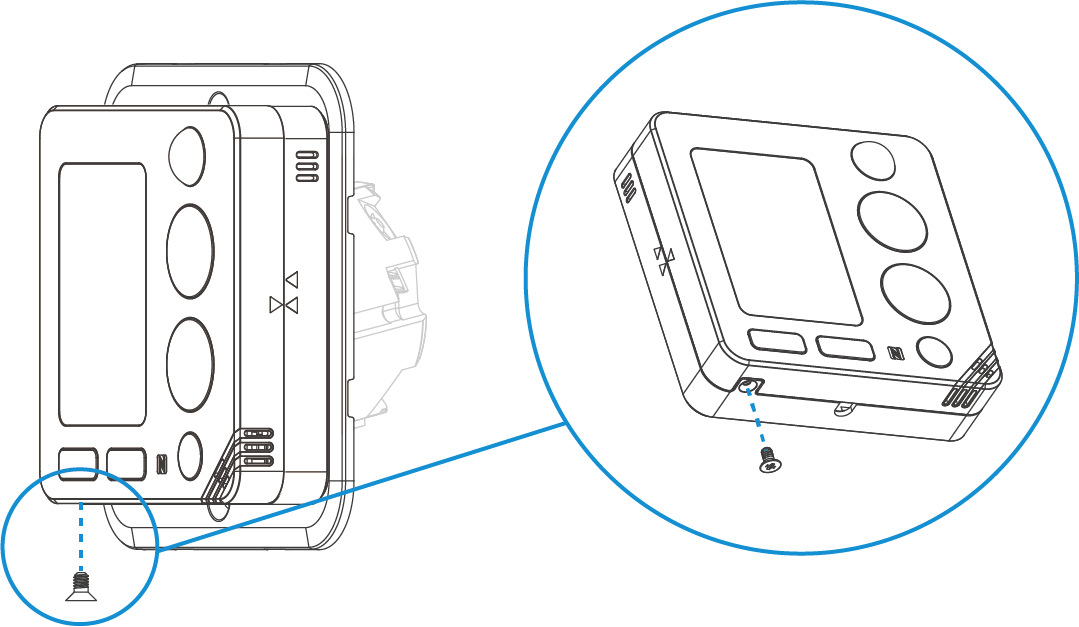

6. Secure the bottom of the device using the anti-theft fixing screw.

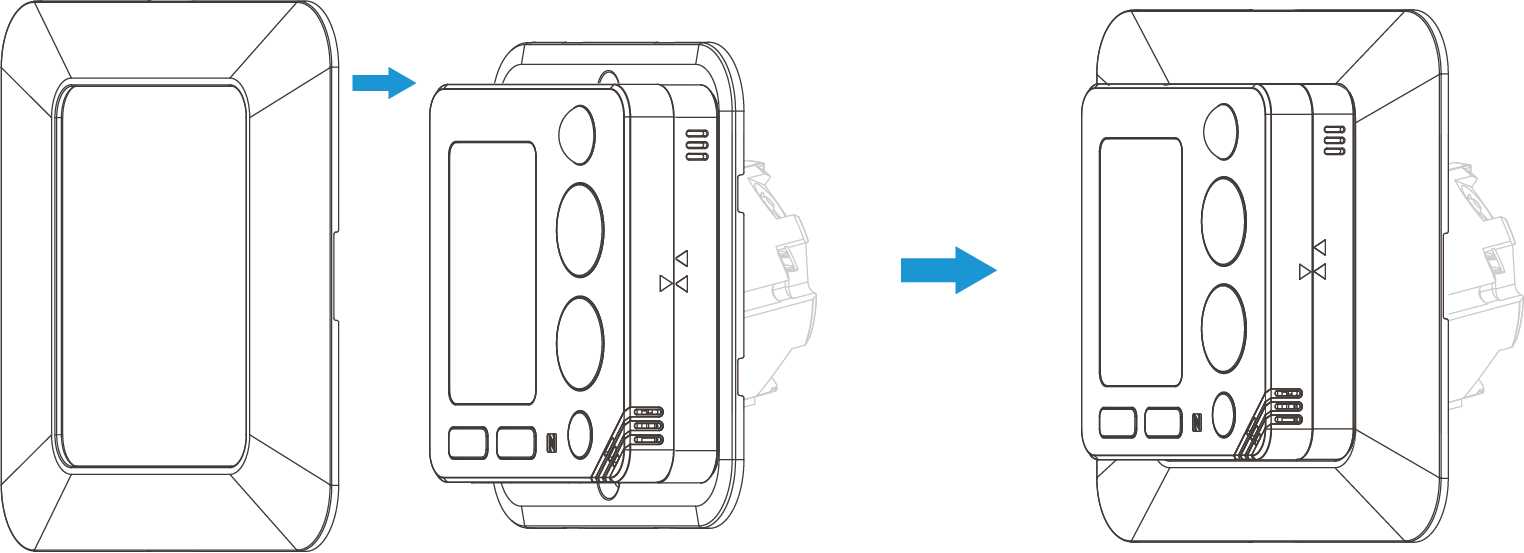

7. Attach the decorative plate to the device.

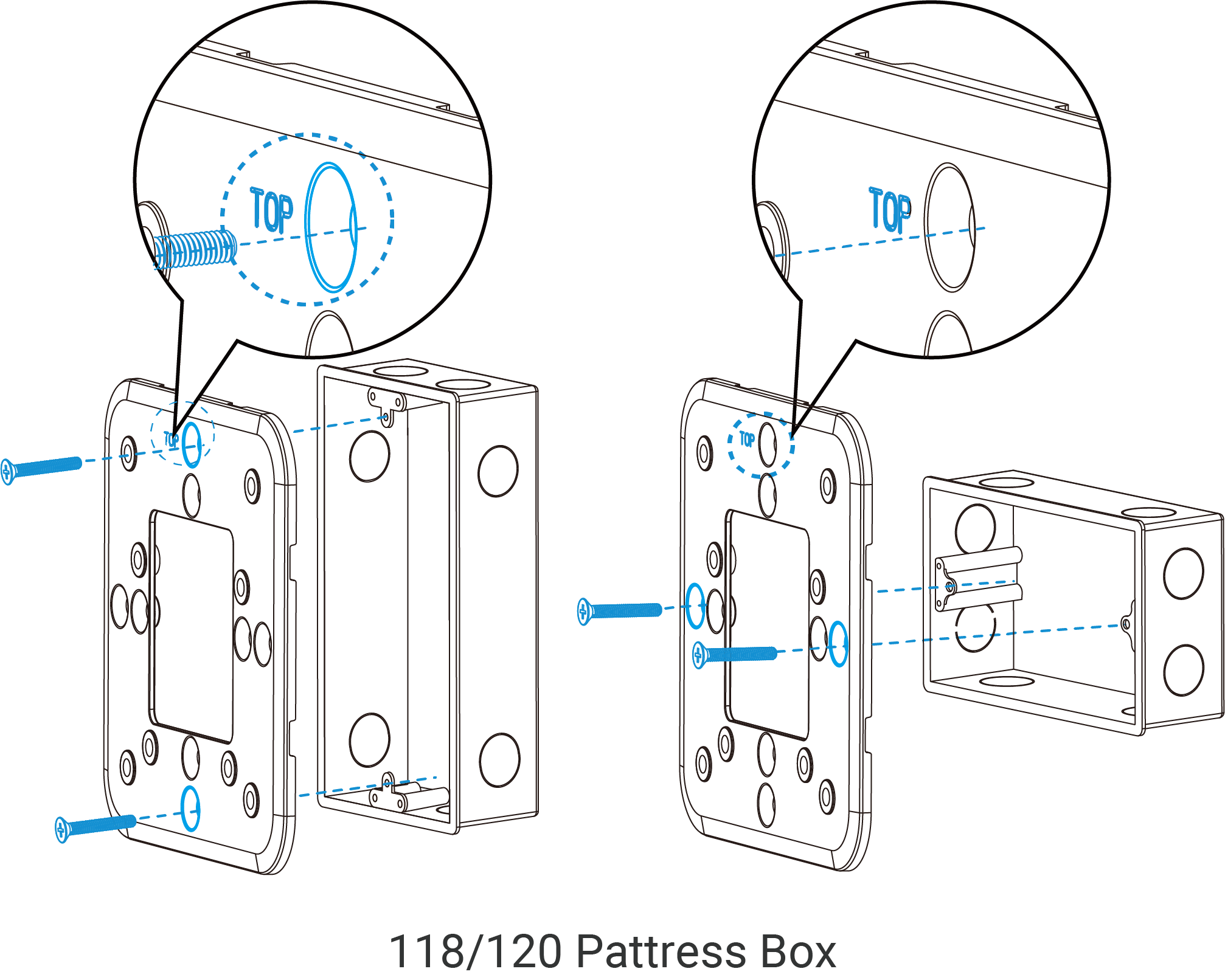

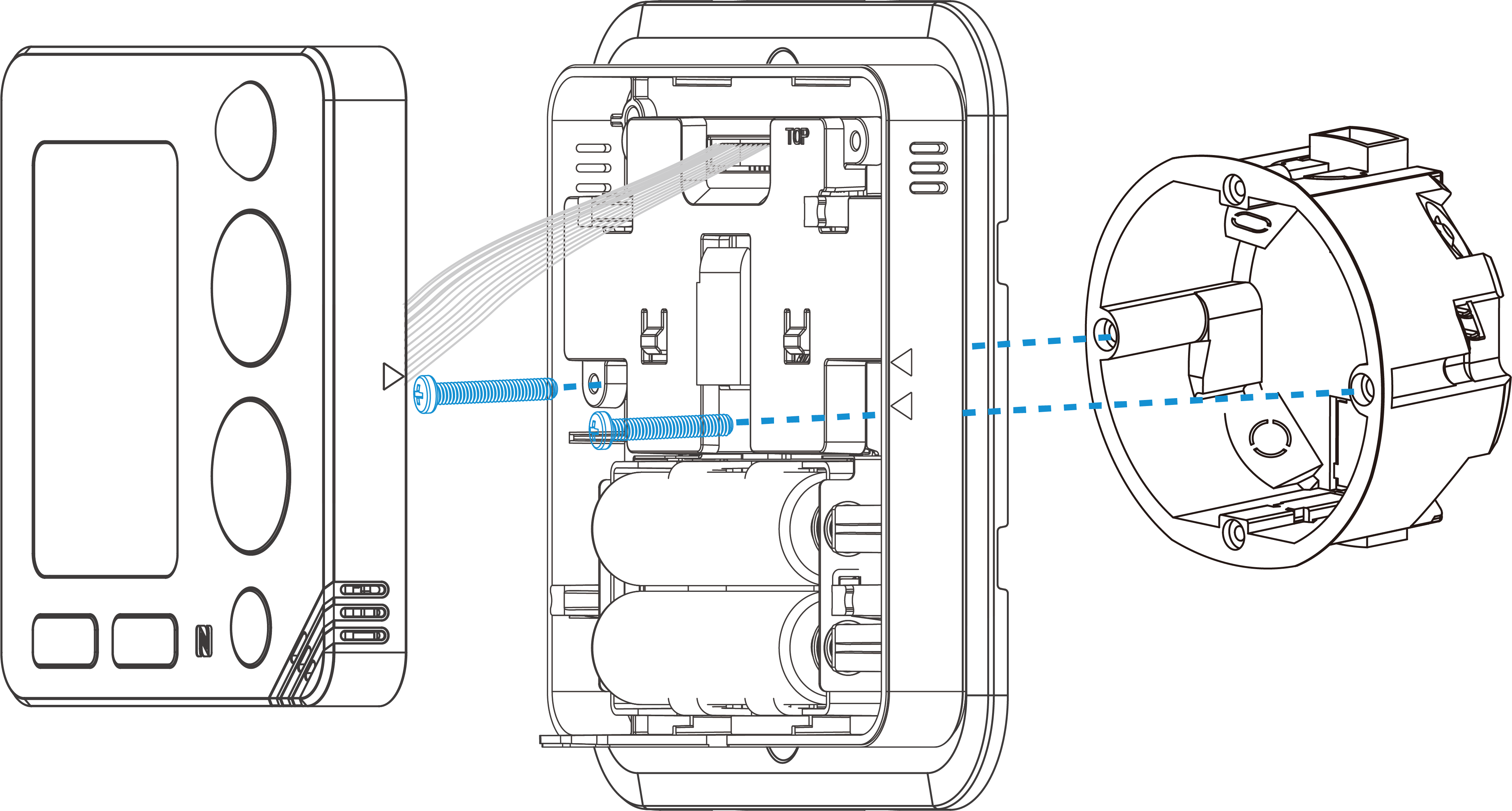

Applicable: Standard 86mm pattress box, European 60mm pattress box, 118/120mm pattress box.


1. Secure the wall plate to the pattress box using screws.
2. Remove front screen from the device. 3. Install the power cable to the device.

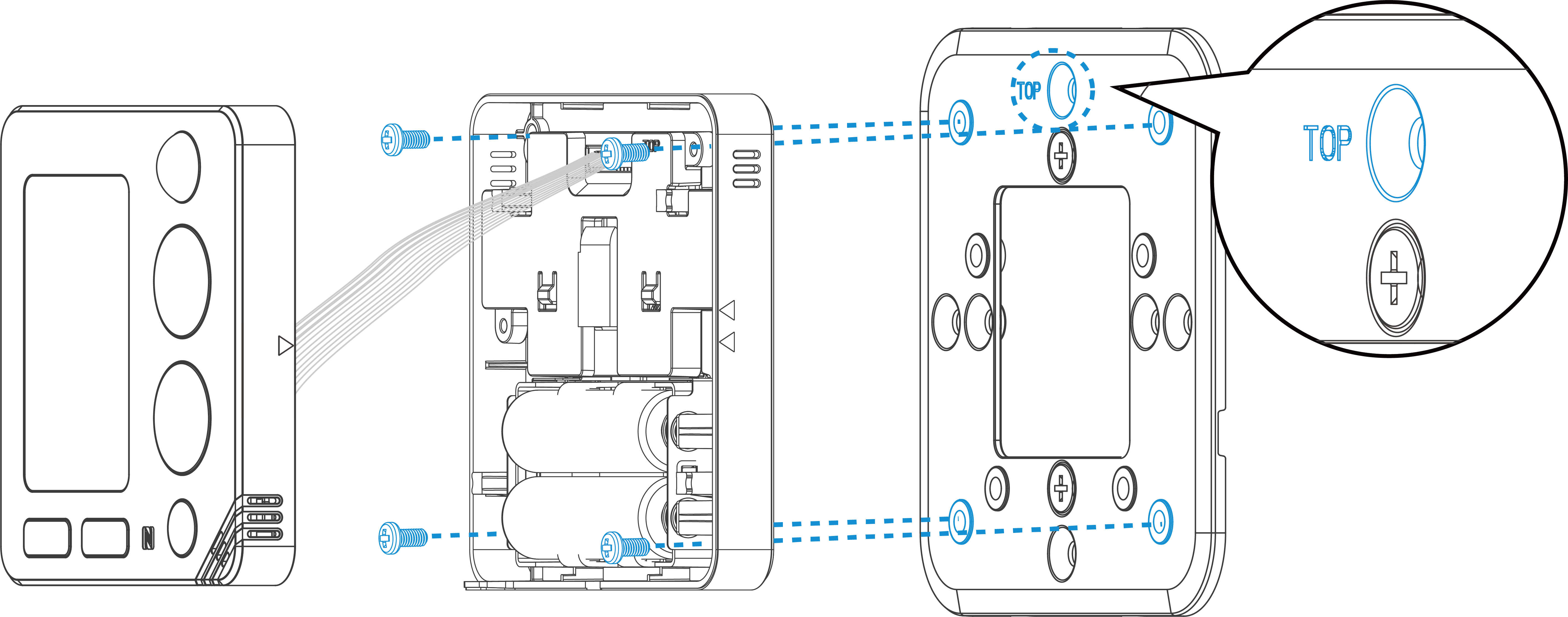

4. Secure the device to the wall plate using screws.

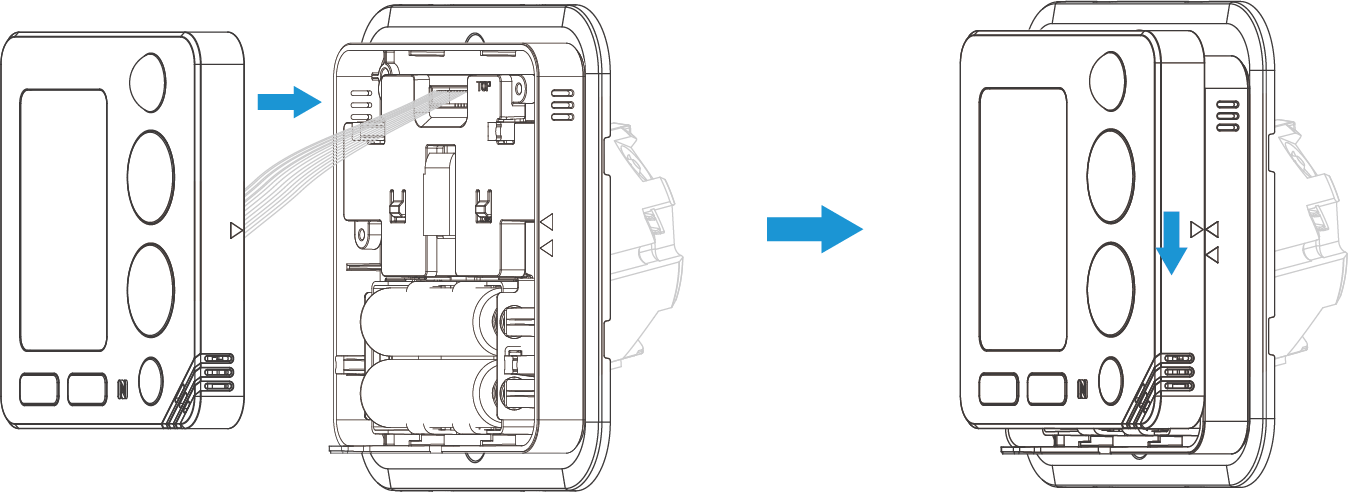

5. Restore the front screen to the device.
6. Secure the bottom of the device using the anti-theft fixing screw.
7. Attach the decorative plate to the device.
