Advanced Motion Detection

Different from traditional motion detection, Advanced Motion Detection can filter out “noise” such as lighting changes, natural tree movements, etc. When an object moves in the selected area, it will trigger alarm.

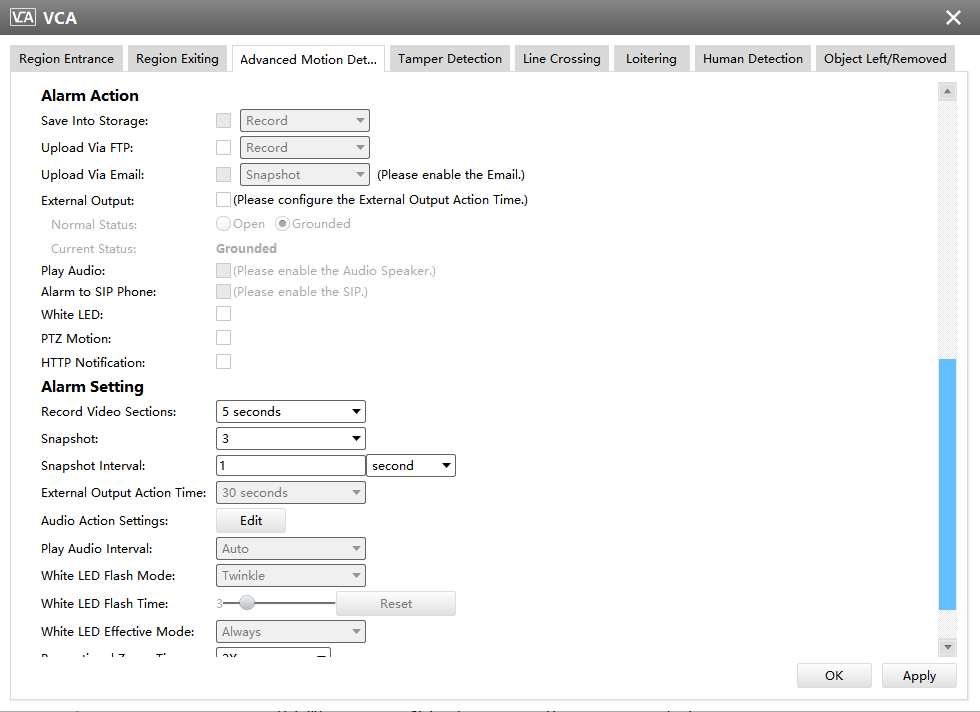

  • Advanced Motion Detection(for non-AI cameras)

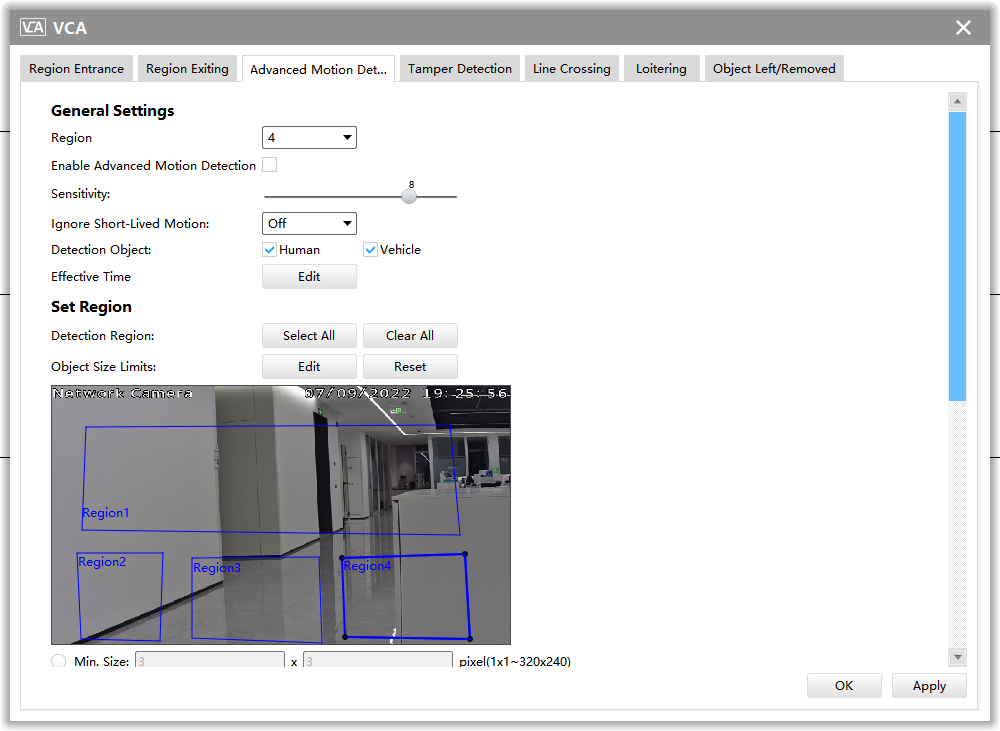

  • Advanced Motion Detection(for AI cameras)





Step1: Select detection region and enable Advanced Motion Detection. Then set detecting sensitivity;

Step2: Set Ignore Short-Lived Motion time. If you set the time, when the moving duration of an object is within the setting time, the alarm will not be triggered;

Step3: Choose detection object. Check Human or Vehicle attribute, and the camera will alarm once detecting people or vehicle and triggering related events;

Note: All AI Cameras support this function.

Step4: Set detection schedule;

Step5: Set Advanced Motion Detection region and object size limits.

Note: Support the Irregular Area Drawing function in 4x.7.0.78 version or above of Milesight cameras.

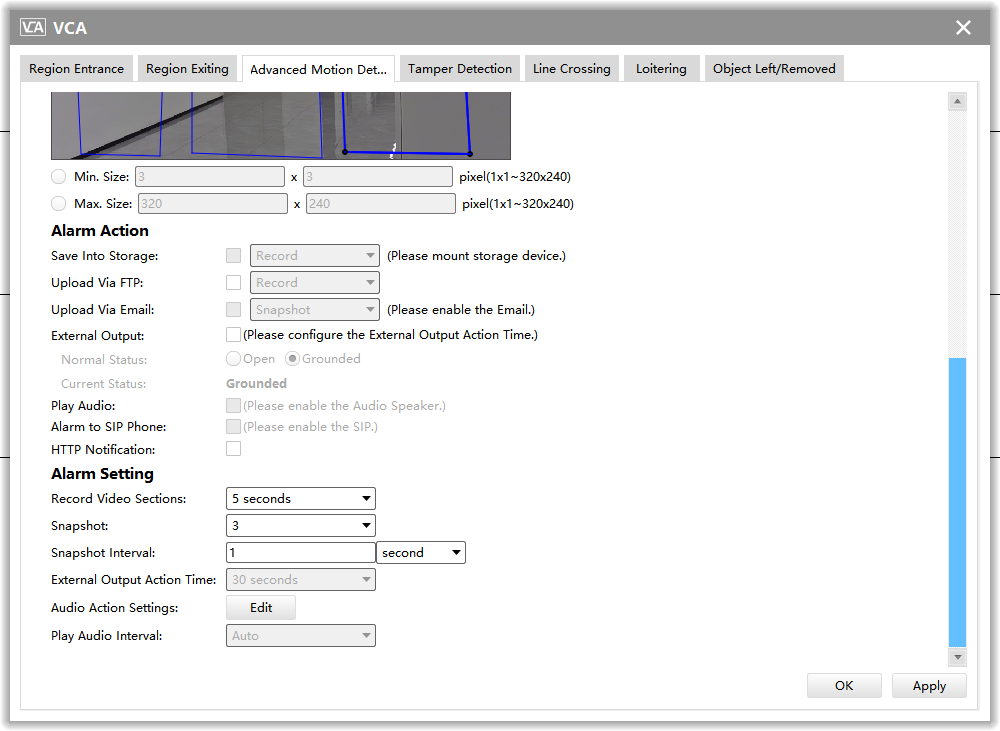

Step6: Set alarm action;

Step7: Set alarm settings. If you enable External Output and choose Constant External Output Action Time, when object motion time is longer than the Ignore Short-Lived Motion time which you set in the selected regions, External Output Action alarm time will be always constant till the alarm is released.

Step8: Click [OK] or [Apply] after all set.

Note:
  • The sensitivity can be configured to detect various movement according to different requirements. When the level of sensitivity is low, slight movement won’t trigger the alarm.
  • Ignore Short-Lived Motion time is to avoid false alarm caused by instant object movement within time setting.
