Uplink Data

This chapter describes the reported data of the device.

Basic Information

UC100 will report a basic information packet whenever joining the network.
Item Channel Type Byte Description
Power On ff 0b 1 Device is on
Protocol Version ff 01 1 Example: 01=V1
Hardware Version ff 09 2 Example: 03 10 = V3.1
Software Version ff 0a 2 Example: 03 01 = V3.1
Device Type ff 0f 1

00: Class A, 01: Class B, 02: Class C, 03: Class C to B
Serial Number ff 16 8 16 digits
TSL Version ff ff 2 Example: 01 00=>V1.0

Reset Event

 ff fe 1 ff, only report when the device resets
Example:

ff0bff ff0101 ffff0201 ff166445b43411300001 ff090200 ff0a0101 ff0f02
Channel Type Value
ff 0b Power On: ff
ff 01 Protocol Version: 01 = V1
ff ff TSL version: 0101 = V1.1
ff 16 Device SN: 6445B43411300001
ff

09

 Hardware Version: 0200 = V2.0
ff

0a

 Firmware Version: 0101 = V1.1
ff

0f

Device Type: 02: Class C

Periodic Report

UC100 will report RS485 sensor data which are fetched by Modbus channels according to the reporting interval (20 mins by default).
Item Channel Type Byte Description
Modbus Channel f9 73 3~10

Channel ID (1B, 0-31) + Data Type (1B) + Data (Mutable)

Data Type:

Bit 7: 0 = unsigned, 1 = signed

Bit 6-5: 00 = first register, 01 = second register

Bit 4-0:

Code Data Type

00000

Coil

00001

Discrete

00010

Input16

00011

Hold16

00100

Hold32

00101

Hold_float

00110

Input32

00111

Input_float

01000

Input_int32_with upper 16 bits

01001

Input_int32_with lower 16 bits

01010

Hold_int32_with upper 16 bits

01011

Hold_int32_with lower 16 bits
01100 Hold64
01101 Hold_double
01110 Input64
01111 Input_double

Collection Exception

 ff 15 1

Channel ID of failed Modbus collection. Range: 0-31
Note: Channel ID can be configured in ToolBox.

Channel ID

Description

00

RS485 (Modbus Master) Channel 1
01

RS485 (Modbus Master) Channel 2
... ...
1f

RS485 (Modbus Master) Channel 32
Example:
  1. No Modbus channel.
    ff0bff
    Channel Type Value
    ff 0b (Power On) ff

  2. Fail to fetch Channel1 data.

    ff1500
    Channel Type Value
    ff 15

    00 = Channel 1
  3. Succeed to fetch Channel2 first register's data.

    f973 0182 ceff
    Channel Type Channel ID Data Type Value
    f9 73 01 = Channel 2

    82 => 1000 0010

    100: Unsigned first register

    00010: Input16

    ce ff => ff ce = -50
Note: When data type is holding register or input register, ToolBox can set different byte orders. Take below Modbus register response from RS485 terminal devices as example:

Register Address

Value (Hex)
0 00 15
1 00 20
2 00 25
3 00 30
When using different byte orders and only one register, you can use ToolBox to fetch different results, and the device will upload data with little endian order.

Data Type

Byte Order

Fetch Result

Uplink (HEX)

Holding/Input Register (INT16)

 AB

21 (0x15)

15 00 (BA)
BA

5376 (0x1500)

00 15 (AB)

Holding/Input Register (INT32)

ABCD

1376288 (0x00150020)

20 00 15 00 (DCBA)

CDAB

2097173 (0x00200015)

15 00 20 00 (BADC)

BADC

352329728 (0x15002000)

00 20 00 15 (CDAB)

DCBA

536876288 (0x20001500)

00 15 00 20 (ABCD)

Holding/Input Register (INT32 with upper 16 bits)

 /

21 (0x15)

15 00 00 00

Holding/Input Register (INT32 with lower 16 bits)

 /

32 (0x20)

20 00 00 00
Holding/Input Register (INT64) ABCDEFGH 5911111952302128

(0x0015002000250030)

 30 00 25 00 20 00 15 00

(HGFEDCBA)
GHEFCDAB 13510957797998613

(0x0030002500200015)

15 00 20 00 25 00 30 00

(BADCFEHG)
BADCFEHG 1513244659789344768

(0x1500200025003000)

00 30 00 25 00 20 00 15

(GHEFCDAB)
HGFEDCBA 3458805196287644928

(0x3000250020001500)

 00 15 00 20 00 25 00 30

(ABCDEFGH)

Alarm Report

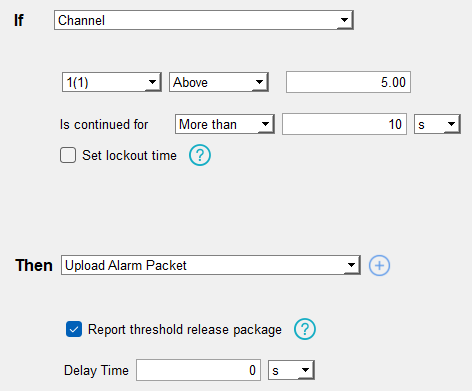

UC100 supports to report Modbus channel threshold alarms, change alarms or custom messages via command settings.

Note: when data type is coil or discrete, the device will not report the alarm packet.
Item Channel Type Byte Description
Modbus Channel Alarm f9 73 3~10

Alarm Type (1B) + Data Type (1B) + Data (Mutable)

Alarm Type:

Bit 7-6: 01=Threshold alarm, 10=Threshold Alarm release, 11=Change alarm

Bit 5-0: Channel ID, range: 0-31

Data Type:

Bit 7: 0 = unsigned, 1 = signed

Bit 6-5: 00 = first register, 01 = second register

Bit 4-0: see Data Type

Modbus Channel Change Alarm Value

 f9 74 9

Byte 1:

Bit7-6: 00 = first register, 01 = second register

Bit5-0: Channel ID, range: 0-31

Byte 2-9: Change Value (double)
Custom Message - - 1-48 Hex to ASCii
Example:
  1. Channel16 data reaches the threshold.

    f9 73 4f 85 0040 21c5
    Channel Type Channel & Alarm Type Data Type Value
    f9 73 4f => 01001111

    01=Threshold alarm

    001111: Channel 16

    		 85 => 10000101

    100: signed first register

    00101: Hold_float

    		 0040 21c5=> c521 4000=-2580
  2. Channel32 threshold alarm release.
    f973 9f 8f 66666666c687c3c0
    Channel Type Channel & Alarm Type Data Type Value
    f9 73 9f => 10011111

    10=Threshold Alarm release

    011111: Channel 32

    		 8f => 10001111

    100: signed first register

    01111: Input_double

    		 6666 6666 c687 c3c0 => -9999.55
  3. Channel1 first's register change alarm.

    f974 43 00000000008040c0

    f973c0030f00 f974000000000000002440
    Channel Type Value
    f9 73 Alarm Type & Channel: c0=>11 000000, 11=Change alarm, 000000=>0=Channel 1

    Data Type: 03=>0 00 00011=Unsigned, first register, Hold16

    Value: 0f 00=>00 0f=15
    f9 74 Register & Channel: 00 => 00 000000, 00=First register, 000000=>0=Channel 1

    Change Value: 00 00 00 00 00 00 24 40=>40 24 00 00 00 00 00 00 =10 (Hex to double)
  4. Custom message.
    74 65 73 74
    Value

    74 65 73 74=> t e s t (Hex to ASCii)

Historical Data

The device will report retransmission data or stored data as below format.
Item Channel Type Byte Description
Modbus Channel 21 ce 23 Byte 1-4: Data unix timestamp, UINT32, Unit: s

Byte 5: Channel ID, Range: 0-31

Byte 6-7: Ctrl
Bit Description
3-0 0000
5-4

00=Normal data

01=Threshold alarm

10=Threshold alarm release

11=Change alarm
7-6 01: One register

10: Two registers
8

0: fetch failure

1: fetch success
14-9 Data Type
15

0: unsigned, 1: signed

Byte 8-15: Value 1

Byte 16-23: Value 2
Custom Message 21 cd 4+N Byte 1-4: Data unix timestamp, UINT32, Unit: s

Byte 5-N: Message content (Hex to ASCii)
Example:
  1. Historical Modbus channel data.

    21ce 0d755b63 01 8085 1400000000000000 ddff000000000000

    Channel Type

    Time Stamp

    Value
    21 ce 0d 75 5b 63 => 63 5b 75 0d=1666938125s

    01: Channel 2

    Crtl: 8085 => 1 000010 110000000

    Bit15: 1=>signed

    Bit14-9: 000010 => 02=Input16_AB

    Bit8: 1=> Fetch success

    Bit7-6:10 = Two registers

    Bit5-4:00 => Normal Data

    Value 1: 14 00 00 00 00 00 00 00=>00 00 00 00 00 00 00 14=>20

    Value 2: dd ff 00 00 00 00 00 00=>00 00 00 00 00 00 ff dd => -35
  2. Historical custom message.
    21cd97e4656874657374
    Channel Type Time Stamp Value
    21 cd 97 e4 65 68=>68 65 e4 97=1751508119s

    74 65 73 74=> t e s t (Hex to ASCii)
