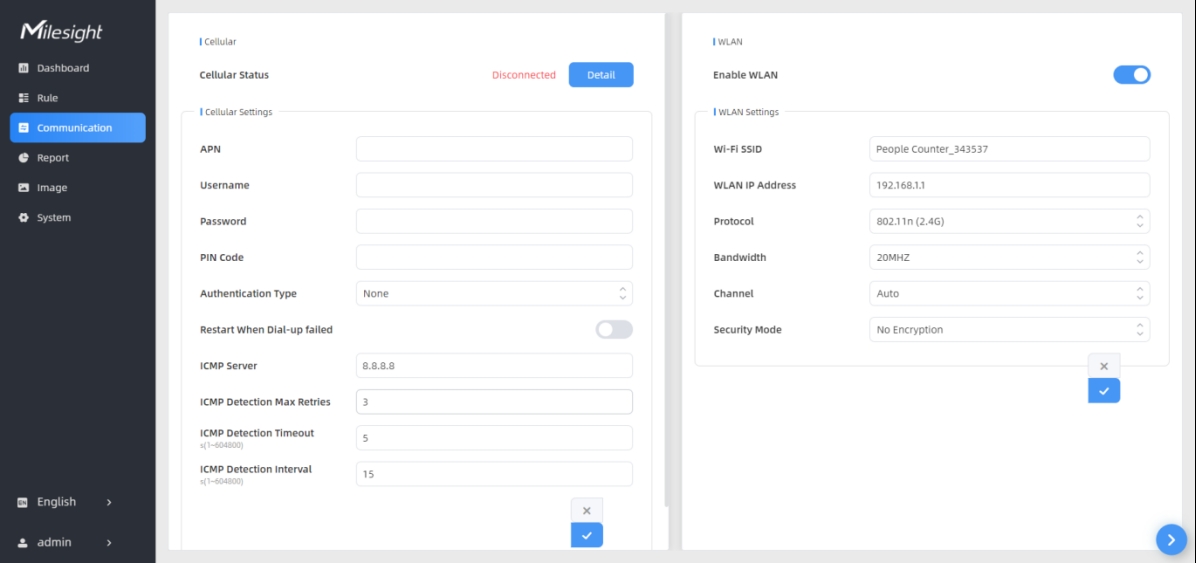

Network Configuration
| Parameters | Description | |
|---|---|---|
| Cellular | Cellular Status |
Display the connection status of the network, including “connect” and “disconnect”. You can also click “Detail” button to view the cellular status. |
| Cellular Settings | APN | Enter the Access Point Name for cellular dial-up connection provided by local ISP. The max length is 31 characters. |
| Username | Enter the username for cellular dial-up connection provided by local ISP. The max length is 31 characters. | |
| Password | Enter the password for cellular dial-up connection provided by local ISP. The max length is 31 characters. | |
| PIN Code | Enter a 4-8 characters PIN code to unlock the SIM. | |
| Authentication Type | Select the Authentication Type. None, PAP, CHAP, PAP and CHAP are optional. | |
| Roaming | Click to enable the Roaming. | |
| Restart When Dial-up Failed | Enable automatic device restart when multiple dial-up failed. | |
| ICMP Server | Configure the IP address of the ICMP detection server. | |
| ICMP Detection Max Retries | Set the maximum number of retries when ICMP detection failed. | |
| ICMP Detection Timeout | Configure ICMP detection timeout. | |
| ICMP Detection Interval | Configure ICMP detection interval. | |
Cellular Status
| Parameters | Description | |
|---|---|---|
| Cellular Status | Refresh | Click this button to manually refresh the above status. |
| Modem Status | Show the corresponding detection
status of the module and SIM card.
|
|
| Model | Show the model name of the cellular module | |
| Version | Show the version of the cellular module. | |
| Signal Level | Show the current signal strength of the network. | |
| Register Status | Show the connection status of the network, including “connect” and “disconnect”. | |
| IMEI | Show the IMEI of the module. | |
| IMSI | Show IMSI of the SIM card. | |
| ICCID | Show ICCID of the SIM card. | |
| ISP | Show the network provider which the
SIM card registers on. Note: It will display
"-" when the SIM card is not inserted or not
recognized. |
|
| Network Type | Show the connected network type,
such as LTE and 3G. Note: It will display "-"
when the device is not connected to network. |
|
| PLMN ID | Show the current PLMNID, including MCC, MNC, LAC, and Cell ID. | |
| LAC | Show the location code of the SIM
card. Note: It will display "-" when the
SIM card is not inserted or not recognized. |
|
| Cell ID | Show the Cell ID of the SIM card
location. Note: It will display "-" when
the SIM card is not inserted or not recognized. |
|
| Network Status | Show the Network Status, IP Address, Netmask, Gateway and DNS Address of the current network. If the SIM card is not inserted or not recognized, it will display 0.0.0.0. | |
| IP Address | ||
| Netmask | ||
| Gateway | ||
| DNS | ||
| Connection Duration | Show the cellular dial-up connection duration. | |

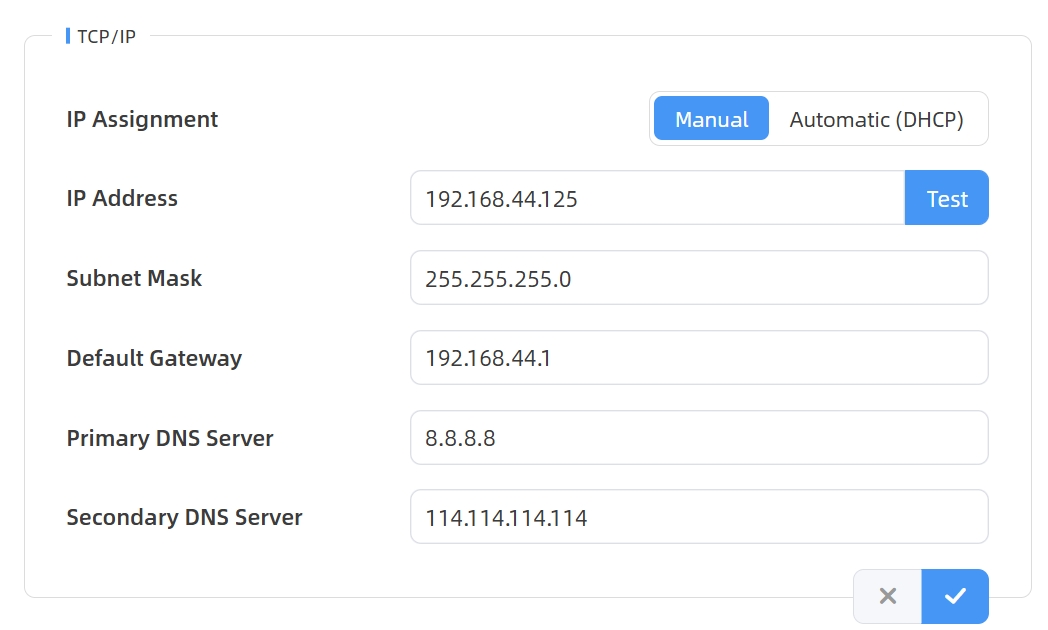

TCP/IP
The device use Ethernet for data transmission and multi-device stitching.
For cellular version, data reporting is depended on the current network. When cellular network and Ethernet are all available, data reporting prioritizes the cellular network.
| Parameters | Description |
|---|---|
| IP Assignment | Manual or Automatic (DHCP) is optional. |
| IP Address | Set the IPv4 address of the Ethernet port, the default IP is 192.168.5.220. |
| Test | Click to test if the IP is conflicting. |
| Subnet Mask | Set the Netmask for the Ethernet port. |
| Default Gateway | Set the gateway for the Ethernet port's IPv4 address. |
| Primary DNS Server | Set the primary IPv4 DNS server. |
| Secondary DNS Server | Set the secondary IPv4 DNS server. |

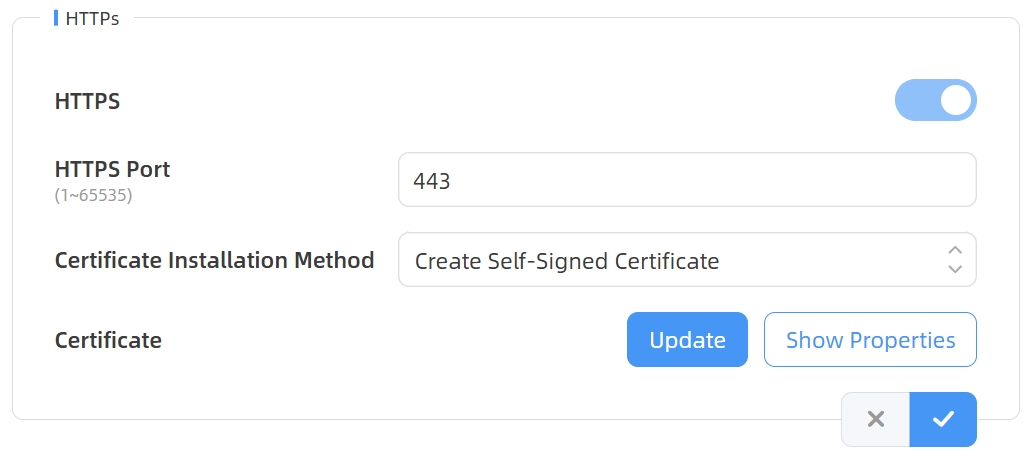

HTTPs (PoE Version Only)
| Parameters | Description |
|---|---|
| HTTPS | Start or stop using HTTPS. |
| HTTPS Port | Web GUI login port via HTTPS, the default is 443. |
| Certificate Installation Method |
Create Self-signed Certificate: upload the “.pem/.crt/.cer” format certificates issued by awarding organizations for verification. Direct Installation Certificate: upload the custom CA certificate, client certificate and secret key for verification. |
| Certificate | Create the SSL certificate. |

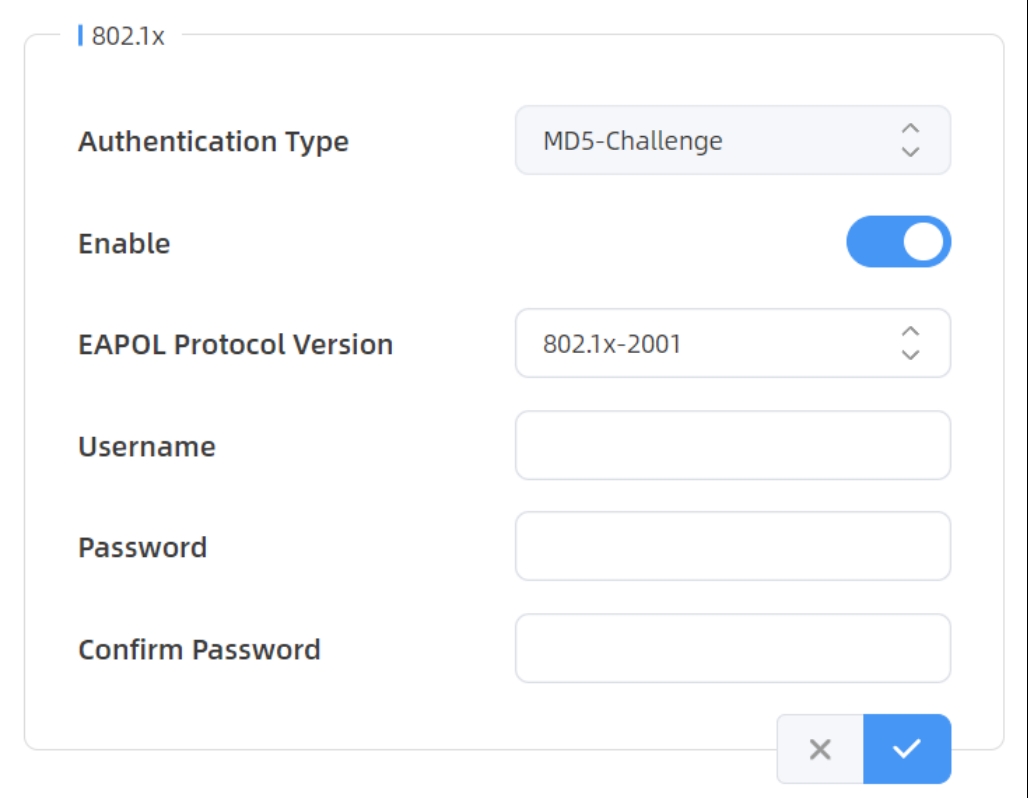

802.1x Protocol (PoE Version Only)
The IEEE 802.1x is an authentication protocol to allow access to networks with the use of RADIUS server.
| Parameters | Description |
|---|---|
| Authentication Type | It’s fixed as MD5-Challenge. |
| Enable | Enable or disable 802.1x authentication. |
| EAPOL Protocol Version | 802.1x-2001 or 802.1x-2004 is optional. |
| Username | Set the username for 802.1x authentication. |
| Password | Set the password for 802.1x authentication. |
| Confirm Password | Enter the password again. |

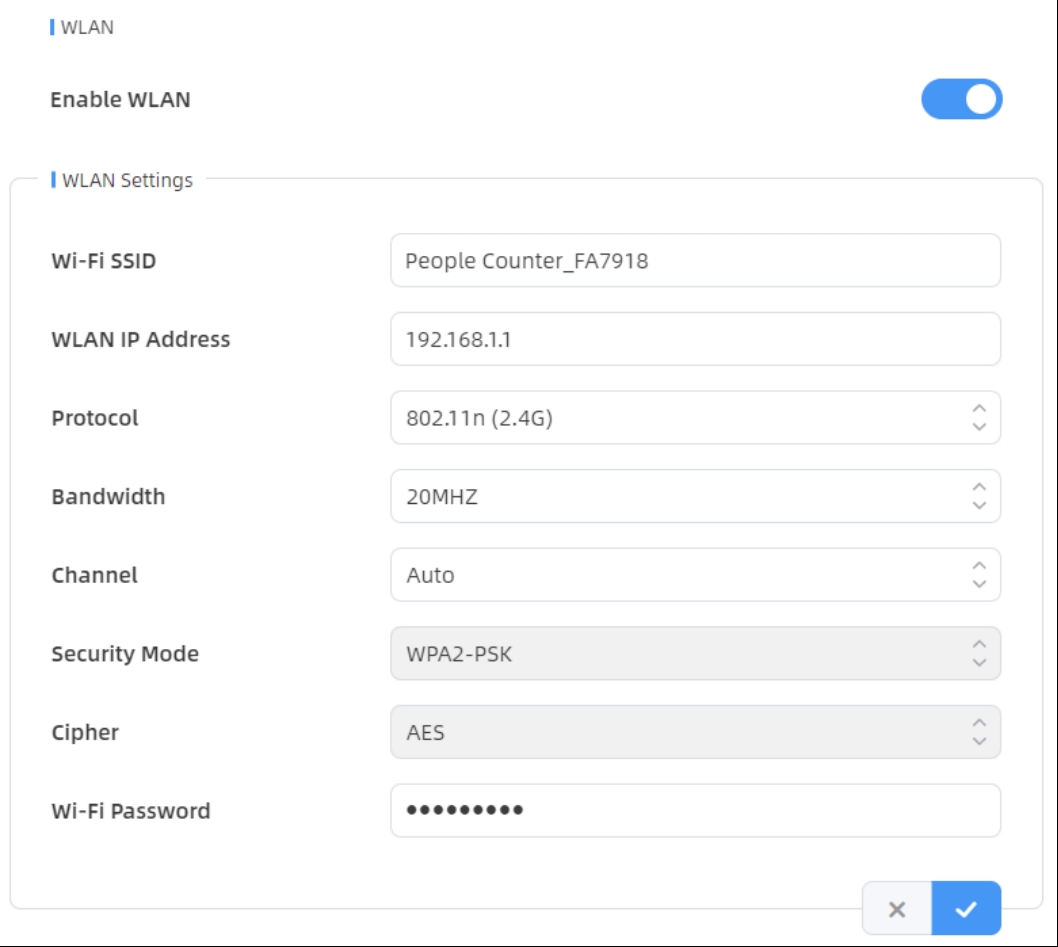

WLAN
| Parameters | Description |
|---|---|
| Enable WLAN | Enable or disable Wi-Fi feature. If disabled, users can use button to enable it. |
| Wi-Fi SSID | The unique name for this device Wi-Fi access point, defined as People Counter_xxxxxx (can be found on the device label). |
| WLAN IP Address | Configure WLAN IP address for web access, the default IP address is 192.168.1.1. |
| Protocol | 802.11g (2.4 GHz) and 802.11n (2.4 GHz) are optional. |
| Bandwidth | 20 MHz or 40 MHz are optional. |
| Channel | Select the wireless channel. Auto, 1,...11 are optional. |
| Security Mode | Fixed is WPA2-PSK. |
| Cipher | Fixed is AES . |
| Wi-Fi Password | Customize the password, 8-63 characters, including numbers, lowercase letters, uppercase letters and special characters. |
