Validation

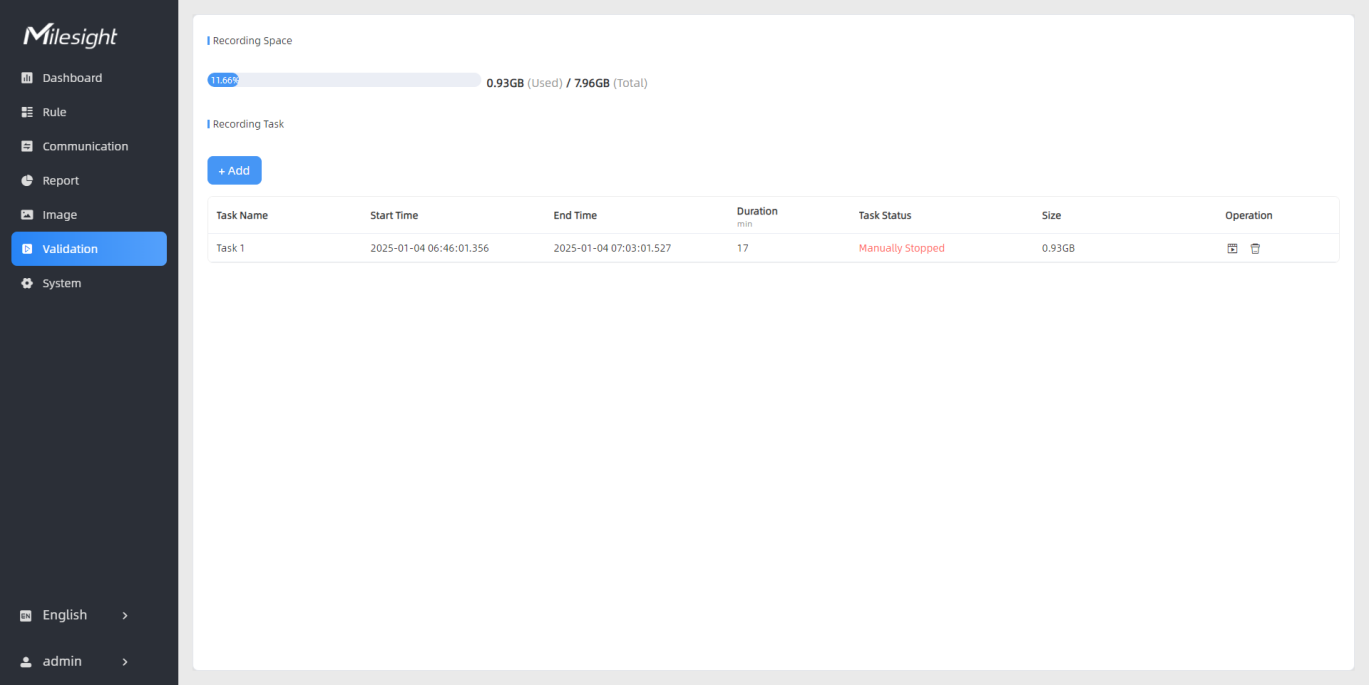

Video validation function can assist users in verifying the accuracy of people counting by setting up a video task of recording.
| Parameters | Description |
|---|---|
| Task Name | Show the task name. |
| Start/End Time | Show the start time and end time of this video. |
| Duration | Show the length of the video. |
| Task Status | Show the video task status. |
| Size | Show the video size. |
| Operation | Click to check the video details, stop recording or delete the task. |
 |
Click to add a video task. One device can add up to 50 tasks. |
| Parameters | Description |
|---|---|
| Task Name | Customize a name for this task. |
| Recording Mode | Record Now or Setting Time is optional. |
| Start Time | Set the start recording time. |
| Duration | Set the duration of the recording, the duration of all tasks should not be more than 60 minutes. |
Note:
- The setting time range of different tasks can not be overlap.
- Detection rules cannot be modified during the recording process.
- If the validation videos need to be played locally, please use the specialized player provided by Milesight: Milesight VS Player.

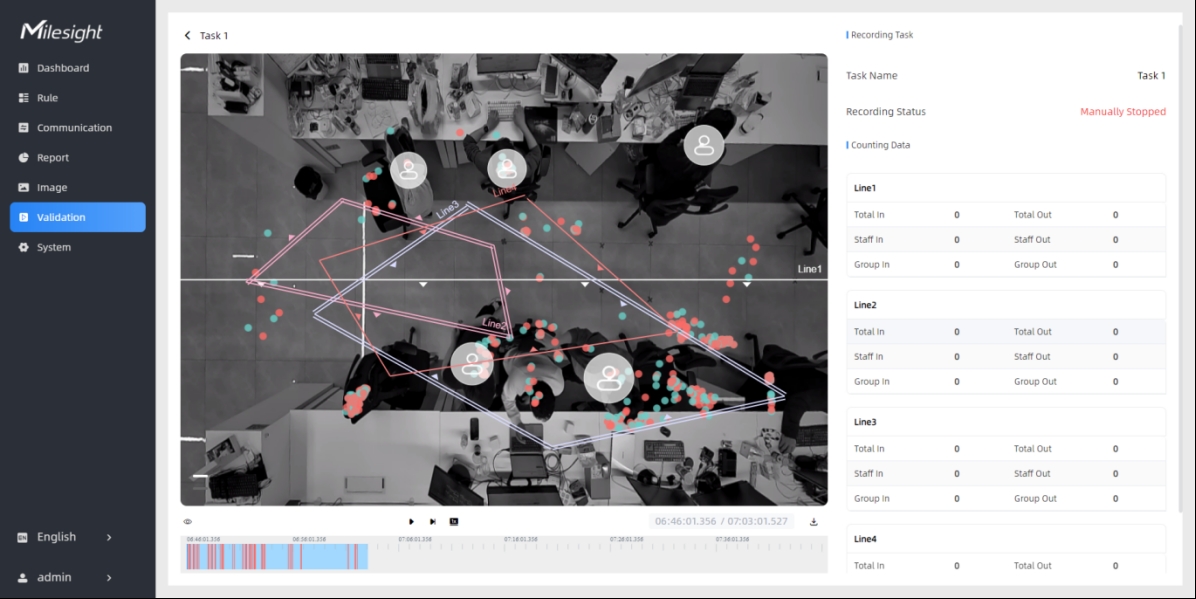

| Parameters | Description | |
|---|---|---|
 Edit Preview Layout |

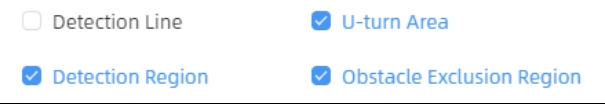

Visual Configuration | Show/Hide relevant rules in the recording footage. |
| AI Result |
Show/Hide track line in the recording footage. Real-time Track Line: real-time trajectory line of the targets Static Track Line: historical trajectory line of the targets |
|
| Other | Show/Hide track points in the recording footage. | |
| Playback Button |  |
Rewind/Pause/Play/Forward (supports switching between 0.5x, 1x, 2x, and 4x playback speed). |
 |
Start time and end time of the recording. | |
 |
Download video stream footage to check problem. | |
Note: The playback progress bar of video stream footage highlights the
video frame where the data changes.
