Configure Temperature Threshold Parameters

This section describes how to configure temperature threshold parameters.

Steps:
  1. On the homepage of ToolBox, click Setting to enter the Setting page.
  2. On the top bar, select Device tab.

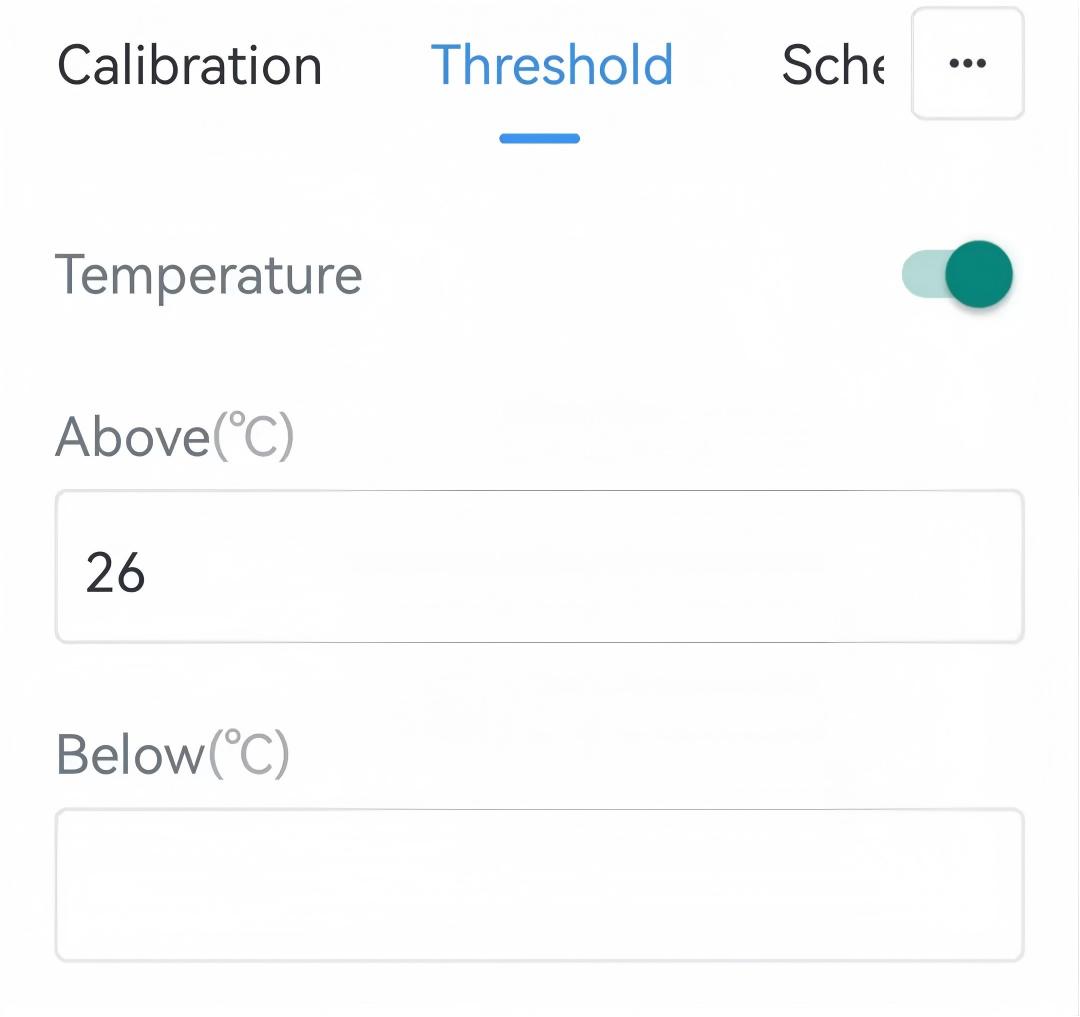

  3. In the Threshold page, enable Temperature and enter at least one threshold value. The following page is displayed.

  4. Click Write in the lower right corner, and put the NFC detection area of the phone close to the NFC antenna of device. If the configuration succeeds, the following page is displayed.

Result:

Above Threshold: When the ambient temperature exceeds the Above threshold value, the device immediately sends a threshold alarm packet; when the ambient temperature falls to the Above threshold value minus 1, the device sends an alarm release packet.

Below Threshold: When the ambient temperature falls below the Below threshold value, the device immediately sends a threshold alarm packet; when the ambient temperature exceeds the Below threshold value plus 1, the device sends an alarm release packet.
