Cellular

Prerequisites

• The gateway is equipped with cellular capabilities.
• The supported frequencies of the SIM card matches the device model.
• Ensure the SIM card has sufficient balance and works properly in other devices.
• Ensure the device has installed the SIM card.
• Gather SIM information from the cellular operator.

Basic Settings

1. On the left bar, select Network page.




2. On the top bar, select Cellular tab.

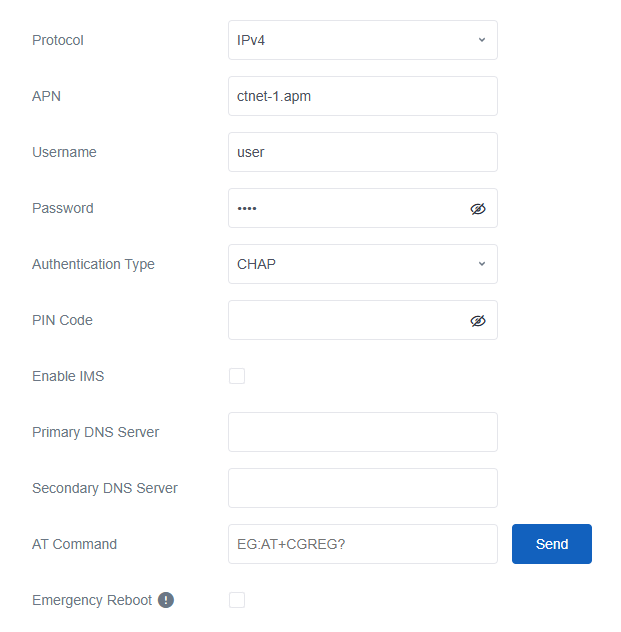

3. Configure the cellular settings as required.





   Parameter	Description
   Protocol	Select IPv4 or IPv4/IPv6.
   APN	The Access Point Name for cellular registration and defining which external network to connect. Only letters, digits, "-" and "." are allowed, and the first character must not be "_" or ".". The maximum length is 63 characters.
   Username	The username for cellular dial-up connection provided by local ISP.
   Password	The password for cellular dial-up connection provided by local ISP.
   PIN Code	A 4-8 characters PIN code to unlock the SIM.
   Enable IMS	Enable or disable IMS feature. This parameter is only available for -L08GL model.
   Primary DNS Server	Customize the cellular primary DNS server. If left blank, the device will use operator's settings.
   Secondary DNS Server	Customize the cellular secondary DNS server. If left blank, the device will use operator's settings.
   AT Command	Send AT Command to get cellular information or configure advanced settings

4. Click Save & Apply to save the settings.
5. Navigate to Status > Cellular page to check if the register status is Ready and if there is cellular IP address.
6. Configure Link Backup settings to select cellular interface as network link.
