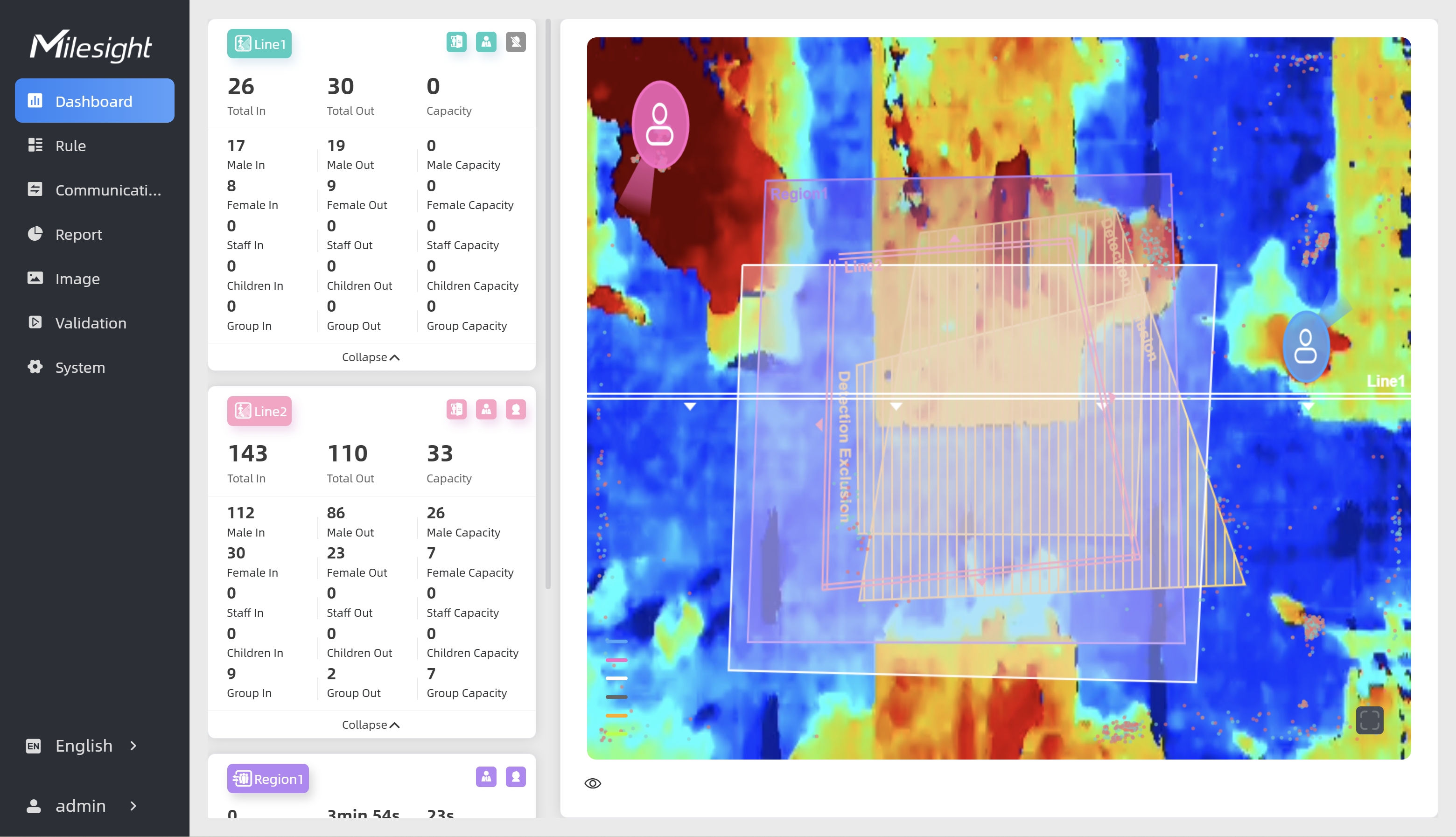

Dashboard

Parameters	Description
	Hide Capacity: Hide the total count data capacity; Children Excluded: Exclude children data from statistical data. Staff Excluded: Exclude staff data from statistical data.
Reset Count	Clear all accumulated entrance and exit people counting values.
Digital Output	Click to output high level signal from alarm out interface when Manual DO event is enabled. Alarm Output: dry contact
	Click to edit preview layout to show or hide the lines, areas and track points as needed. Real-time Track Line: Show or hide the target's track line through the live view. Static Track Line: Show or hide the history of the target's track line in the live view. Supports up to 1000 historical tracks, which will disappear when you refresh the page. Note: If some of the options are not shown, please check if the corresponding function of the rule is enabled.
	Show the property of targets.

Hide Capacity: Hide the total count data capacity;

Children Excluded: Exclude children data from statistical data.

Staff Excluded: Exclude staff data from statistical data.

Reset Count

Clear all accumulated entrance and exit people counting values.

Digital Output

Click to output high level signal from alarm out interface when Manual DO event is enabled.

Alarm Output: dry contact

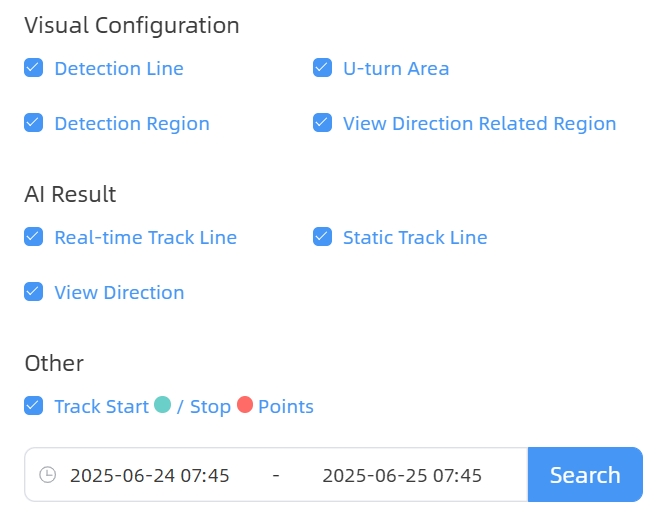

Click to edit preview layout to show or hide the lines, areas and track points as needed.

Real-time Track Line: Show or hide the target's track line through the live view.

Static Track Line: Show or hide the history of the target's track line in the live view. Supports up to 1000 historical tracks, which will disappear when you refresh the page.

Note: If some of the options are not shown, please check if the corresponding function of the rule is enabled.

Show the property of targets.
