Node Device Setting

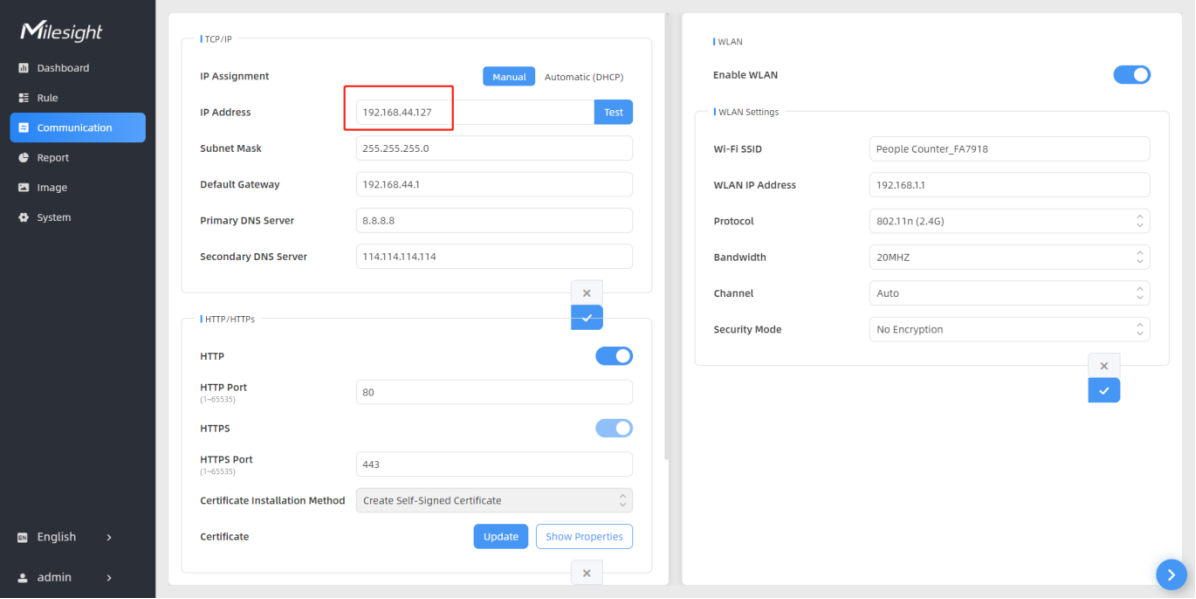

Step 1:Access the web GUI of the node device, ensure the IP address is on the same network as the master device, so that the master device can detect the node device.

Step 2: Select work mode as Node and wait for the device to reboot.

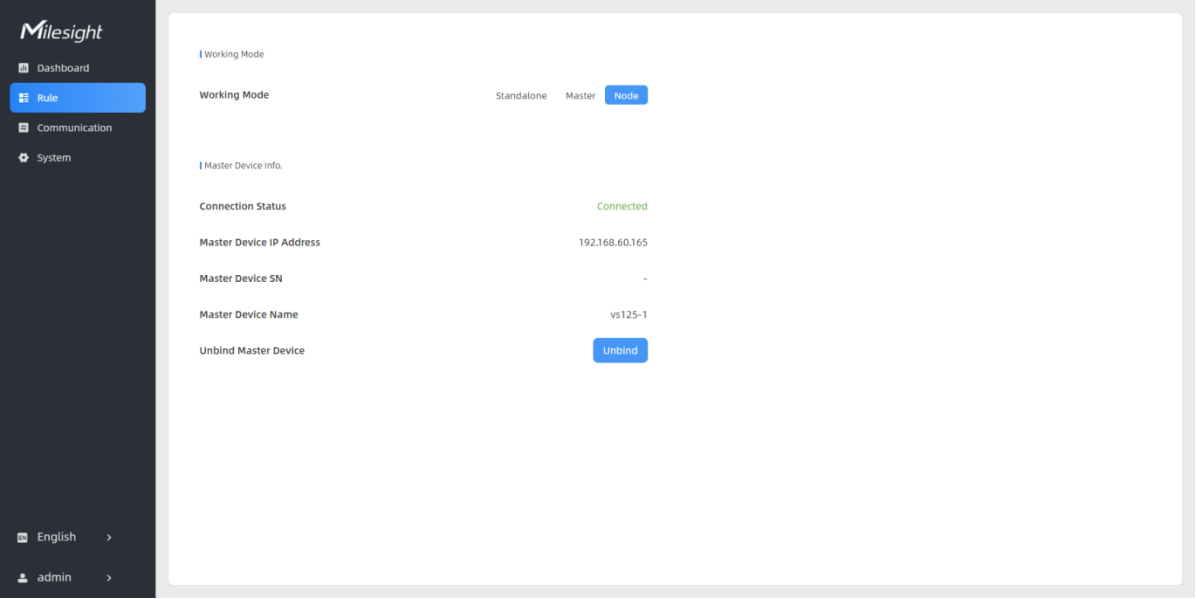

Below is an explanation of the page and parameters for the node devices after successful stitching:

Parameters	Description
Connection Status	Show the connection status between the node device and master device.
Master Device IP Address	Show master device’s IP address. When this IP address is under the same network with the node device, the node device can be bind to the master device.
Master Device SN	Show the master device’s serial number.
Master Device Name	Show master device name.
Unbind Master Device	Click Unbind to release the connection status, this device will be deleted from the list of the master device.
